Fuel Injection System, Components

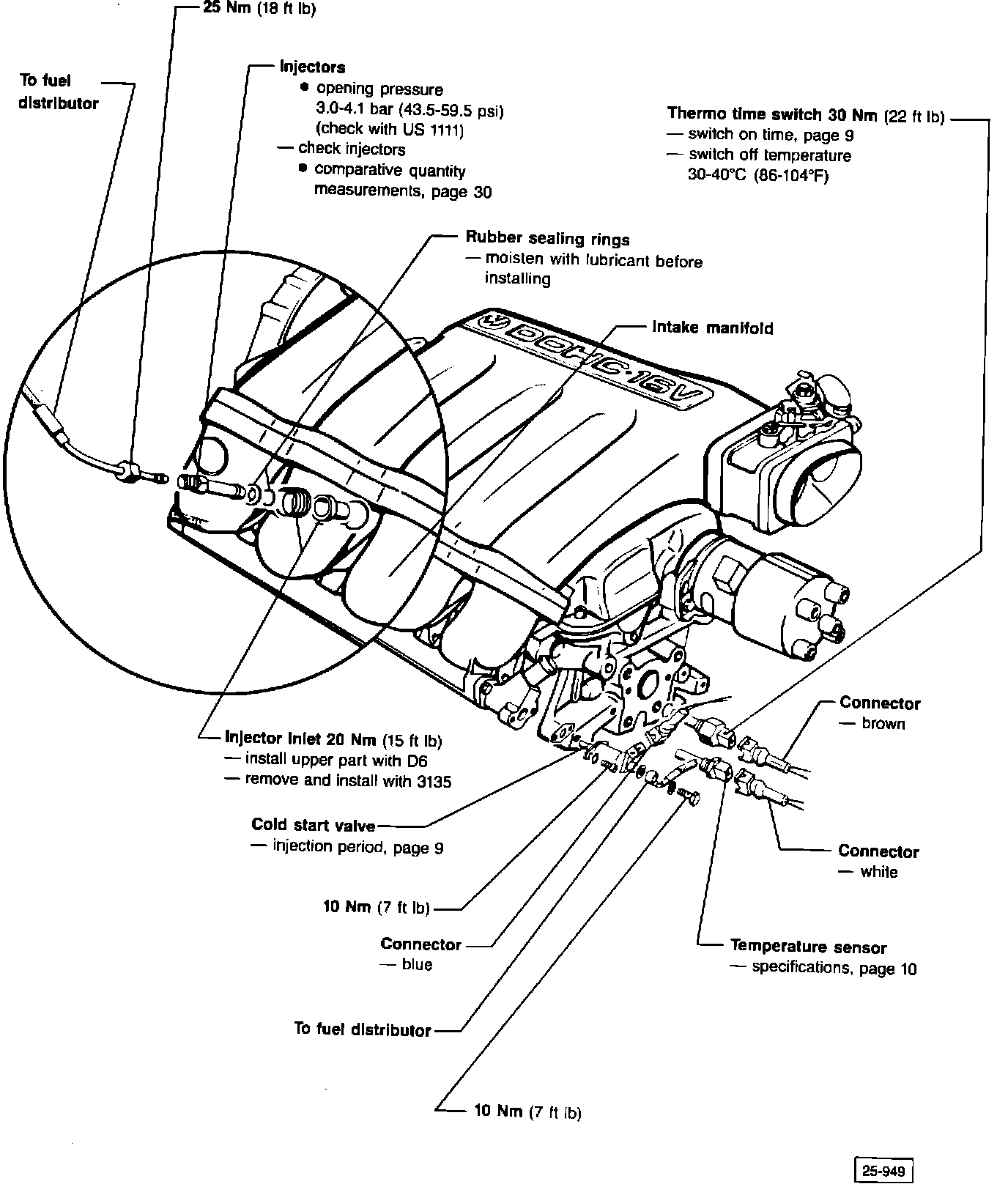

MANIFOLD AND INJECTORS:

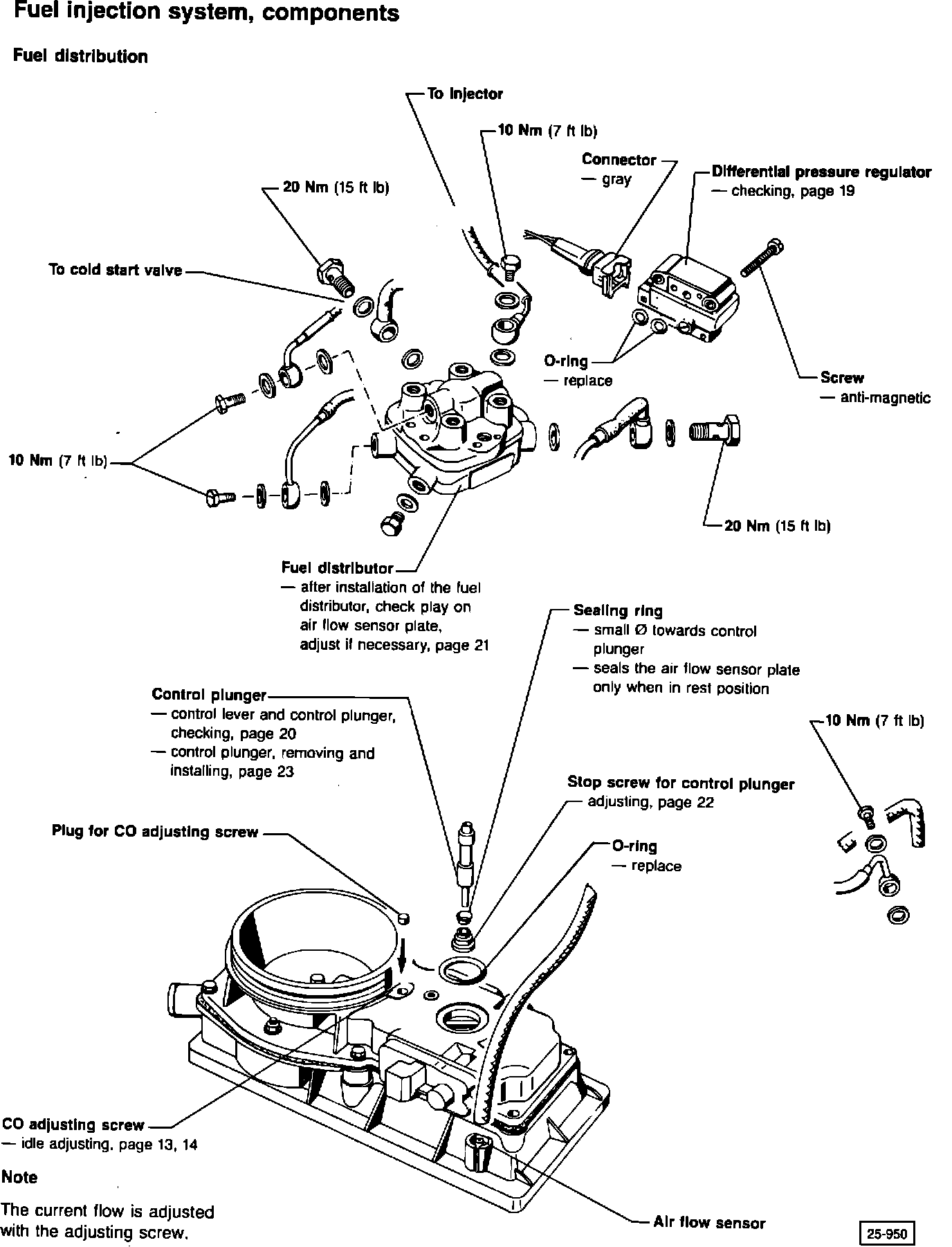

FUEL DISTRIBUTION:

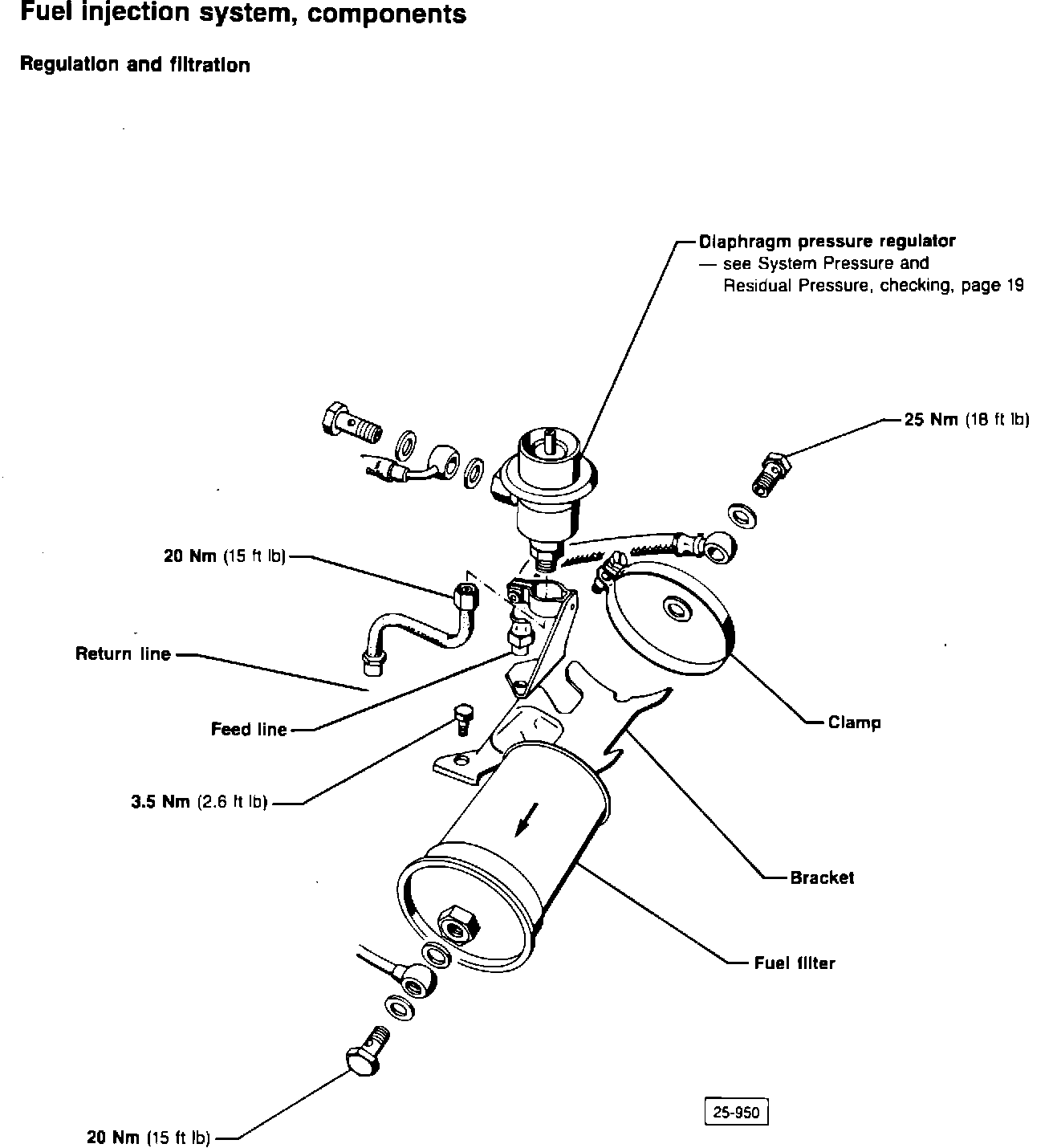

REGULATION AND FILTRATION:

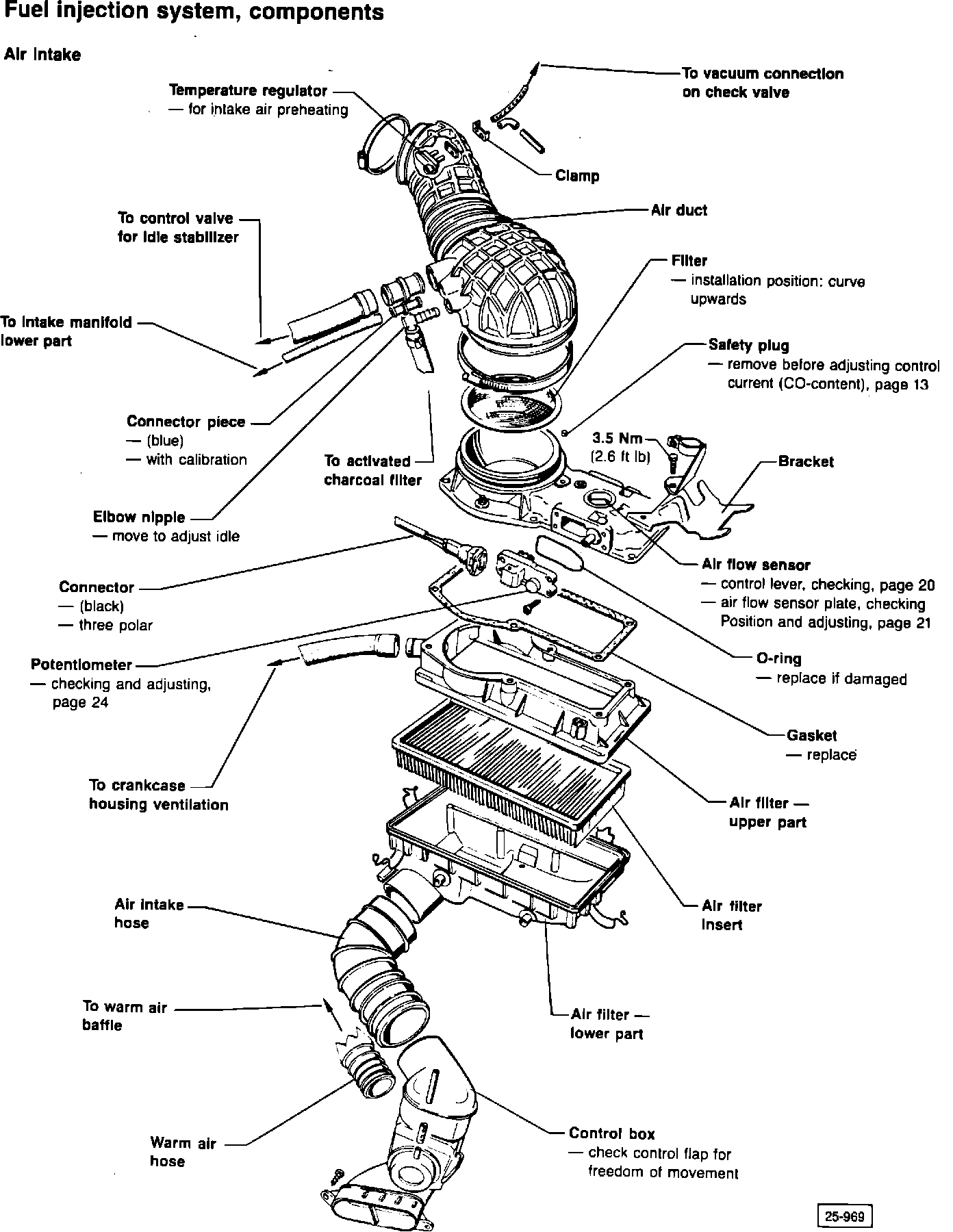

AIR INTAKE:

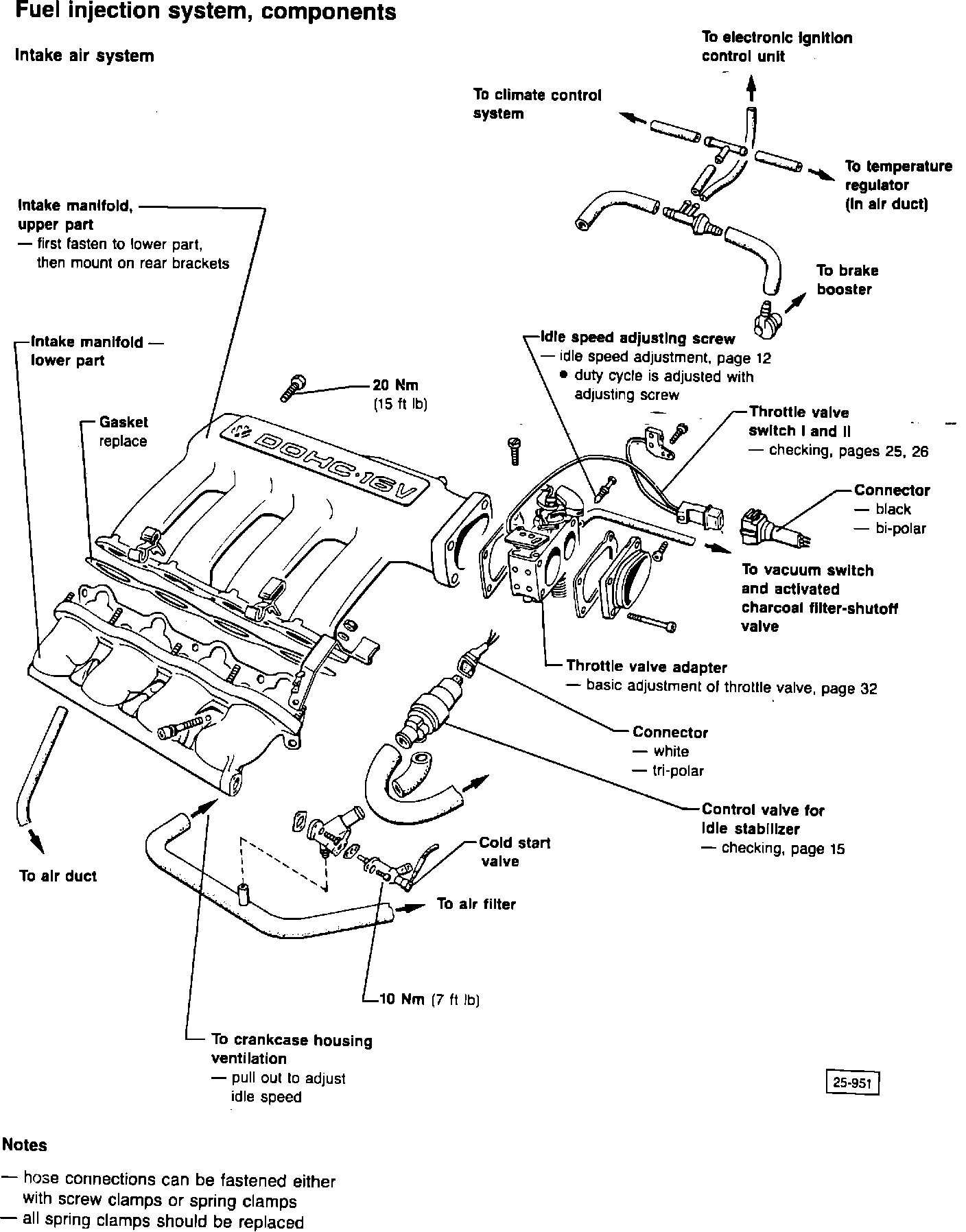

INTAKE AIR SYSTEM:

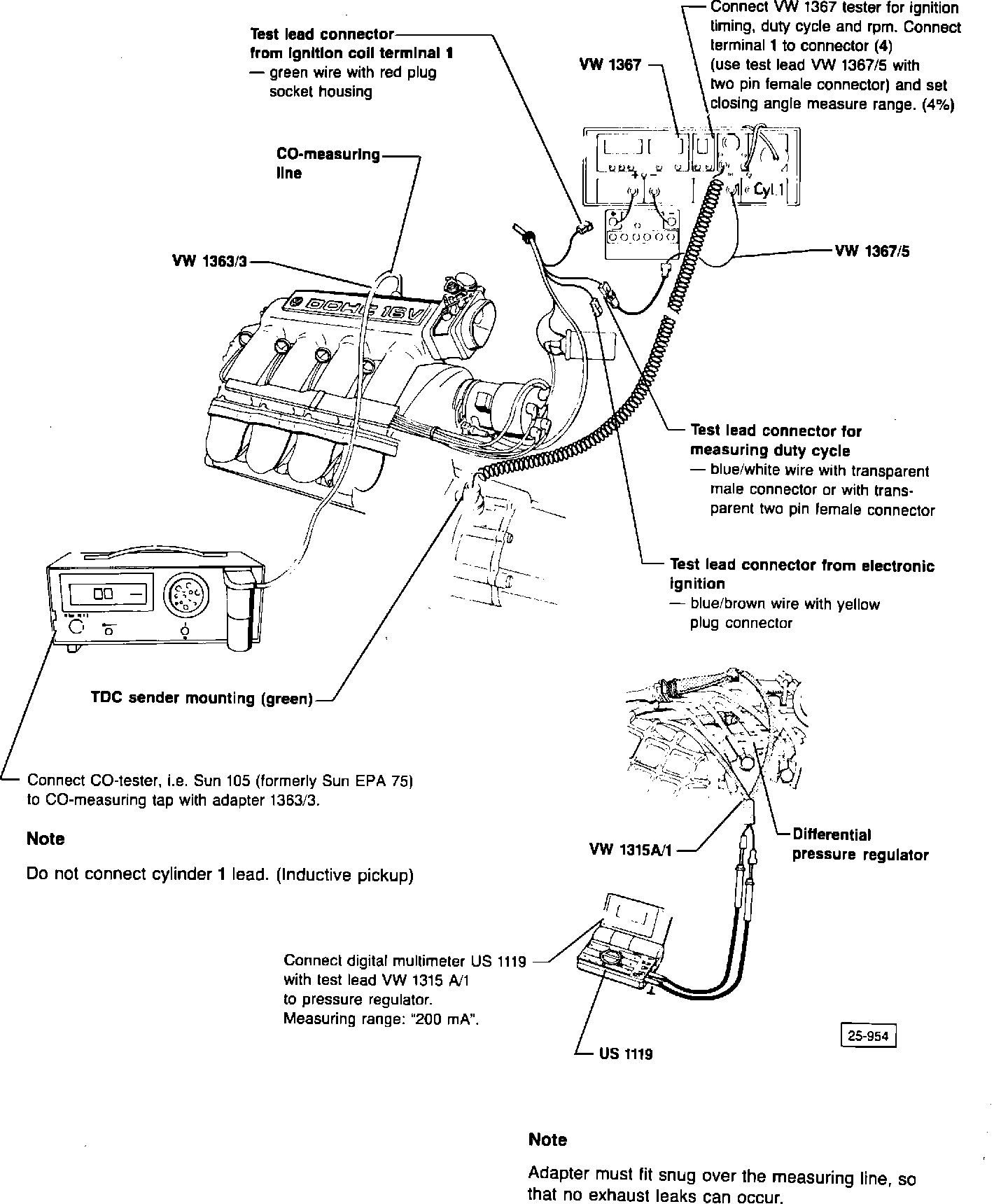

Test equipment, connecting
