Clutch Cable: Installation

To install new cable, reverse removal procedure and adjust pedal free play.

NOTE: If new clutch cable has been installed, make sure to recheck clutch pedal free play after 300 miles.

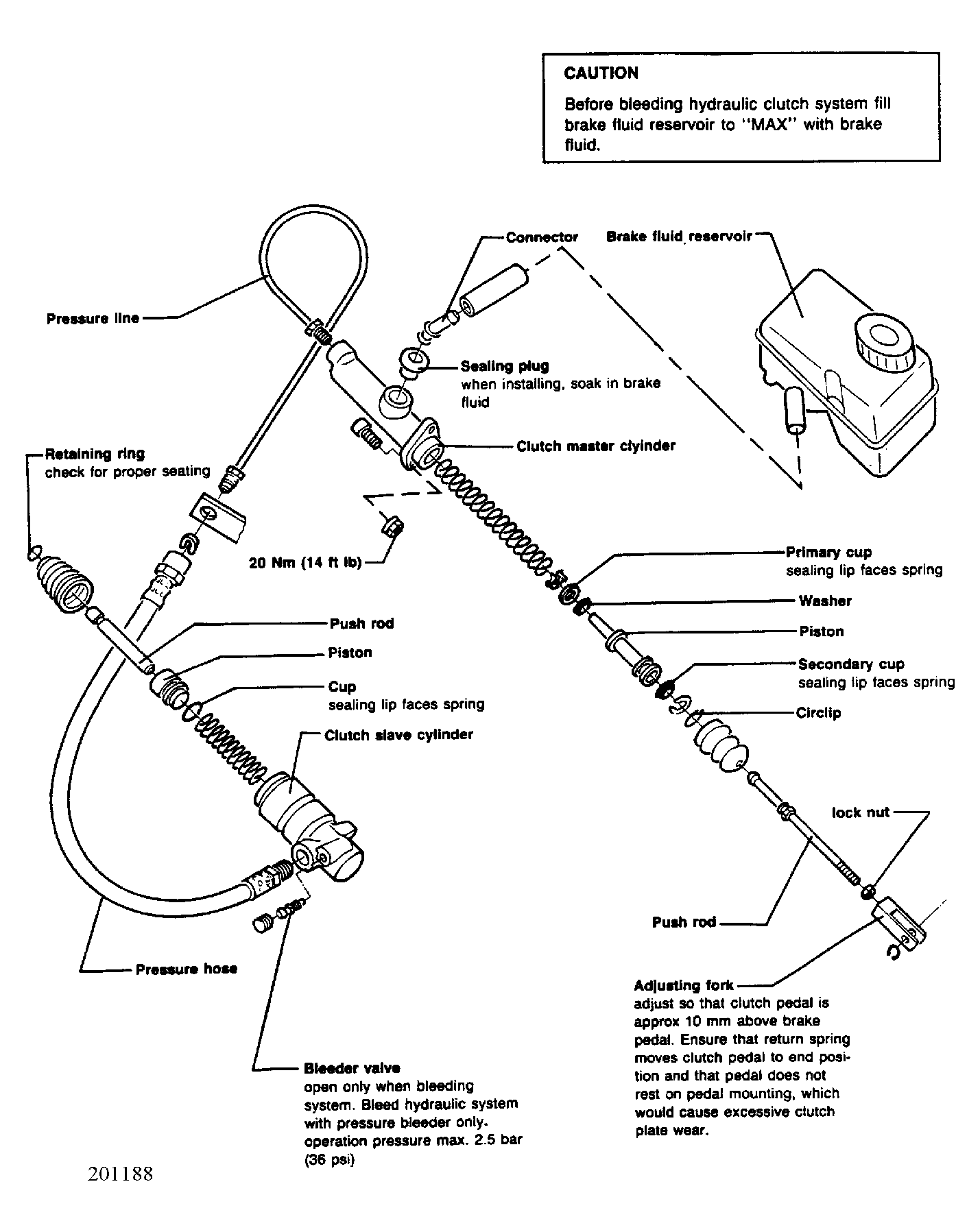

Fig 1: Exploded View of Hydraulic Clutch Assembly
