Ignition Timing

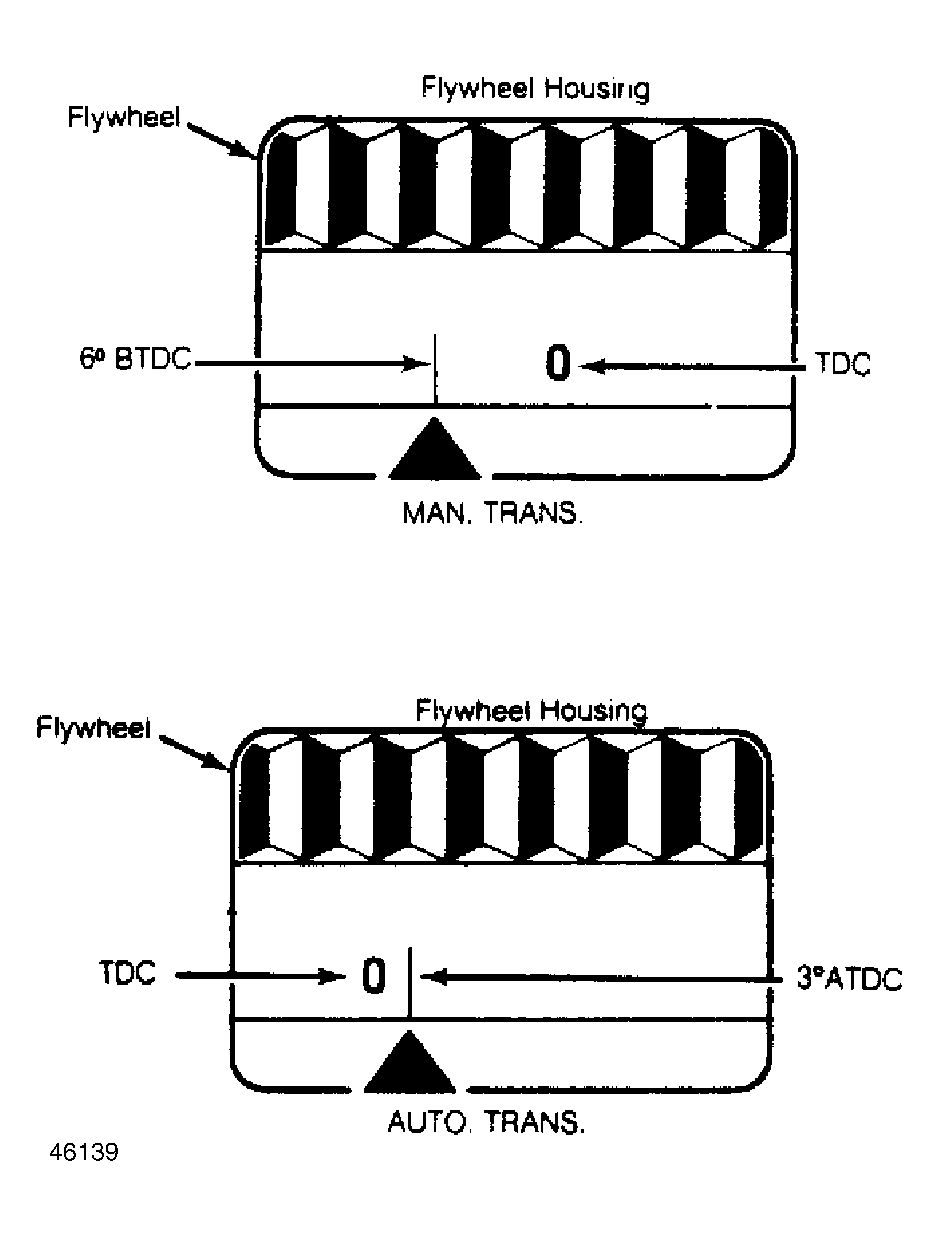

Ignition timing is nonadjustable. With engine at TDC of ignition stroke, rotor aperture alignment mark must align with reference mark on distributor housing.
IGNITION TIMING (DEGREES BTDC @ RPM)
| Application |
Setting |
| All Models |
6 @ 750-850 |
Courtesy of VOLKSWAGEN UNITED STATES, INC.
