Vacuum Hose Layout, Late Version

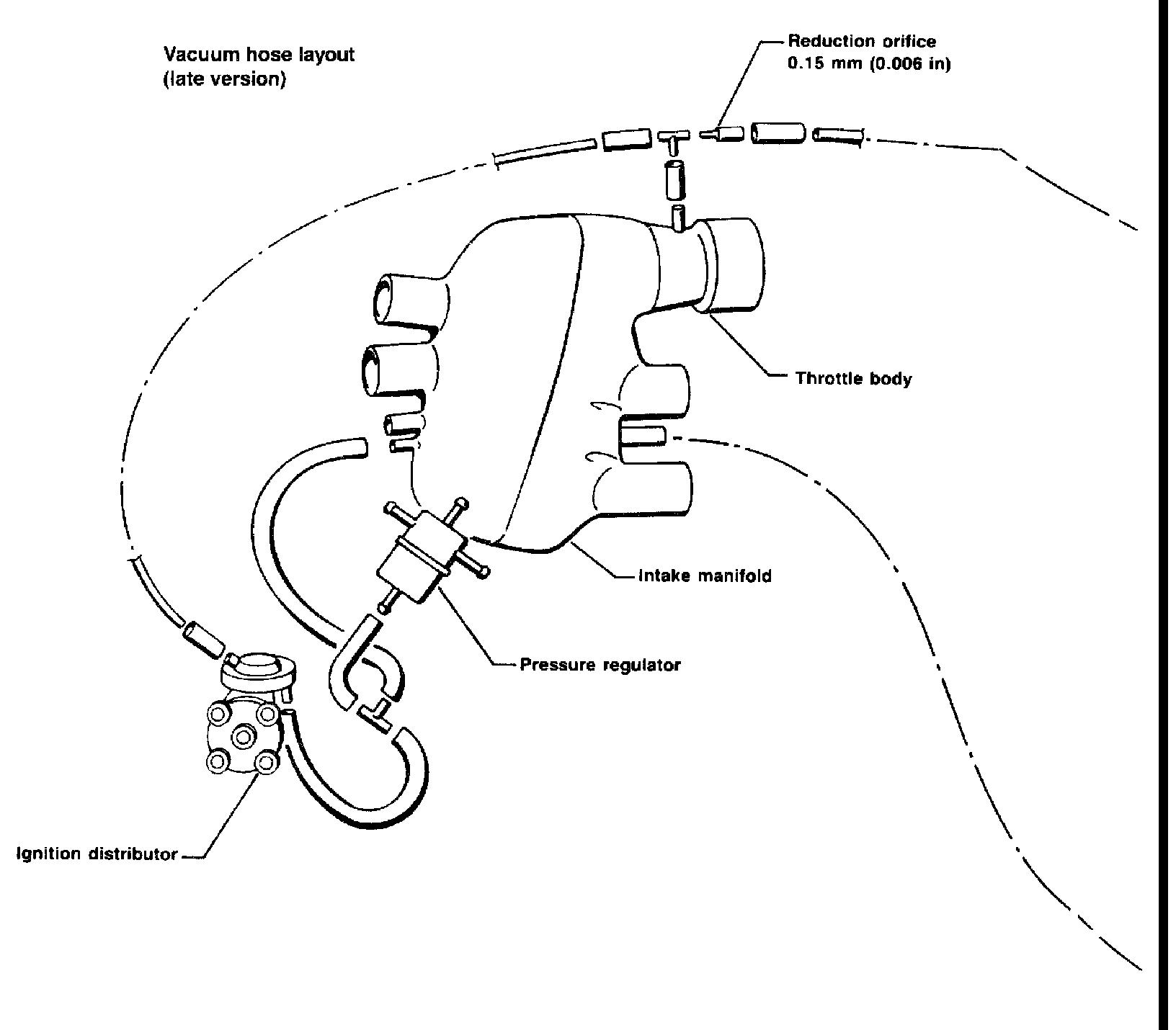

Late Version, Vacuum Hose Layout Part 1:

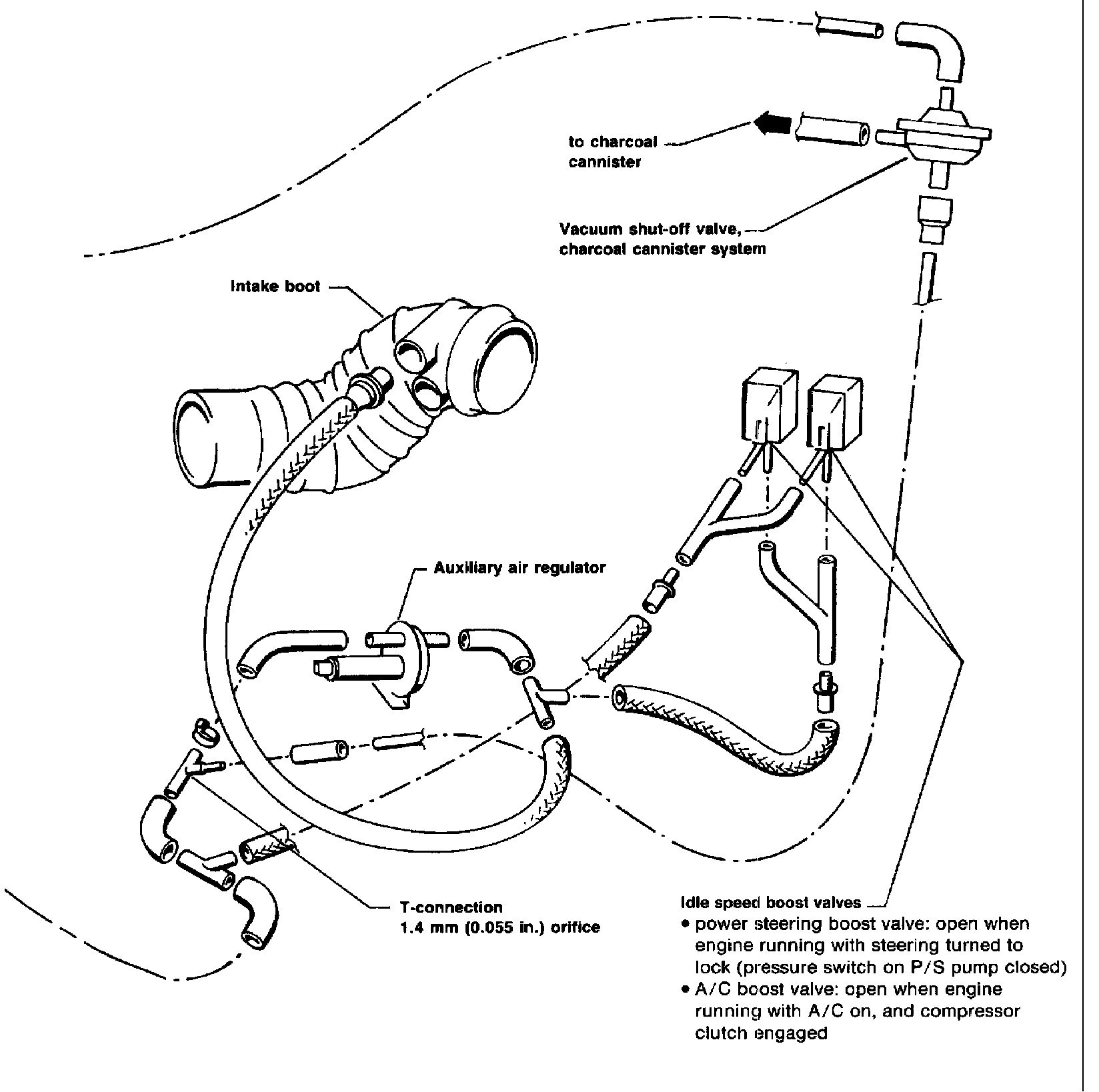

Late Version, Vacuum Hose Layout Part 2:
