AFC System Check


AFC System check with volt/ohmmeter

Note: Entire AFC system can be checked electrically at disconnected multi-pin connector of control unit

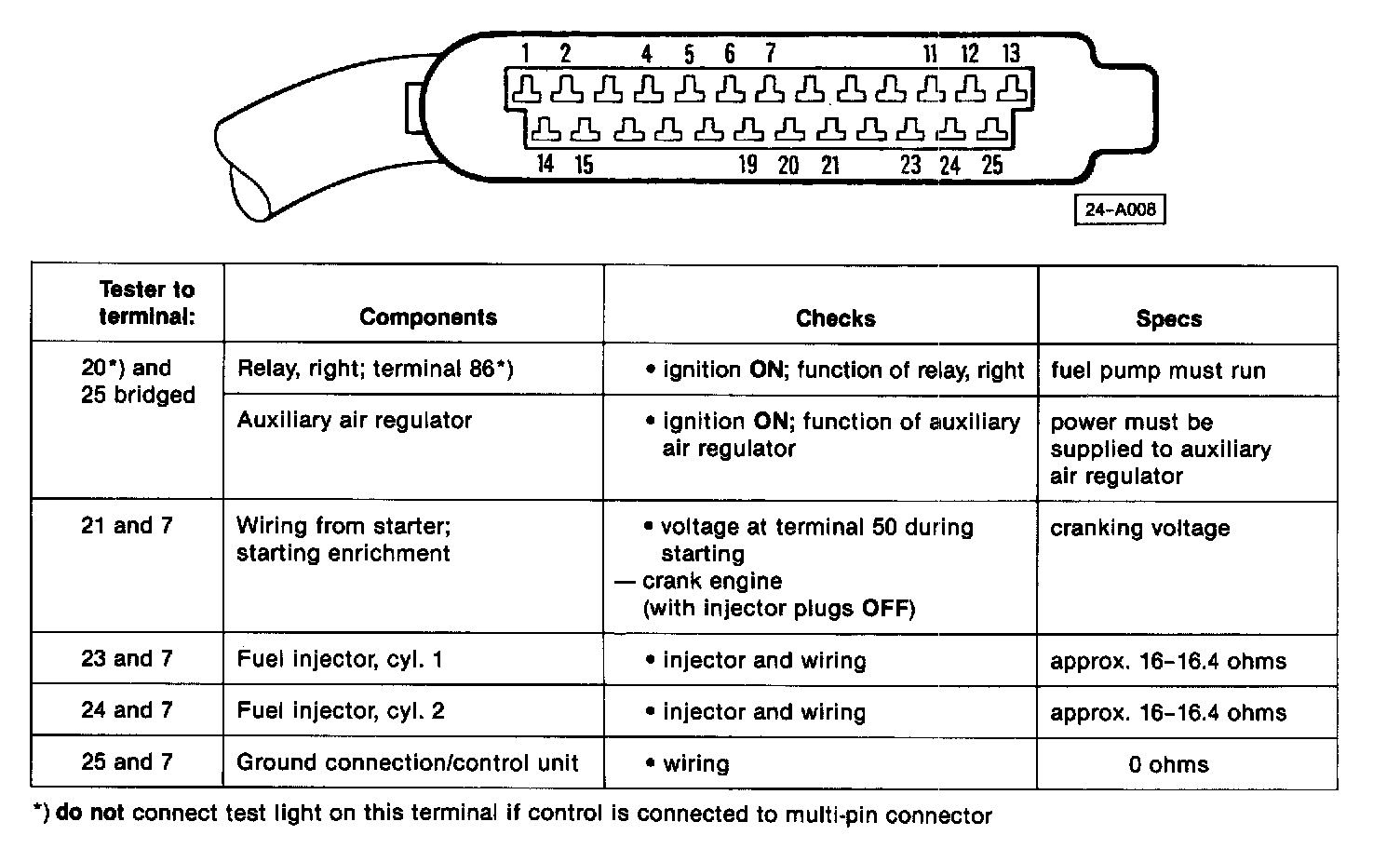

Digijet Test Chart 1:

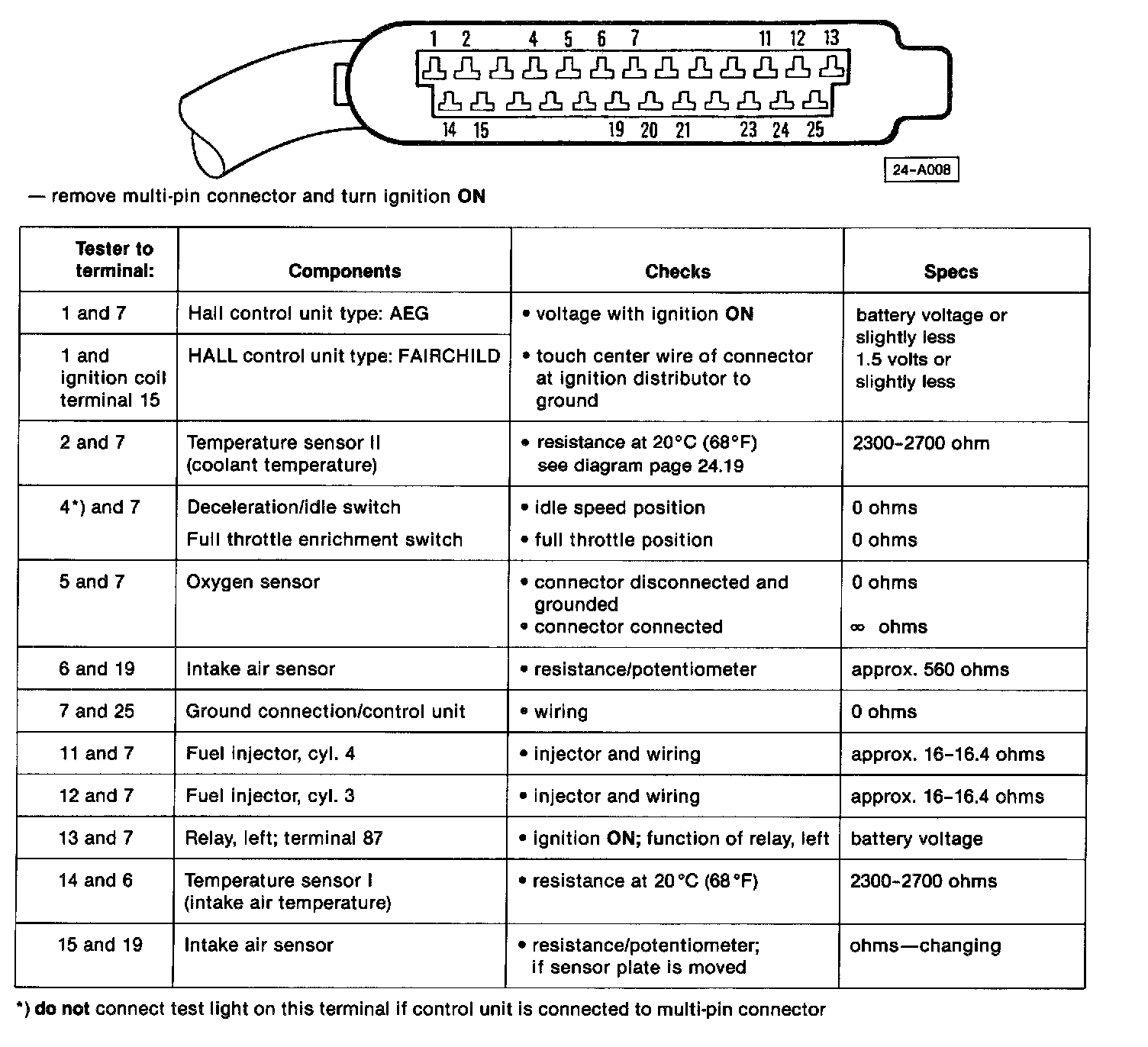

Digijet Test Chart 2:
