Engine Torque Specifications
Cylinder Head Torque Sequence:
Cylinder head tightening torque:
^ 1st sequence 40 Nm (30 ft-lb)
.2nd sequence 60 Nm (43 ft-lb)
Final sequence additional 1/2 turn (180°)
Short Block Torque Specifications:

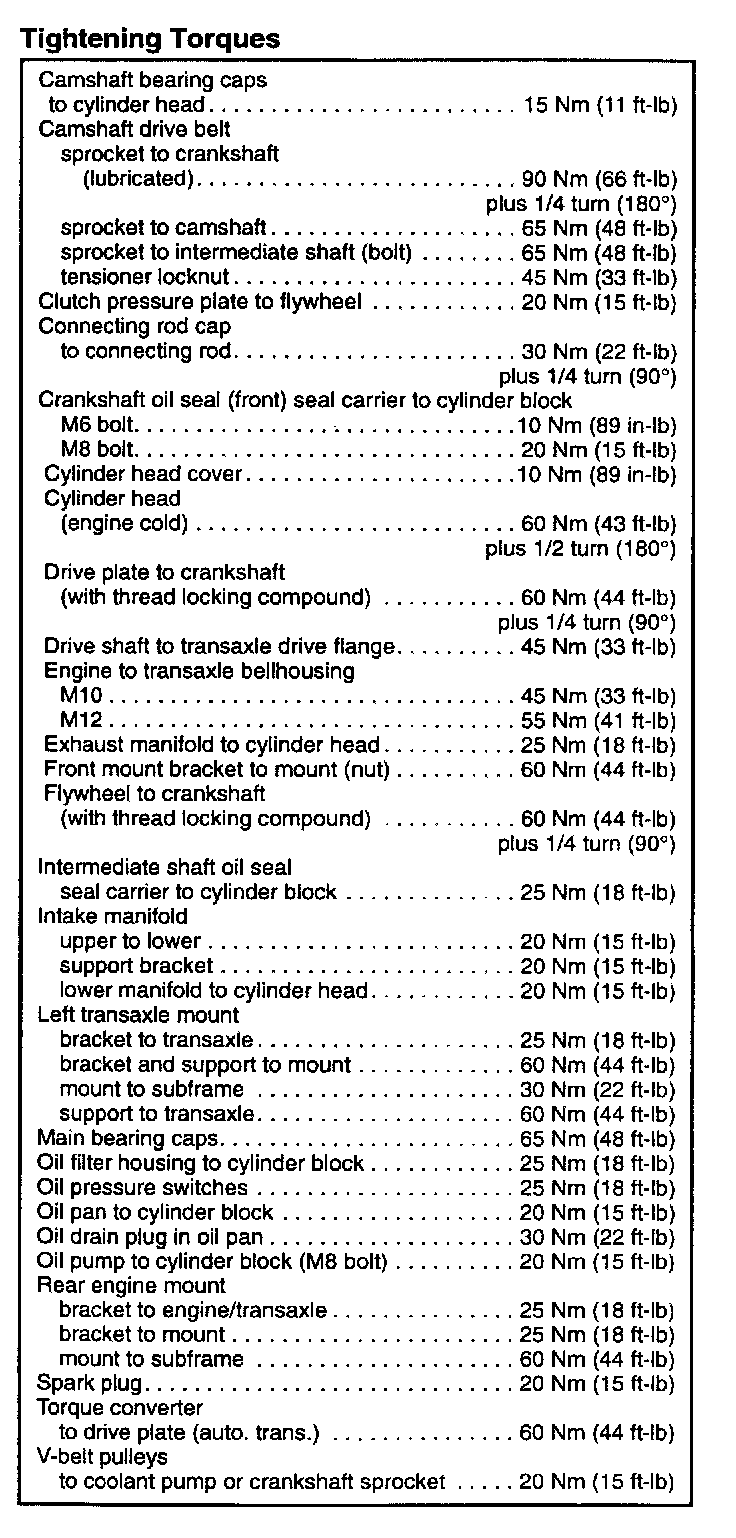

Engine Torque Specifications:
