Engine Specifications and Clearances

Engine Specifications

Valve Seat Dimensions (2.0L Engine Code 9A):





Piston/cylinder Diameter Specifications (2.0L 9A Engine):





Cylinder Bore Specifications:





Piston Diameter Specifications:





Connecting Rod Specifications 2.0L:





Piston Ring Specifications 2.0L:





Piston Ring End Gap:





Piston Ring Side Clearance:





Piston Ring Installation Specifications:





Crankshaft Journal Specifications 2.0L:

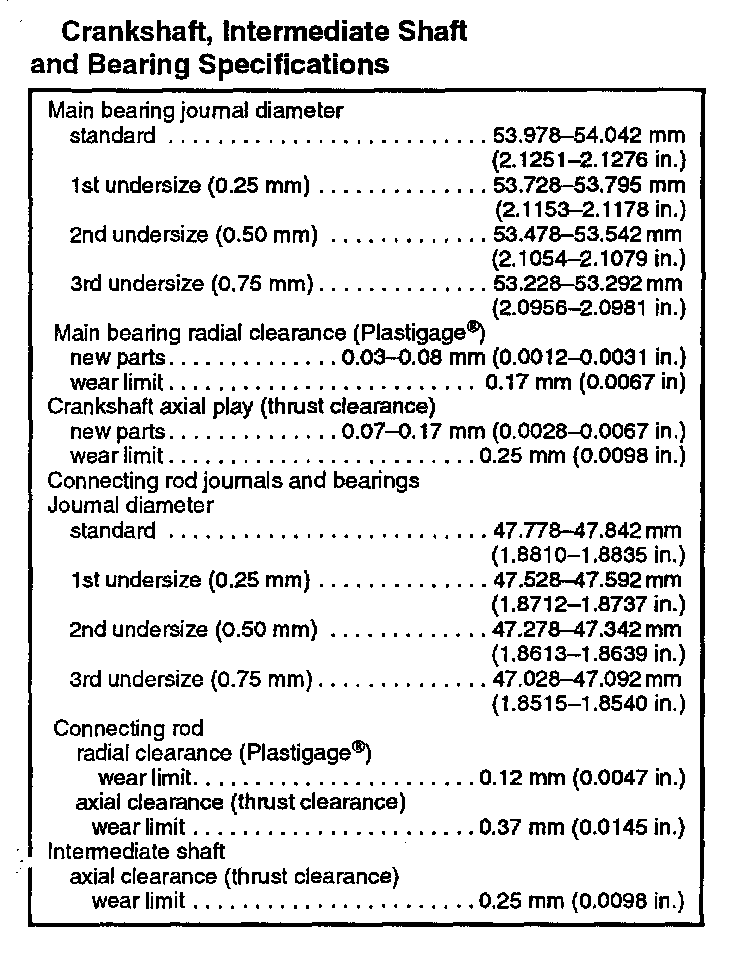

Crankshaft/intermediate Shaft Specifications 2.0L:





Camshaft/intermediate Shaft Specifications:

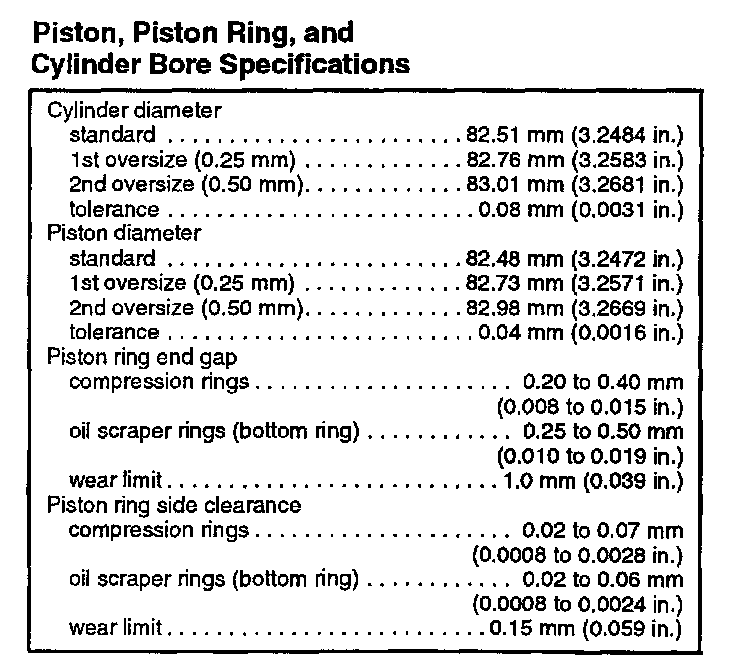

Piston,Ring And Bore Specifications:

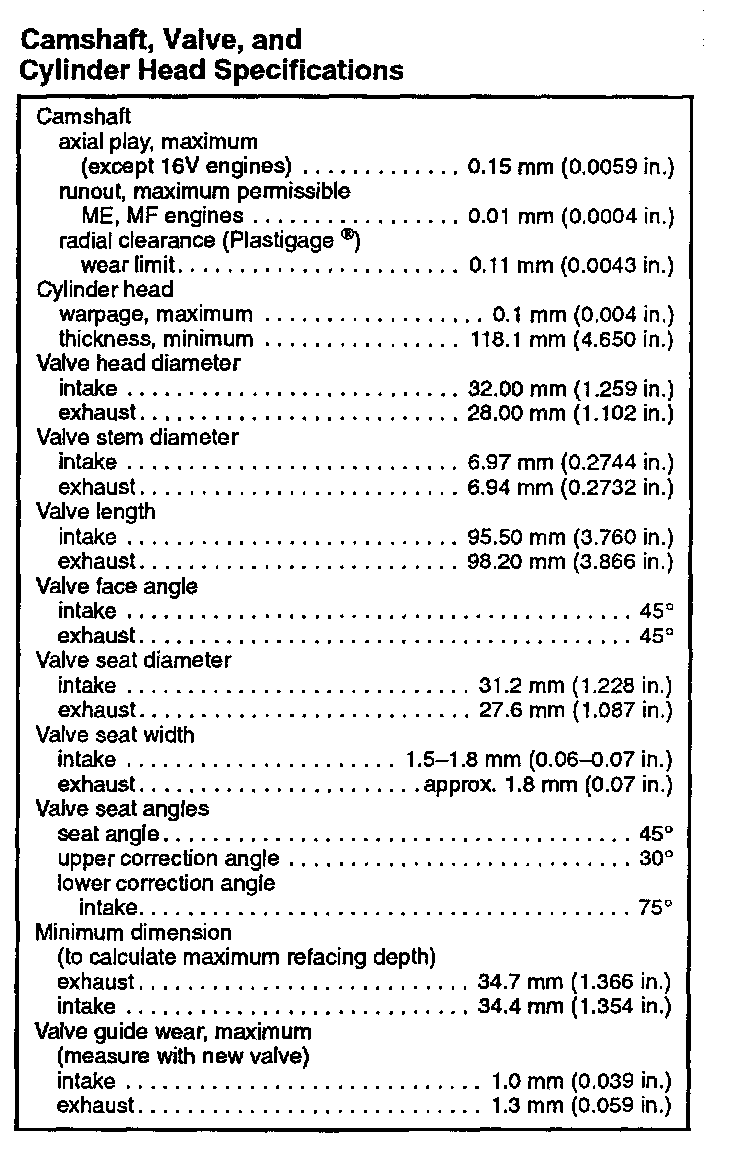

Camshaft,Valve And Cylinder Head Specifications:
