Injection Pump: Removal
- Remove injection pump belt. Remove injection pipes and cover fuel outlets to prevent contamination. Remove solenoid wire, hoses and control cables from pump.

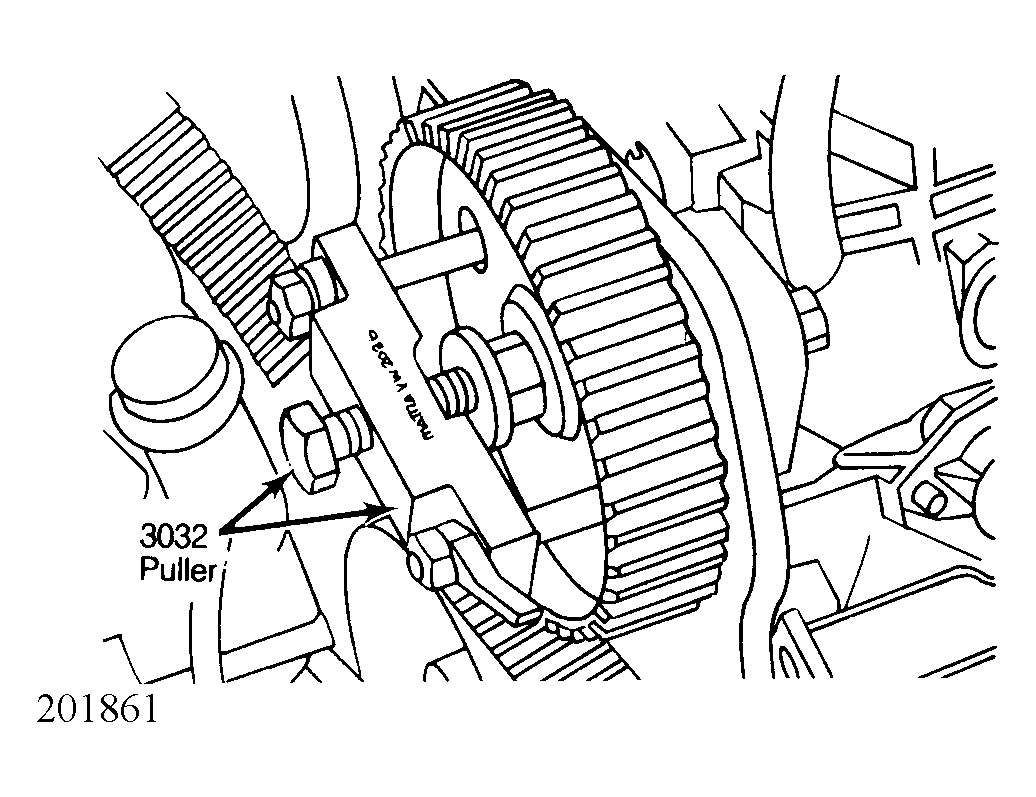

- Insert pump sprocket locking tool (2064) and remove sprocket bolt. Use puller (3032 or US 4494) to remove pump sprocket. Place puller so jaws are at right angle to bar and pointing in direction of spindle rotation.
- Apply light tension to puller. Strike puller spindle head lightly to loosen sprocket from shaft. Do not pry on sprocket with bar or lever. Remove pump mounting bolts and remove pump from engine.
