Volkswagen
>>
1984
>>
Vanagon Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel Injection System - DIGIJET
>>
Wiring Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagrams

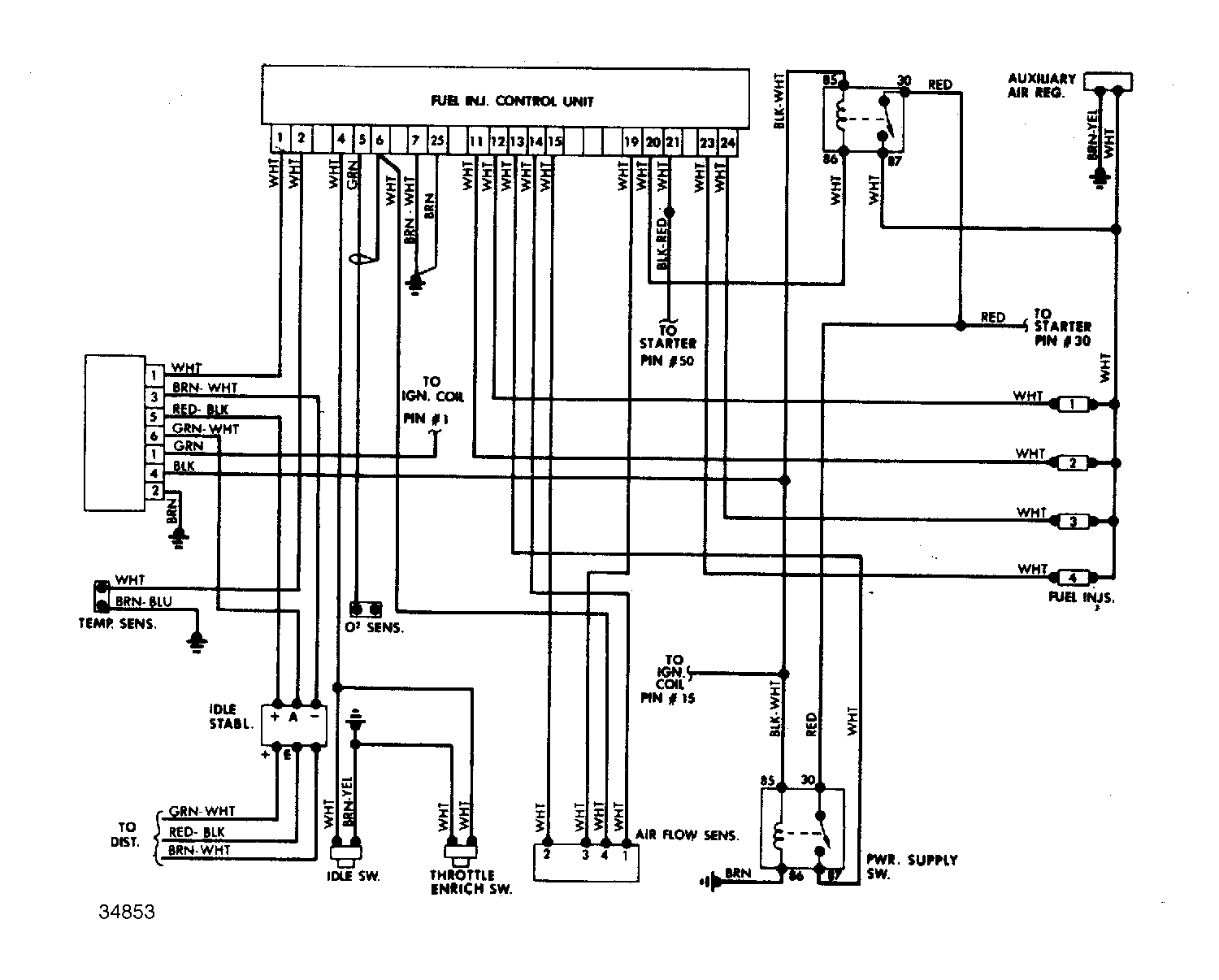

Fig 1: Bosch AFC Digijet Fuel Injection Wiring Diagram
Fig 2: Supplement to Figure 1 ECU Connector Pin Layout
