Disassembly (Quantum)

  1. Remove steering gear assembly from vehicle. Remove pinion valve housing. Remove pinion valve assembly. Remove plate, seal retainer, spring, and thrust piece from steering housing.

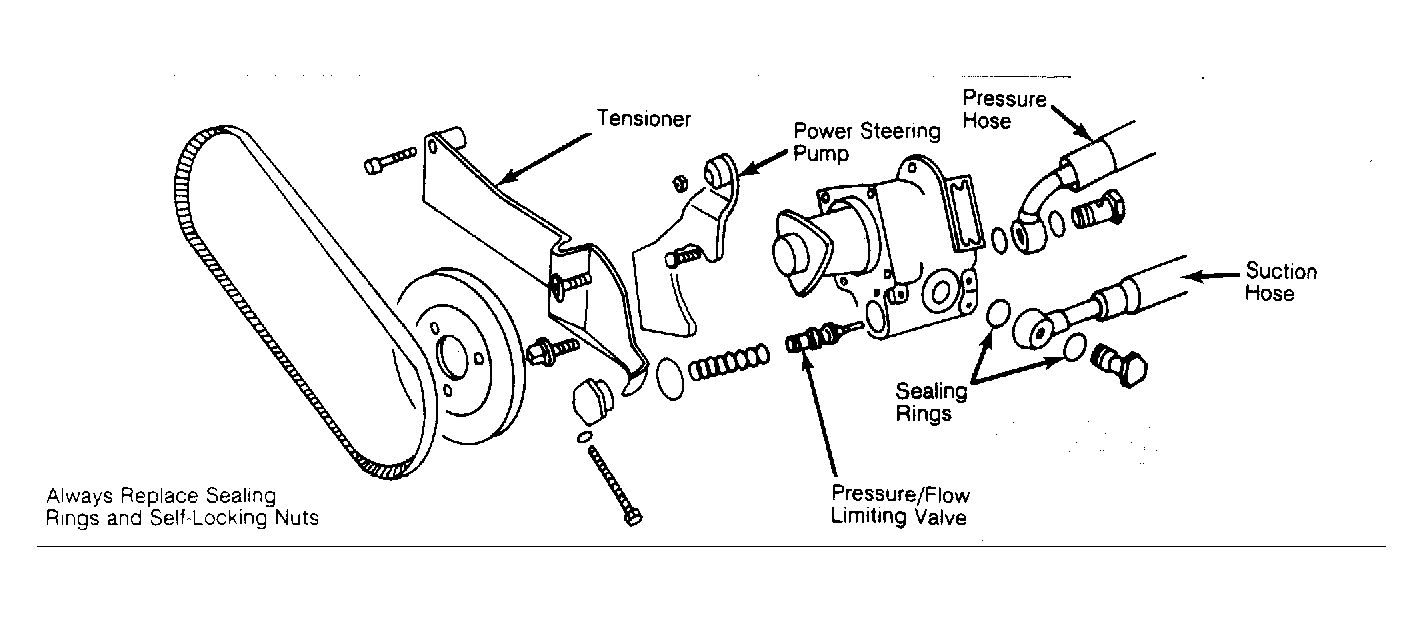

    Fig 1: View of Vane Pump Assembly Only pressure/flow limiting valve can be replaced.
    G51378
  2. Remove retaining ring, clamp and boot from steering housing. Remove retaining ring and snap ring from steering housing.
  3. Remove end housing and "O" ring from steering housing. Pull rack out of steering housing. Using oil seal puller, remove oil seal from steering housing.
