Fuse & Flasher Locations: Identification

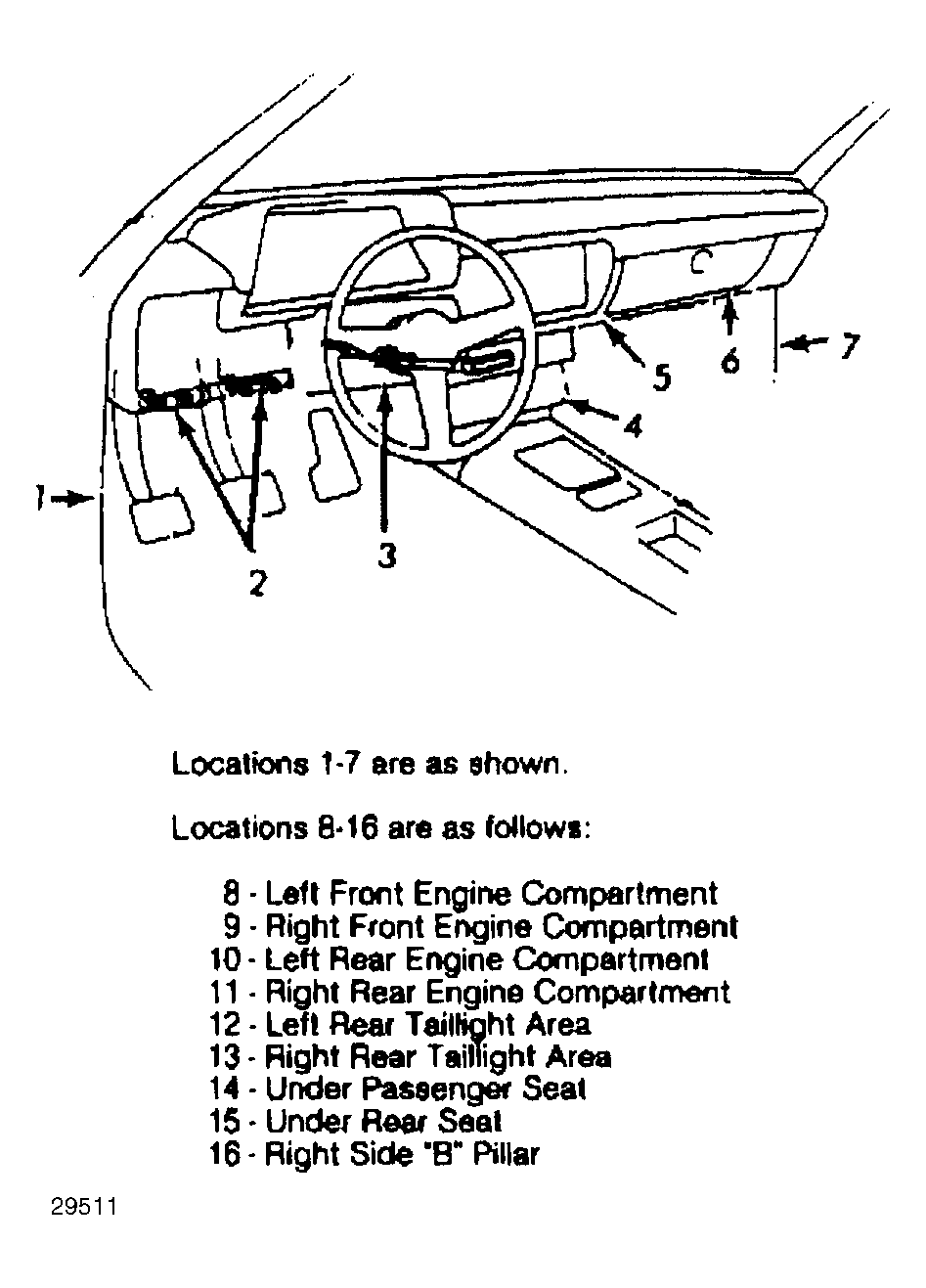

Fig 1: Fuse & Flasher Locations
G29511
FUSE BLOCKS, FLASHERS & RELAYS

Component (1) Location
Quantum
Fuse Locations (2)
Flasher Locations (2)
Relay Locations (2)
Vanagon
Fuse Locations (2)
Flasher Locations (2)
Auxiliary Heater Relay Location (6)
Other Relay Locations (2)
All Others
Fuse Locations (2)
Flasher Locations (2)
Relay Locations (2)
(1) For component locations, see Fig 1.
