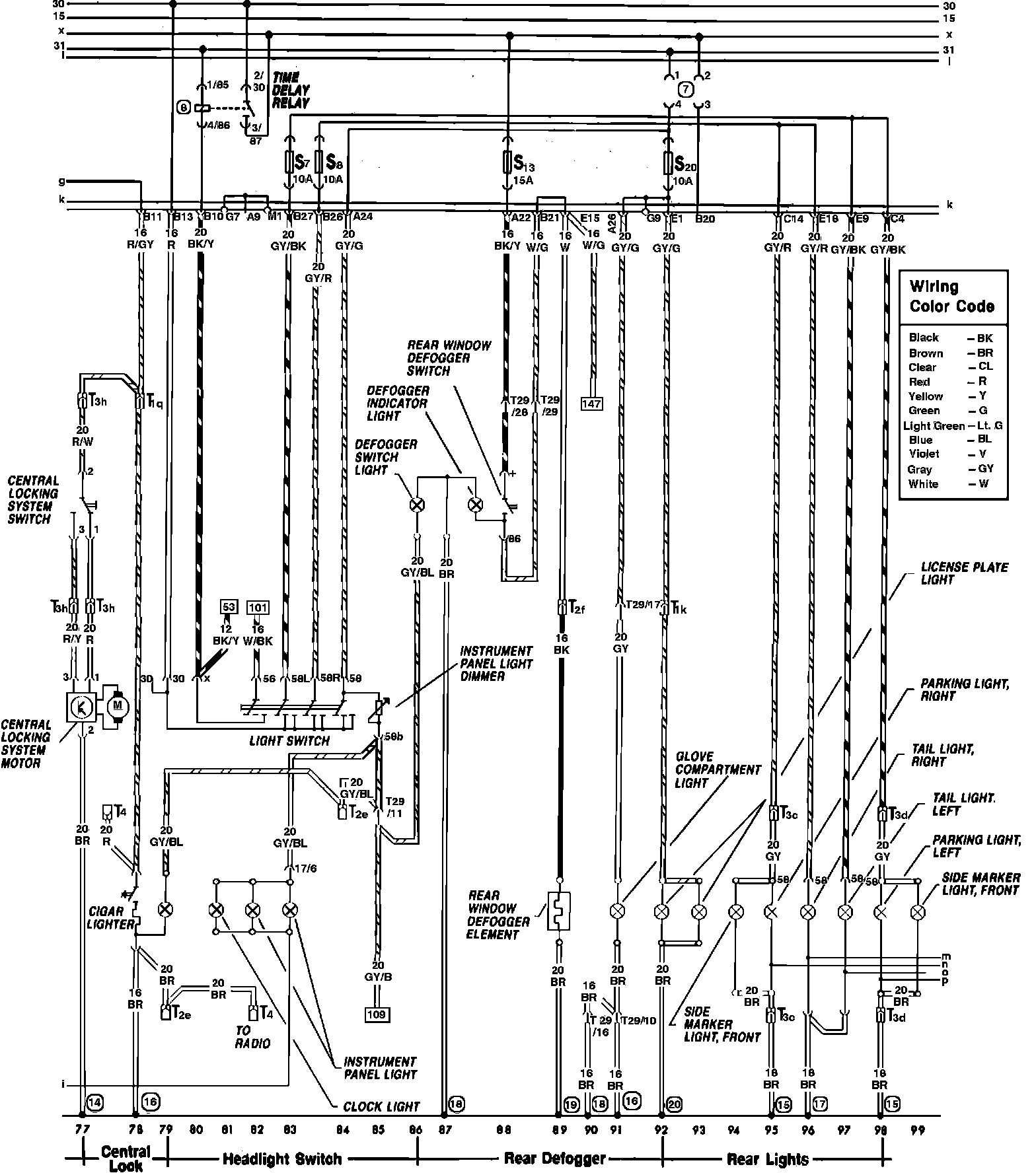

Track 77 - 99
Central Locking, Cigar Lighter, Headlight Switch, Rear Defogger, Glove Compartment, Instrument Panel, License Plate, Parking, Side Marker & Tail Lights:
