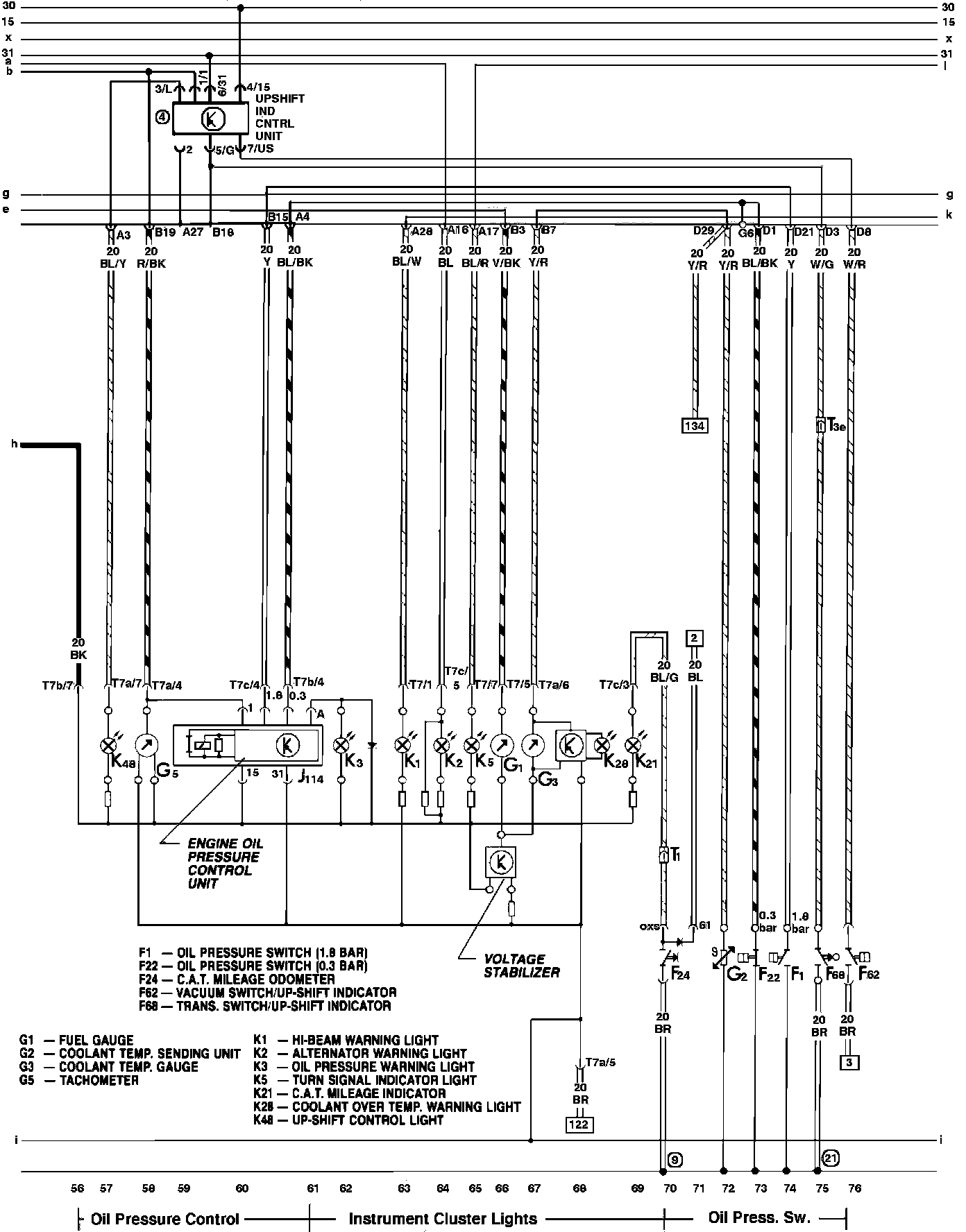

Track 56 - 76

Fuel Gauge Sending Unit, Fuel Injection, Instrument Cluster, Oil Pressure Control, Upshift Indicator, Alternator, Coolant Over Temperature & Oil Pressure Warning:
