Track 35 - 55
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

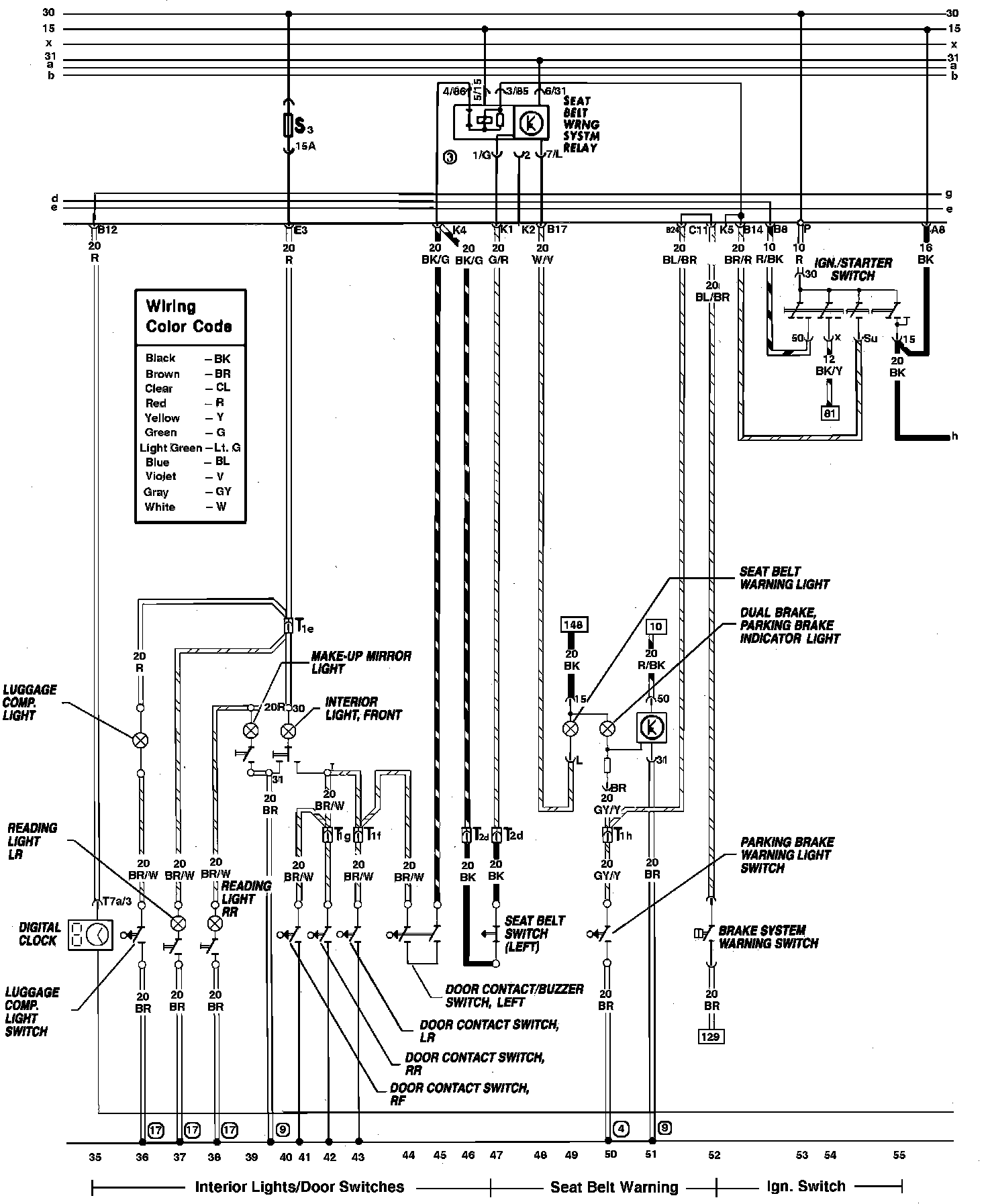

Track 35 - 55
Brake, Seat Belt Warning, Clock, Door Contact Switch, Ignition Switch, Interior, Luggage Compartment & Reading Lights:
