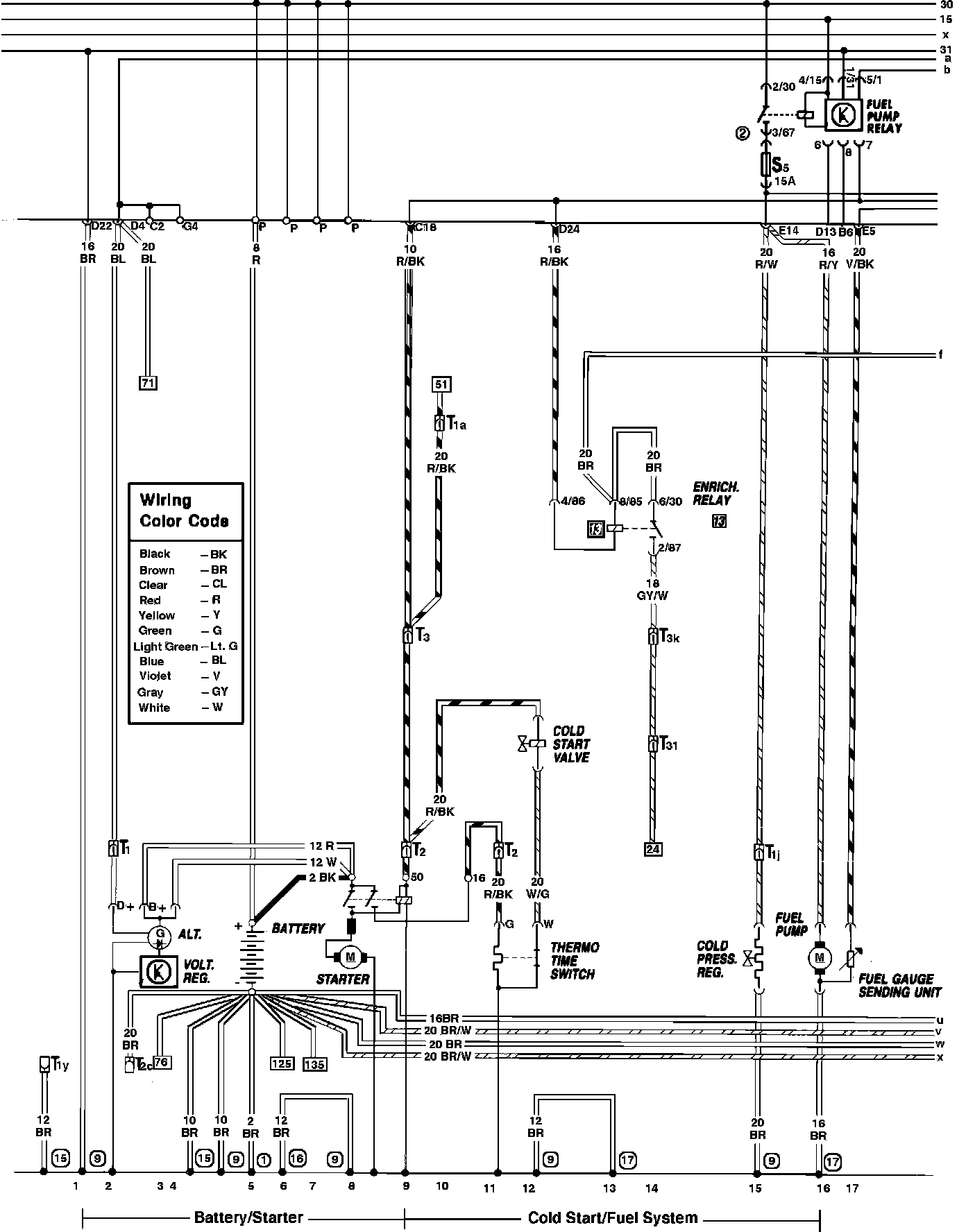

Track 1 - 17

Battery, Cold Start Valve, Fuel Gauge Sending Unit, Fuel Injection, Fuel Pump & Starting System:
