Torque Specifications

NOTE: For references to Torque Specifications, See Fig 1 .

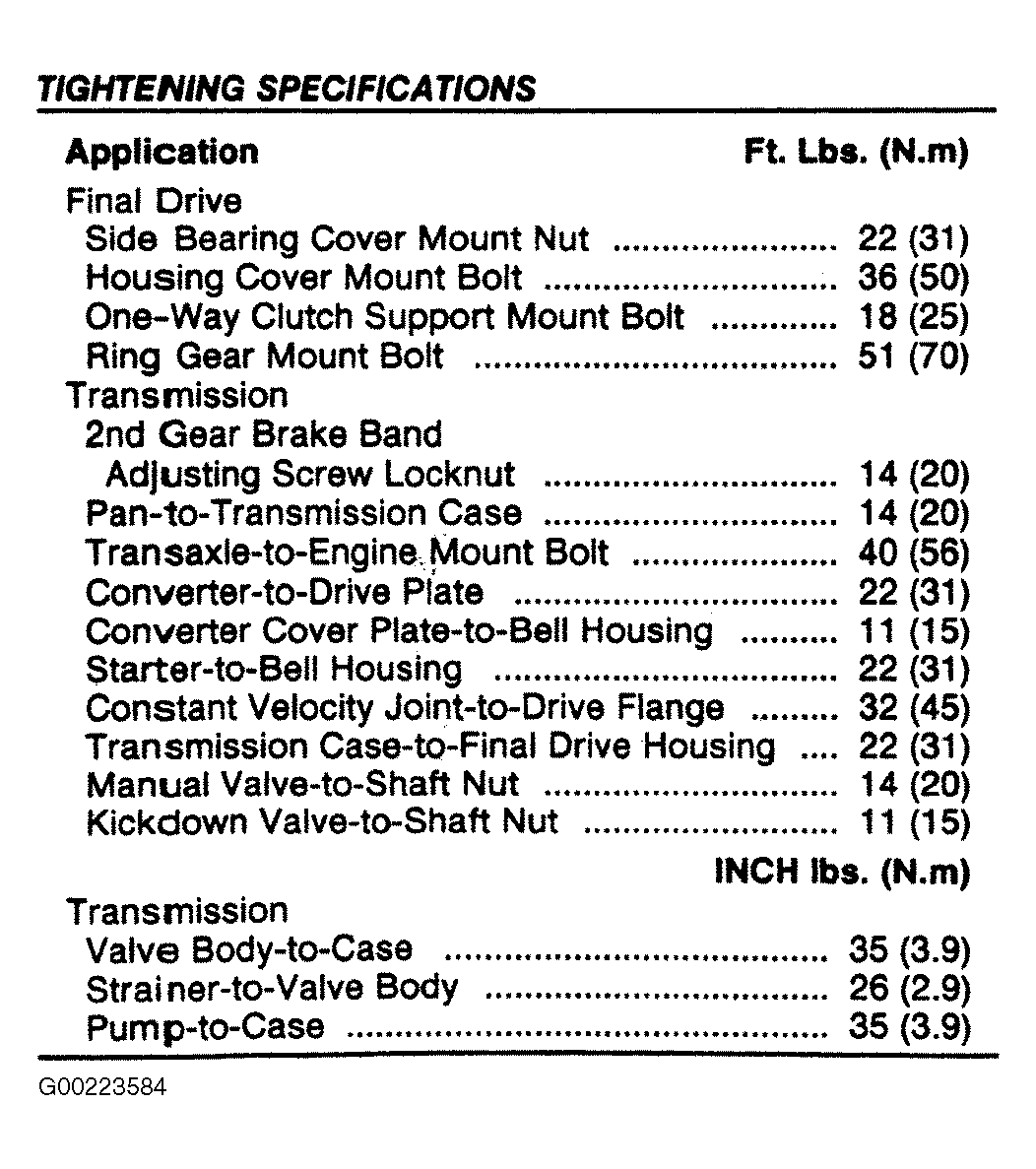

Fig 1: TORQUE TIGHTENING SPECIFICATIONS
G00223584Courtesy of VOLKSWAGEN UNITED STATES, INC.
