Auto. Trans. 010 - Modifications For E-Mode (GROUP 38, NO. 82-02)

WARNING: This page is about the Rabbit L, 2D Hatchback, 1.6 G, which is a different variant/trim than selected.
Publication date: 1982-09-10
Reference number: GROUP 38, NO. 82-02

AUTO. TRANS. 010 - MODIFICATIONS FOR E-MODE

AUTO. TRANS. 010 - MODIFICATIONS FOR E-MODE

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 38, NO. 82-02, Date of Issue:  September 10, 1982

AUTOMATIC TRANSMISSION 010 - MODIFICATIONS FOR E-MODE

Model(s): Volkswagen Rabbit, Jetta (Diesel With Automatic Transmission)

Group: 38 - Automatic Transmission - Gears, Shafts

Bulletin No.: 82-02

Part Identifier: N/A

Date: September 10, 1982

GENERAL DATA

Transmission Code Letters: TD

Torque converter code letter: X

Valve body code letters: CK

FORWARD CLUTCH, DISASSEMBLING/ASSEMBLING

Refer to Fig 1 .

INNER SPLINED PLATES, IDENTIFICATION

FORWARD CLUTCH HOUSING IDENTIFICATION

FORWARD CLUTCH ASSEMBLY, CHECKING OPERATION

- Assemble both forward clutch and direct/reverse clutch with thrust washers on oil pump.

- Blow compressed air into port. See Fig 4 , (arrow A).

FORWARD CLUTCH, ADJUSTING END PLAY

Refer to Fig 5 .

- Check that play (arrow) is between 0.5-0.9 mm (0.020 to 0.035 in.) otherwise select new circlip from table.

CIRCLIP THICKNESS

Thickness (mm) Part Number
1.5 mm 010 323 157 E
1.7 mm 010 323 157 F
2.0 mm 010 323 157 G
2.3 mm 010 323 157 H
2.5 mm 010 323 157 J
2.9 mm 010 323 157 K
3.2 mm 010 323 157 L
3.5 mm 010 323 157 M

CIRCLIP (SMALL), REMOVING/INSTALLING

- Press spring plate down. See Fig 6 .

VALVE BODY/SEPARATION PLATE/TRANSFER PLATE

Refer to Fig 7 .

CAUTION: Tighten screws evenly when assembling.

BALL VALVES, LOCATION

Refer to Fig 8 .

VALVE BODY, IDENTIFICATION

TRANSFER PLATE, IDENTIFICATION

Refer to Fig 10 .

SEPARATION PLATE IDENTIFICATION

Refer to Fig 11 .

PLATE VALVE, INSTALLING

VALVE BODY ASSEMBLY, DISASSEMBLING/ASSEMBLING

For valve body assembly components, refer to Fig 13 .

NOTE: For spring measurements, see spring table below.
CAUTION: Several springs have same dimensions. However, do not interchange because they have different tolerances.
NOTE: Slight scoring on valves will not cause operating problems.

SPRING TABLE (CK VALVE BODY)

This table allows identification of springs by their dimensions. Coil diameter and free length can vary between new and used springs (due to settling) so check spring wire thickness and number of coils first, as means of identifying spring. If this is not enough also use inner coil diameter and free length.

CAUTION: Several valve springs have similar dimensions. However, they must not be interchanged because they have different tolerances.
SPRING

Description Coils Wire Thickness mm (in.) Free Length mm (in.)(1) Inner Diam. of Coil mm (in.)(2)
Spring/throttle pressure limiting valve 14.5 1.1 (0.043) 37.9 (1.492) 7.7 (0.303)
Spring/main pressure limiting valve 12.5 1.2 (0.047) 27.5 (1.082) 7.6 (0.299)
Spring/main pressure valve 16.5 1.5 (0.059 75.0 (2.952) 11.9 (0.468)
Spring/throttle pressure valve 16.5 1.1 (0.043) 44.0 (1.732) 7.75 (0.305)
Spring/modulator pressure valve 11.5 0.8 (0.031) 28.6 (1.126) 7.75 (0.305)
Spring/shift valve 1-2 6.5 0.9 (0.035) 19.9 (0.783) 8.1 (0.319)
Spring/shift valve 2-3 8.5 0.8 (0.031) 17.4 (0.685) 6.95 (0.274)
Spring/control valve 3-2 12.5 1.0 (0.039) 32.4 (1.275) 7.7 (0.303)
Spring/converter pressure valve 8.5 1.25 (0.049) 22.2 (0.874) 7.7 (0.303)
Spring/kickdown control valve 3-2 11.5 0.9 (0.035) 28.4 (1.118) 8.1 (0.319
Spring/apply valvefor 1st/reverse gear brake 10.5 0.63 (0.025) 36.3 (1.429) 9.0 (0.354)
Spring/forward clutch release valve 6.5 0.4 (0.015) 14.7 (0.578) 5.9 (0.232)
Spring/forward clutch apply valve 15.5 0.5 (0.019) 17.2 (0.677) 3.5 (0.137)
(1) Free length can vary due to tolerances and settling.
(2) Inner coil diameter is within a tolerance of +/- 0.3 mm (0.012 in.).

PARKING LOCK, REMOVING/INSTALLING

Refer to Fig 14 .

NOTE: Dip seals in ATF before installing.

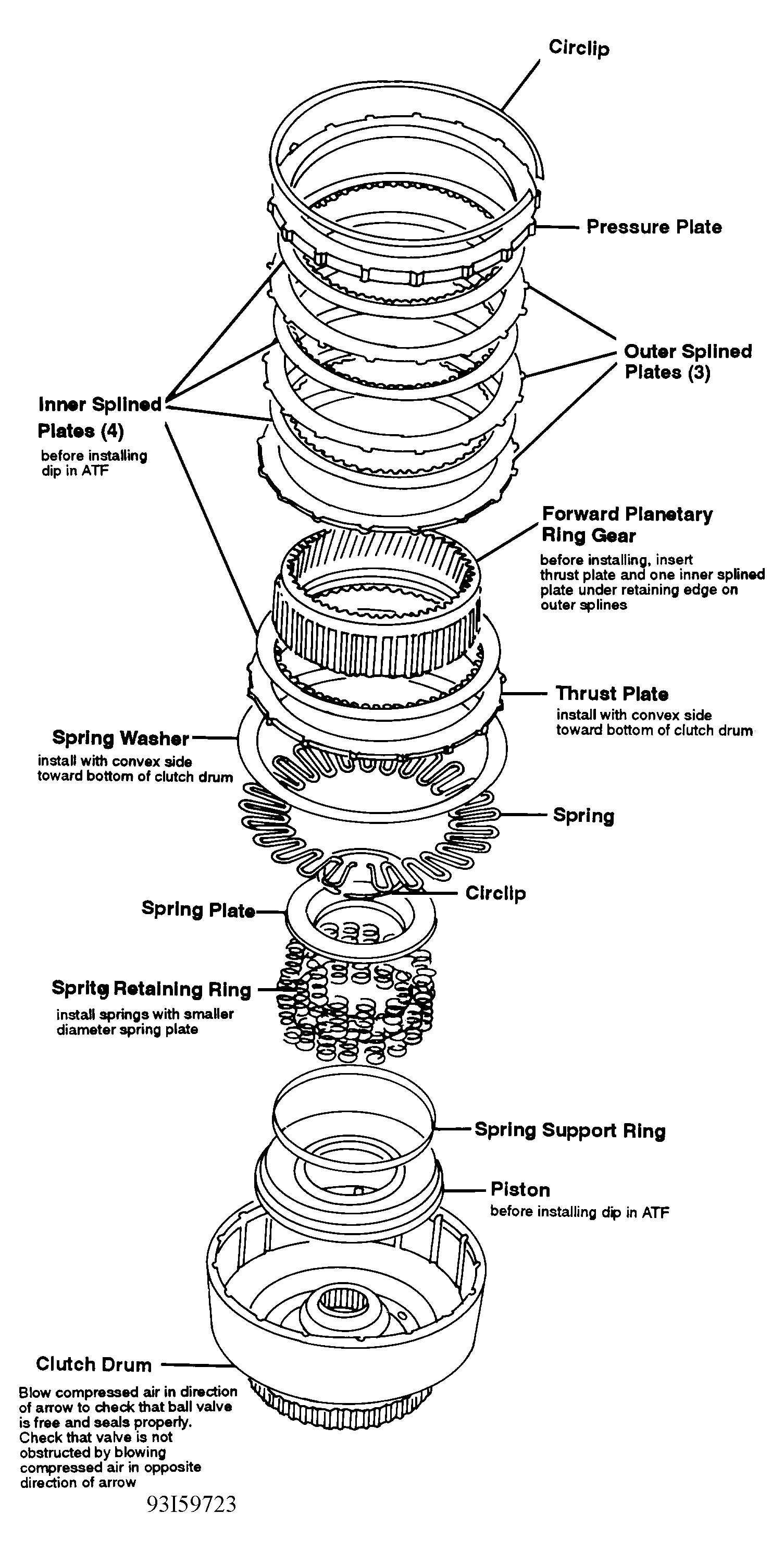

Fig 1: Forward Clutch Assembly
G93I59723
Fig 2: Inner Splined Plate Identification
G93J59724

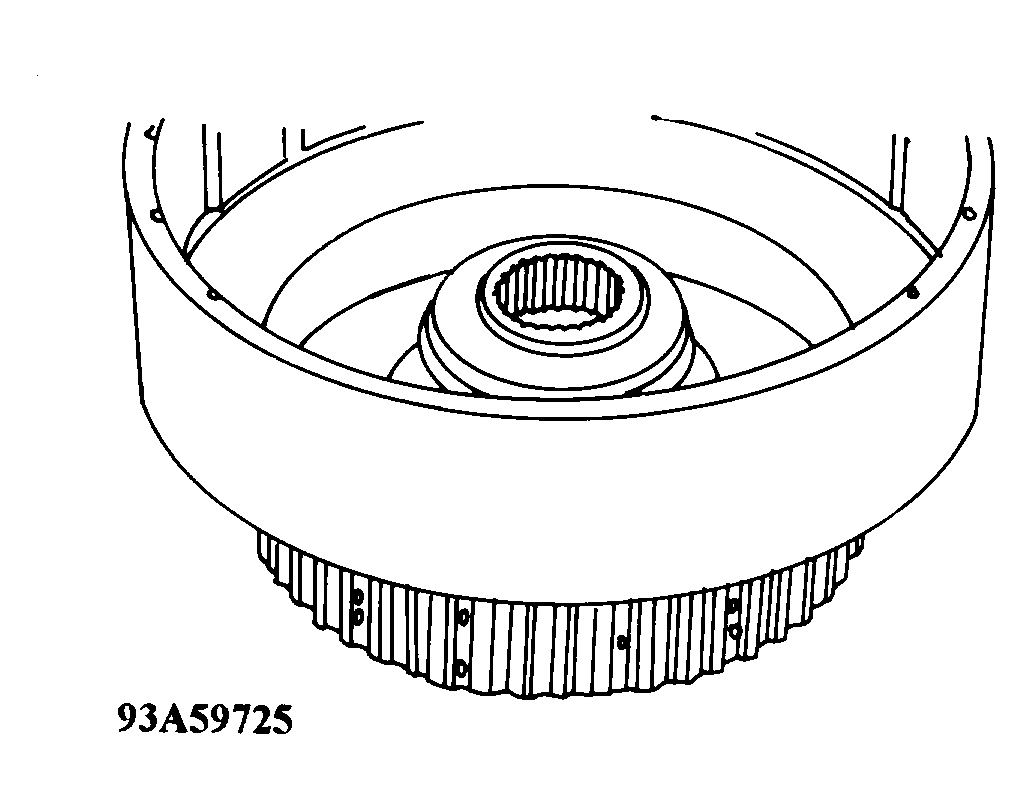

Fig 3: Forward Clutch Housing Identification
G93A59725

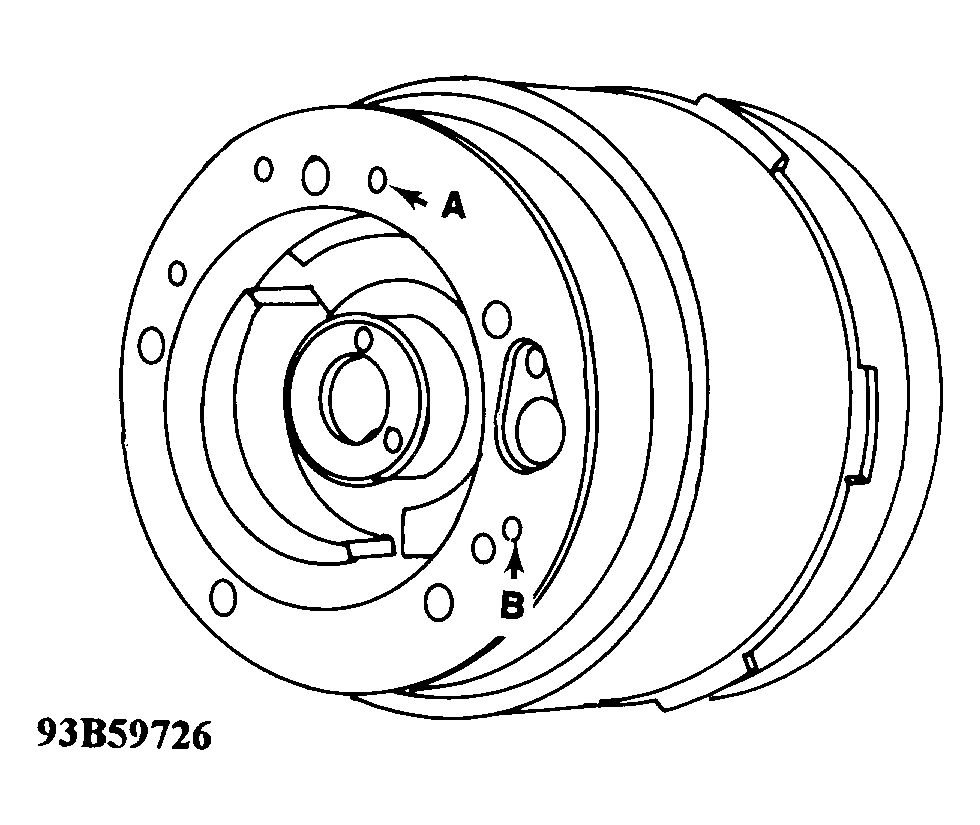

Fig 4: Checking Forward Clutch Assembly Operation
G93B59726

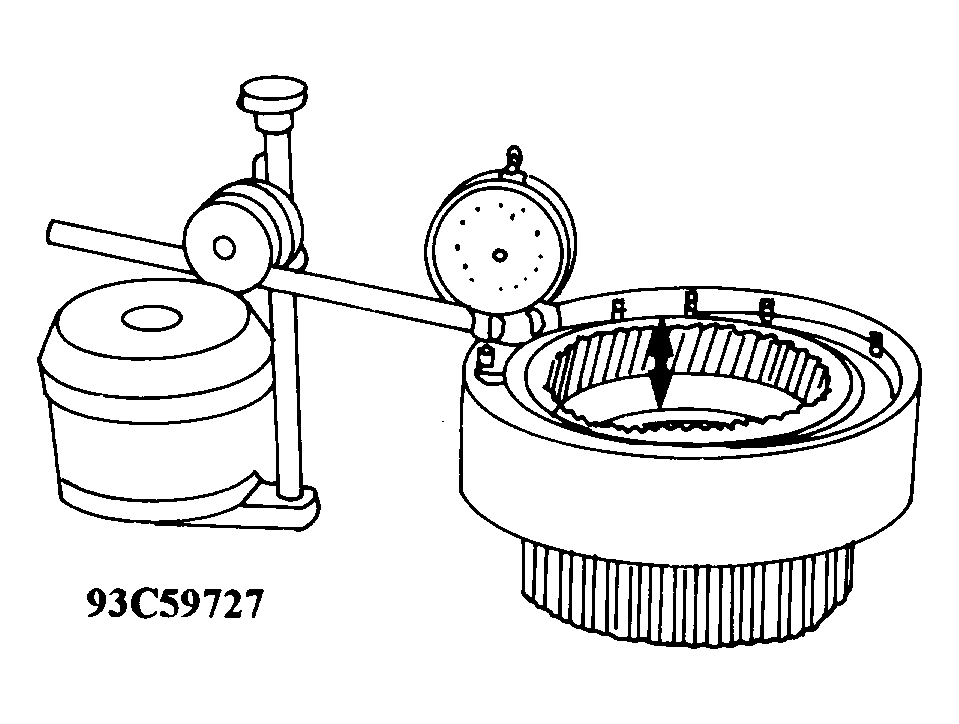

Fig 5: Measuring Forward Clutch End Play
G93C59727

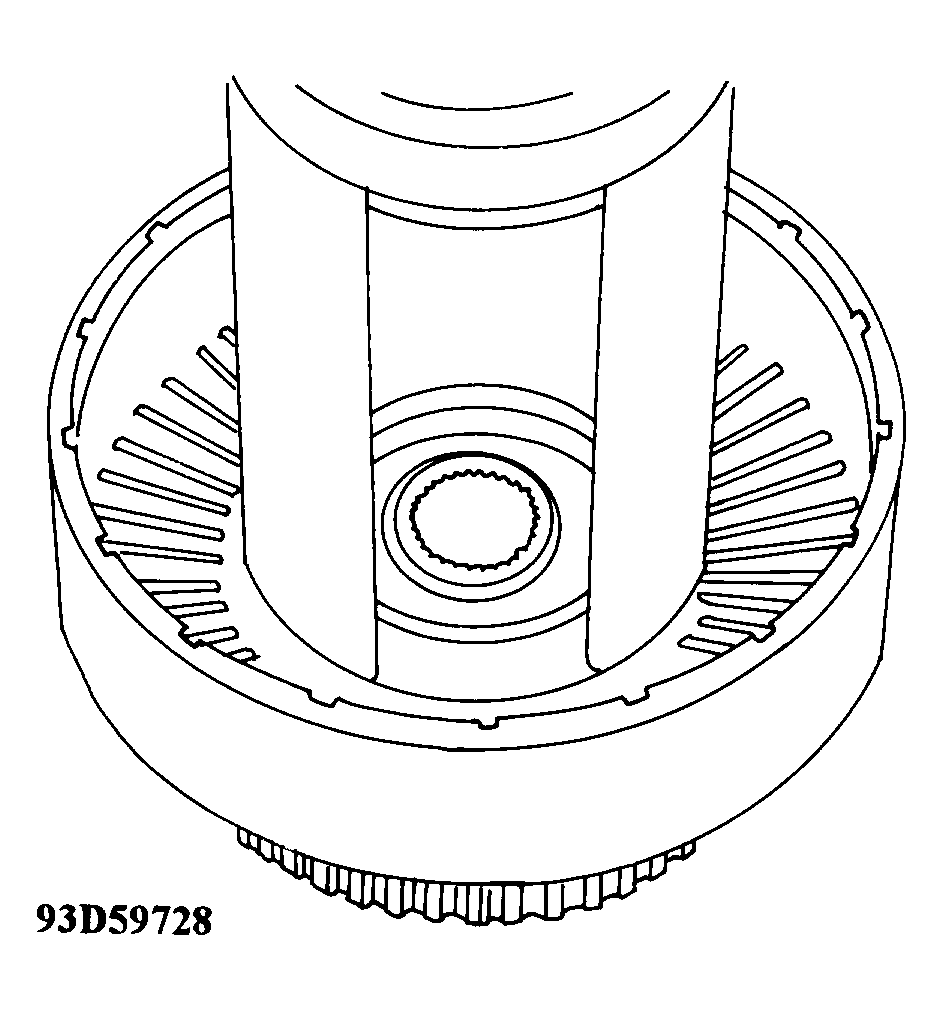

Fig 6: Installing Small Circlip
G93D59728

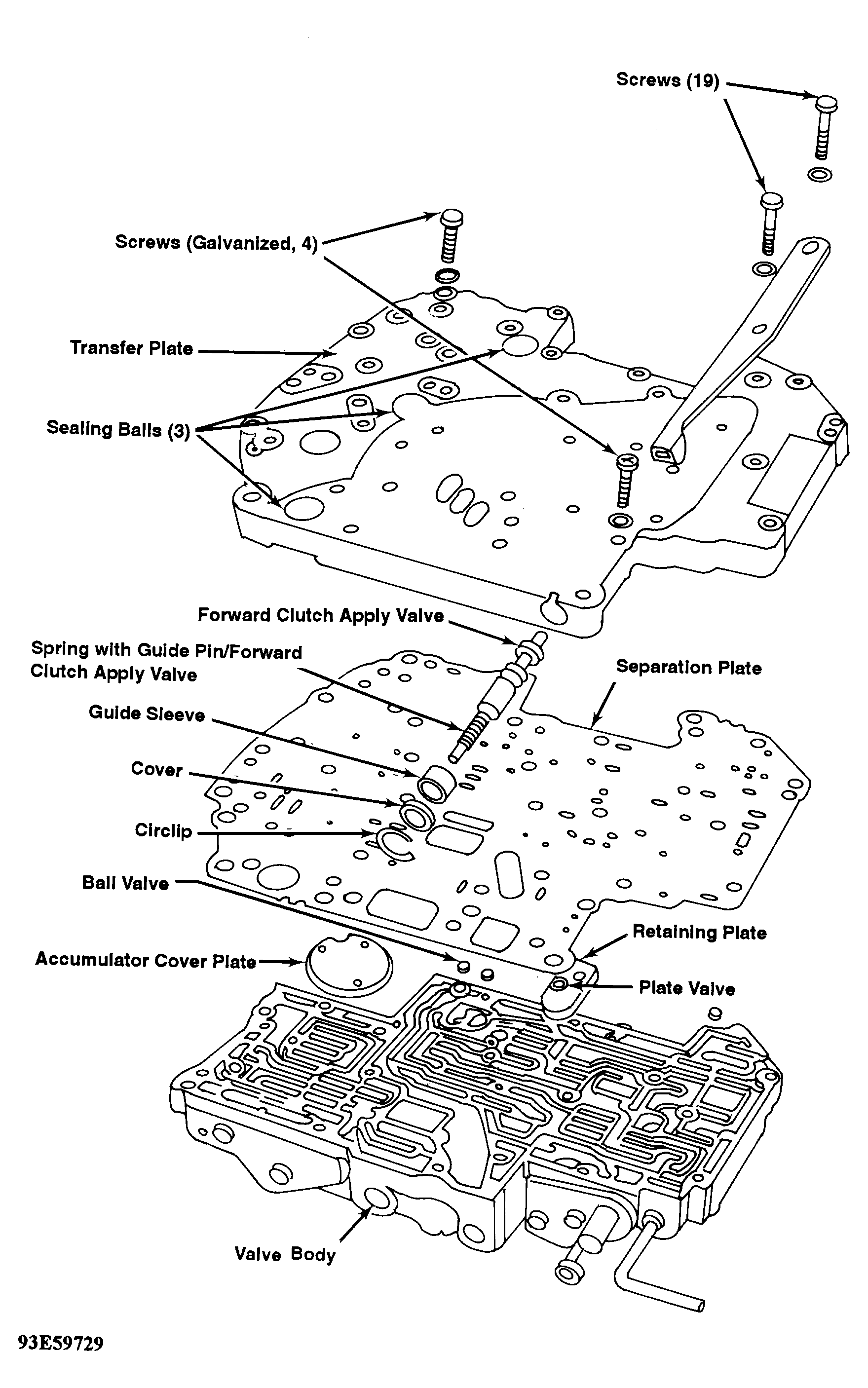

Fig 7: Valve Body/Separation Plate/Transfer Plate
G93E59729

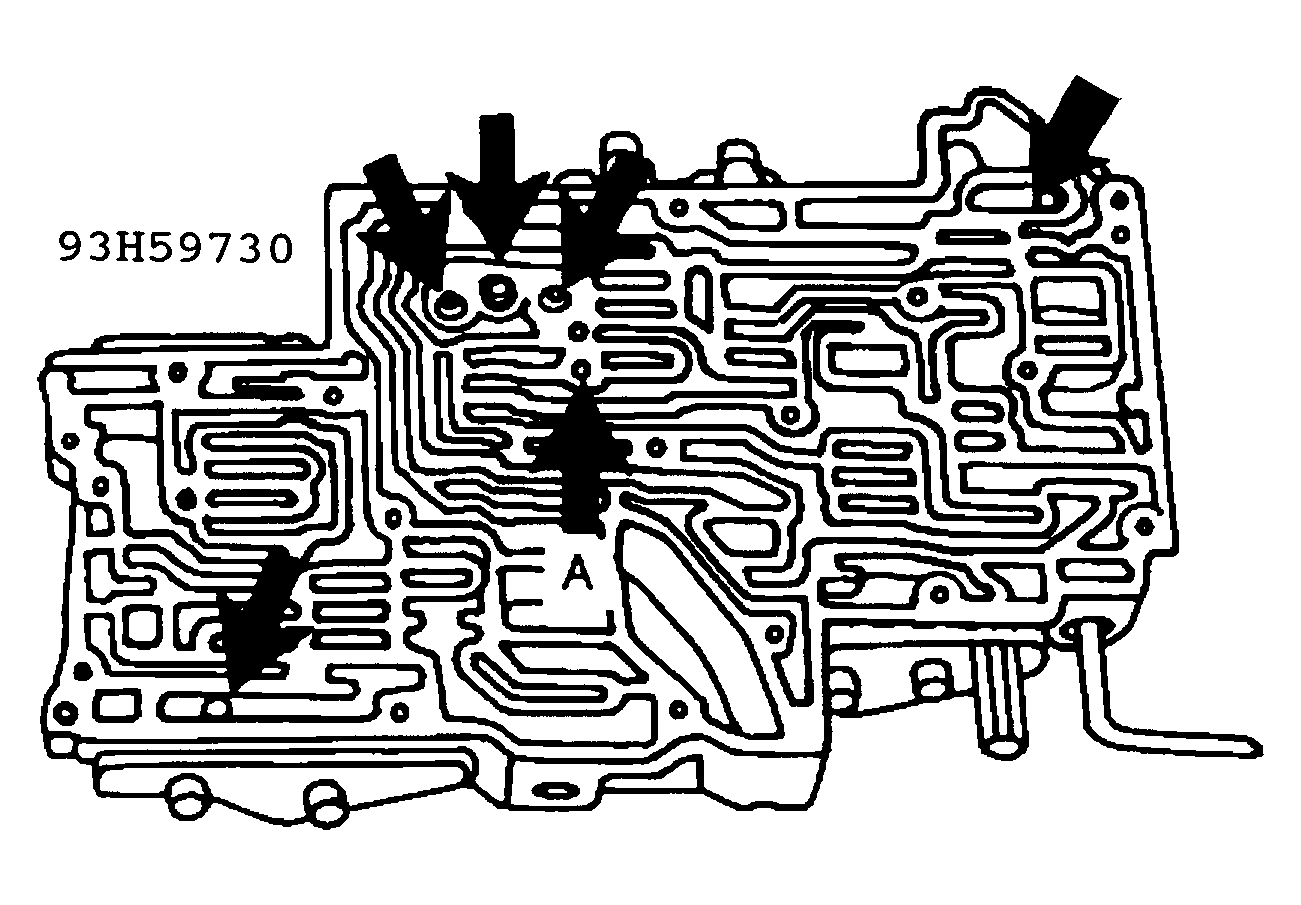

Fig 8: Ball Valve Locations
G93H59730

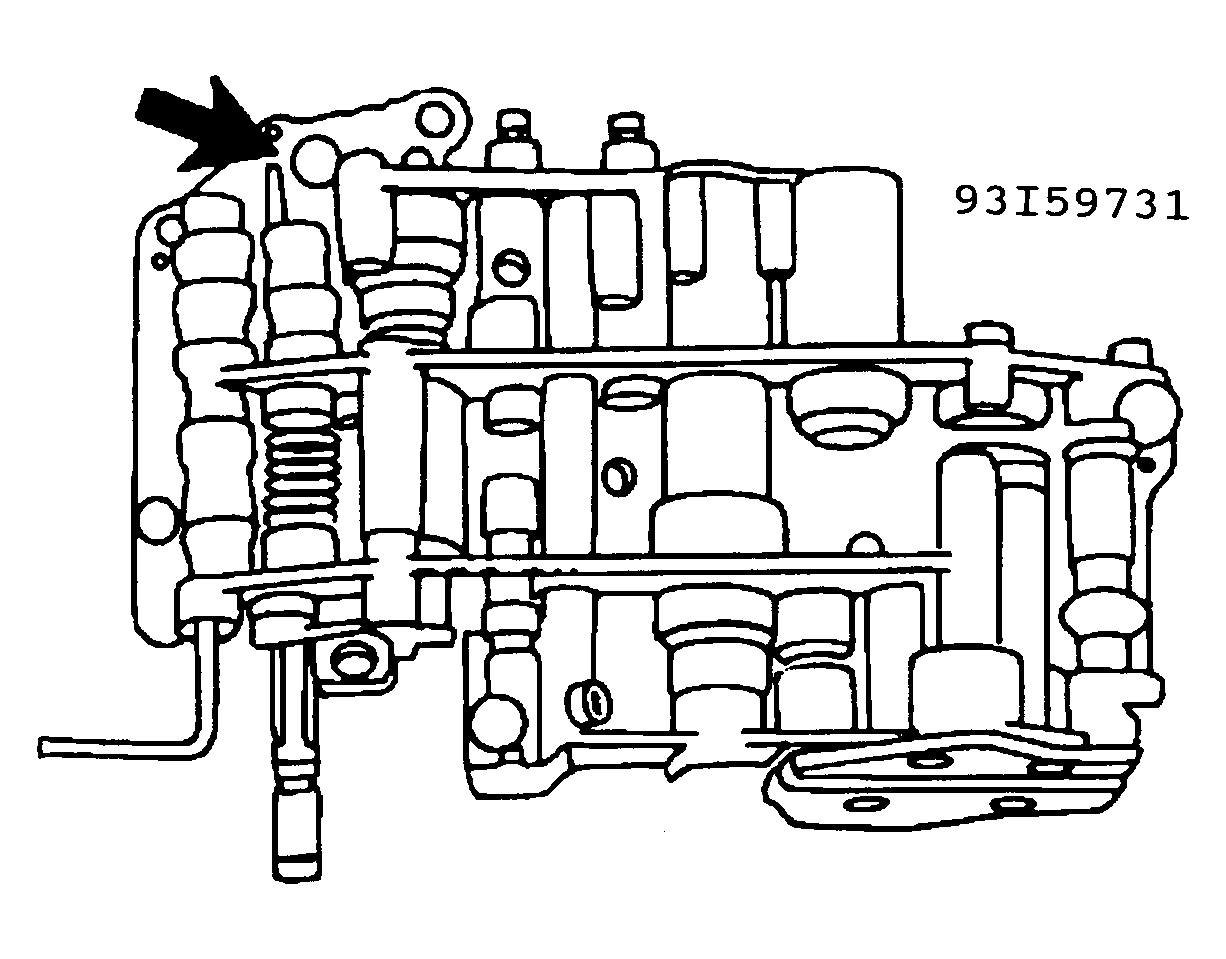

Fig 9: Valve Body Identification
G93I59731

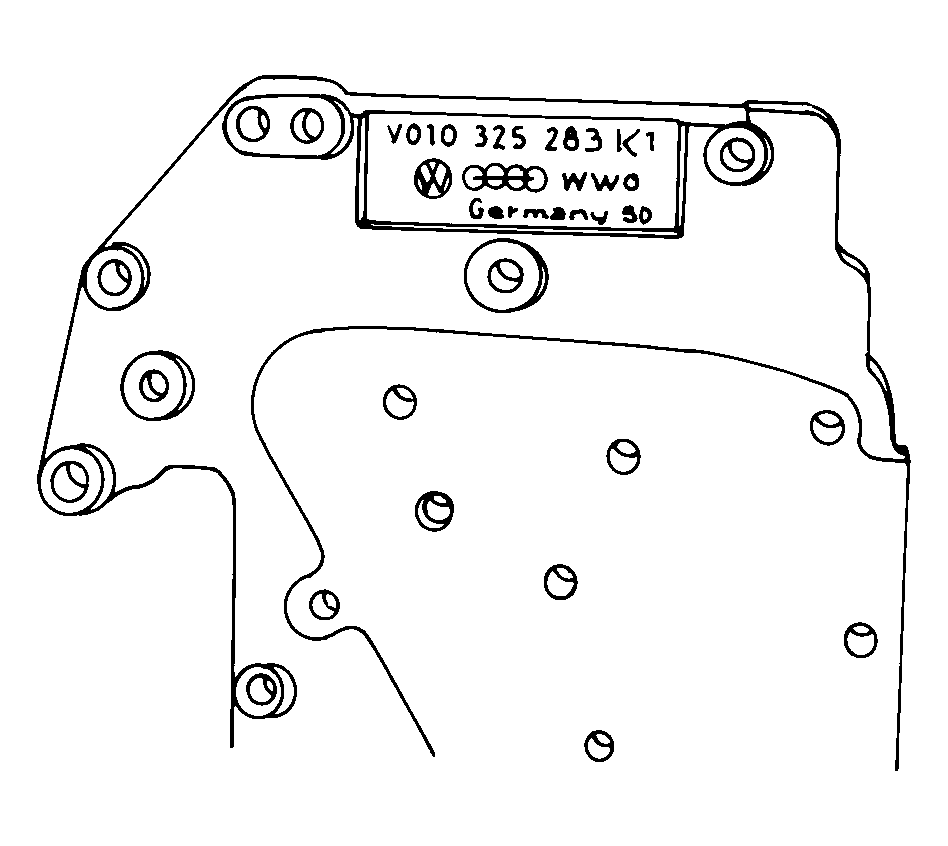

Fig 10: Transfer Plate Identification
G91G24014

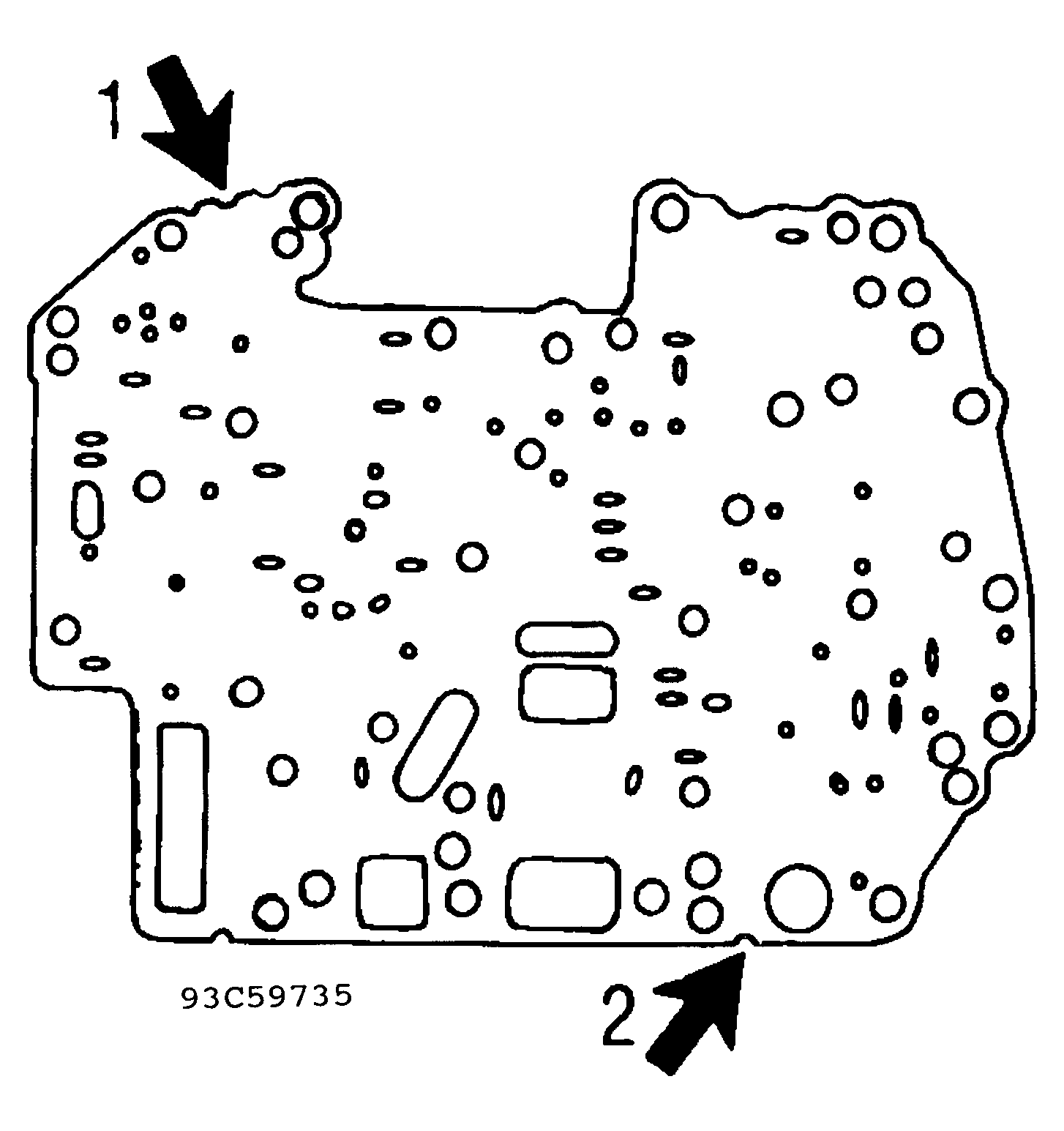

Fig 11: Separation Plate Identification
G93C59735
Fig 12: Installing Plate Valve
G91H24015

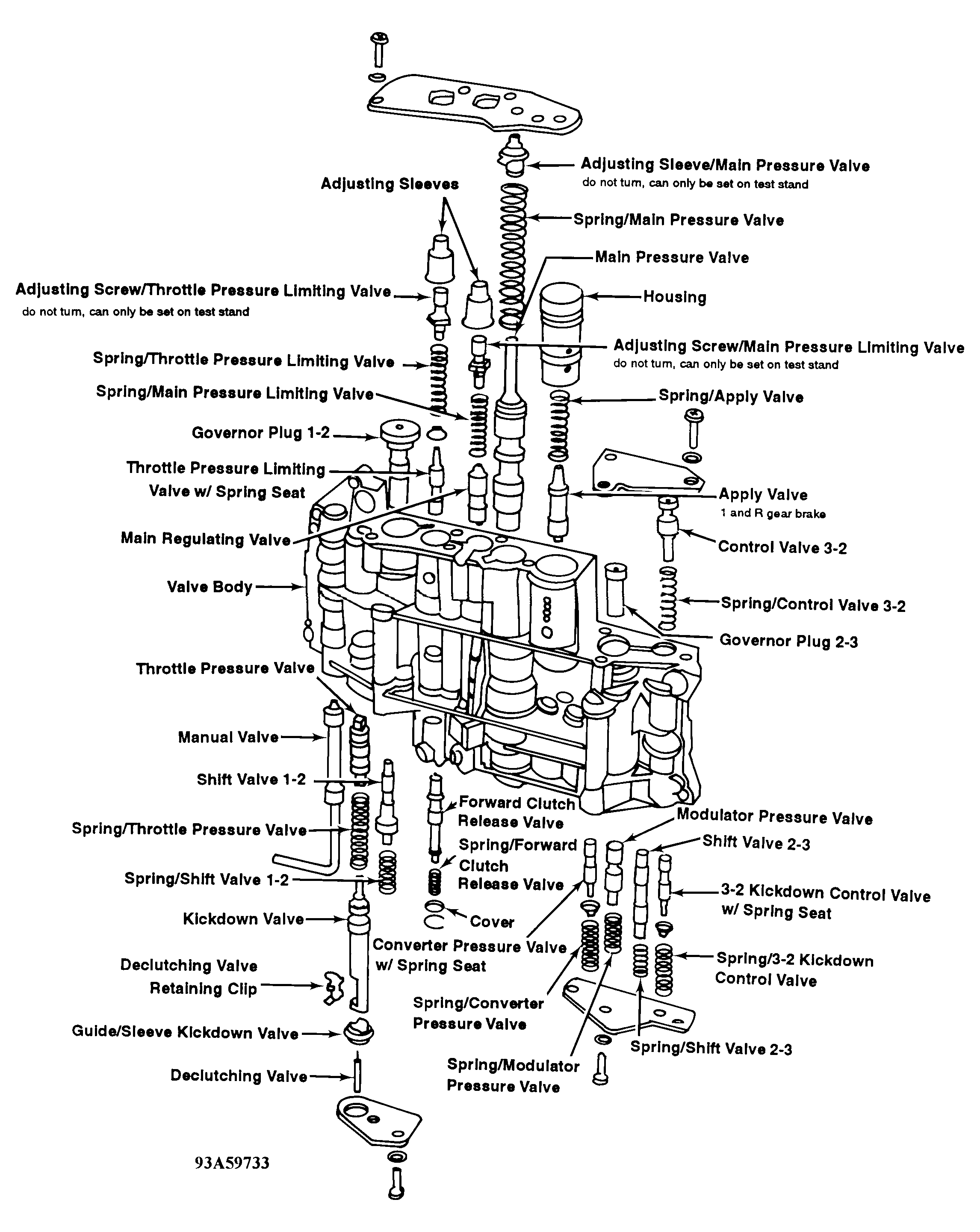

Fig 13: Valve Body Assembly Components
G93A59733

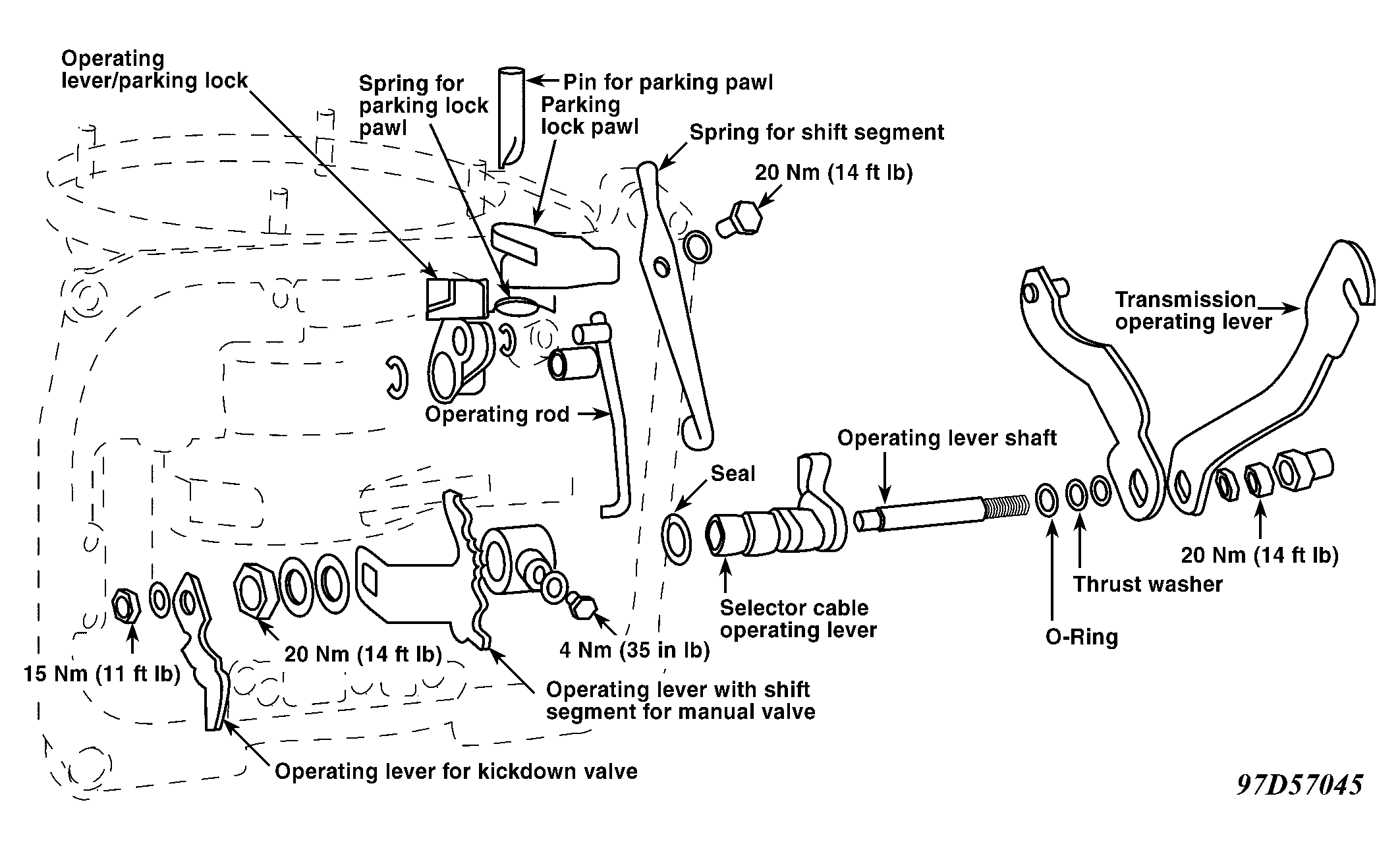

Fig 14: Removing/Installing Parking Lock
G97D57045
