Tune-Up - 4-CYL: Adjustments: Distributor

All models use Bosch Hall Effect ignition systems. No adjustments are required. Set point gap to approximately .016" (.40 mm) so that dwell reads 44-50°.

Fig 1: Firing Order & Distributor Rotation
G46132

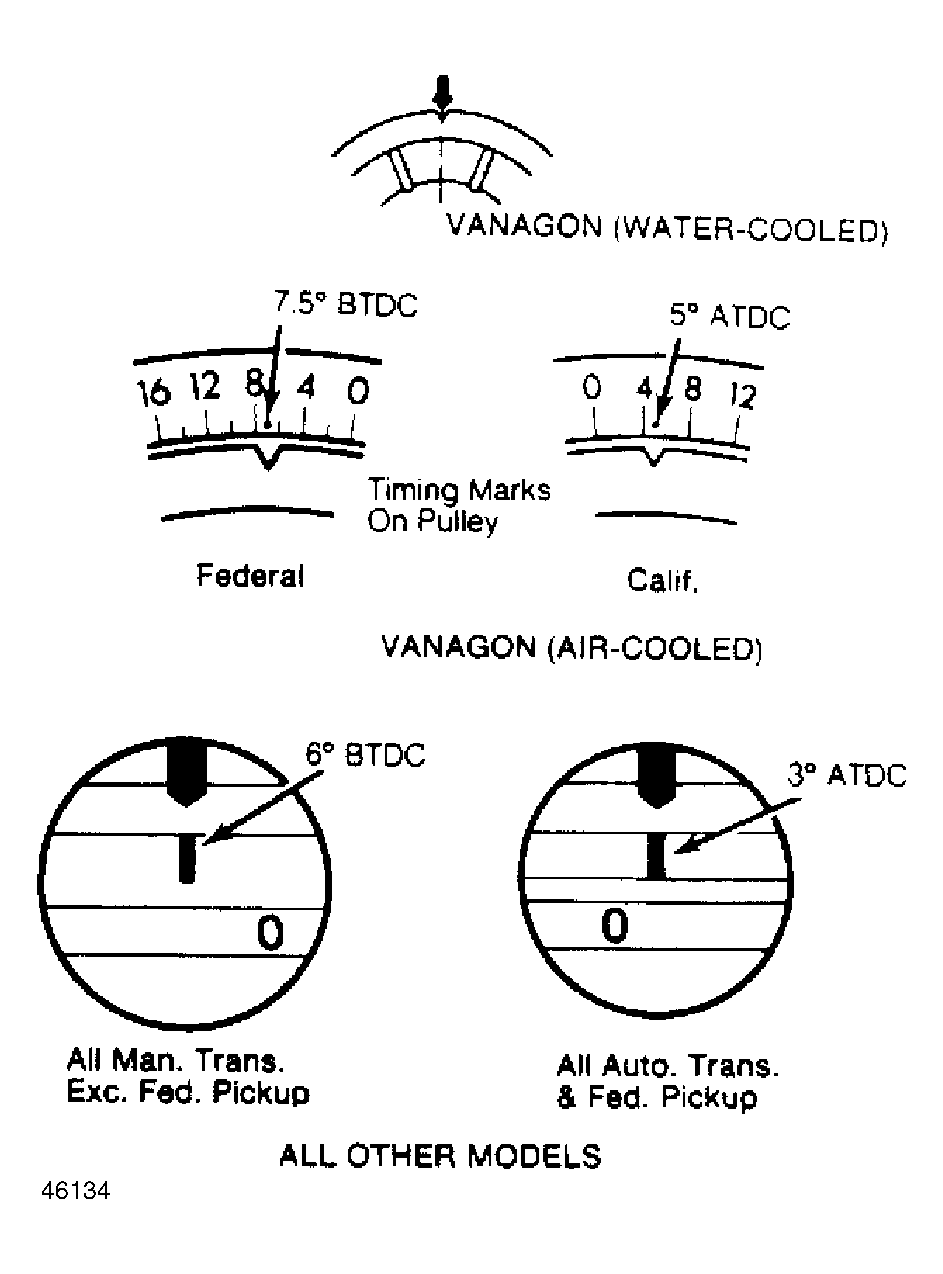

Fig 2: Ignition Timing Mark Locations (All Models) (Adjust Timing By Turning Distributor)
G46134
