Connecting Rod: Service and Repair

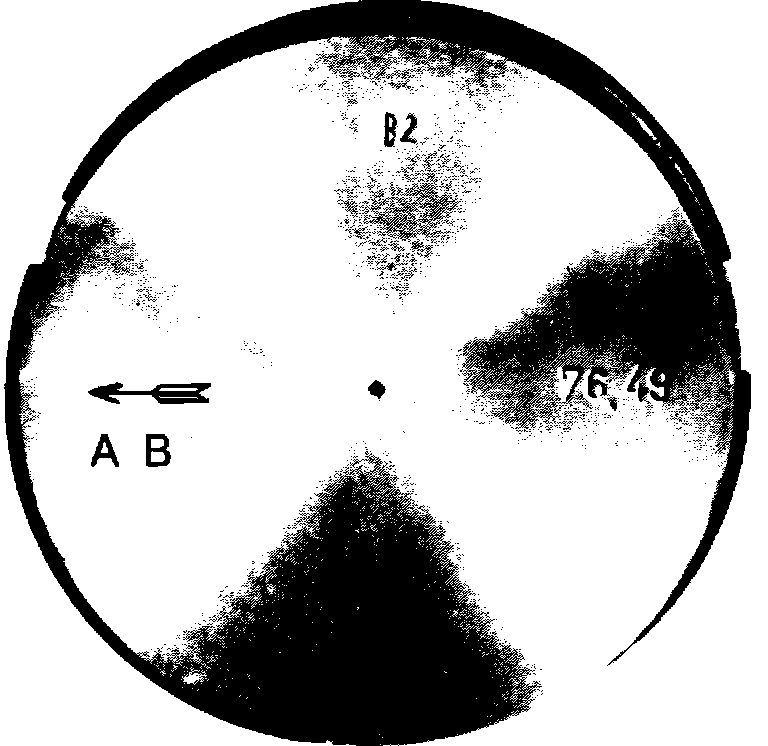

Fig. 11 Piston crown markings:

Fig. 12 Connecting rod casting marks:

Assemble the piston to the rod with the arrow on piston crown pointing toward front of engine and casting marks on rod facing intermediate shaft, Figs. 11 and 12.
