Engine Specifications and Clearances

Engine Design Specifications


Crankshaft Journal Size Specifications:





Piston Ring Side Clearance Specifications:





Piston Ring End Gap Specifications:





Piston Diameter Specifications:





Cylinder Clearance Specifications:





Cylinder Bore Specifications:

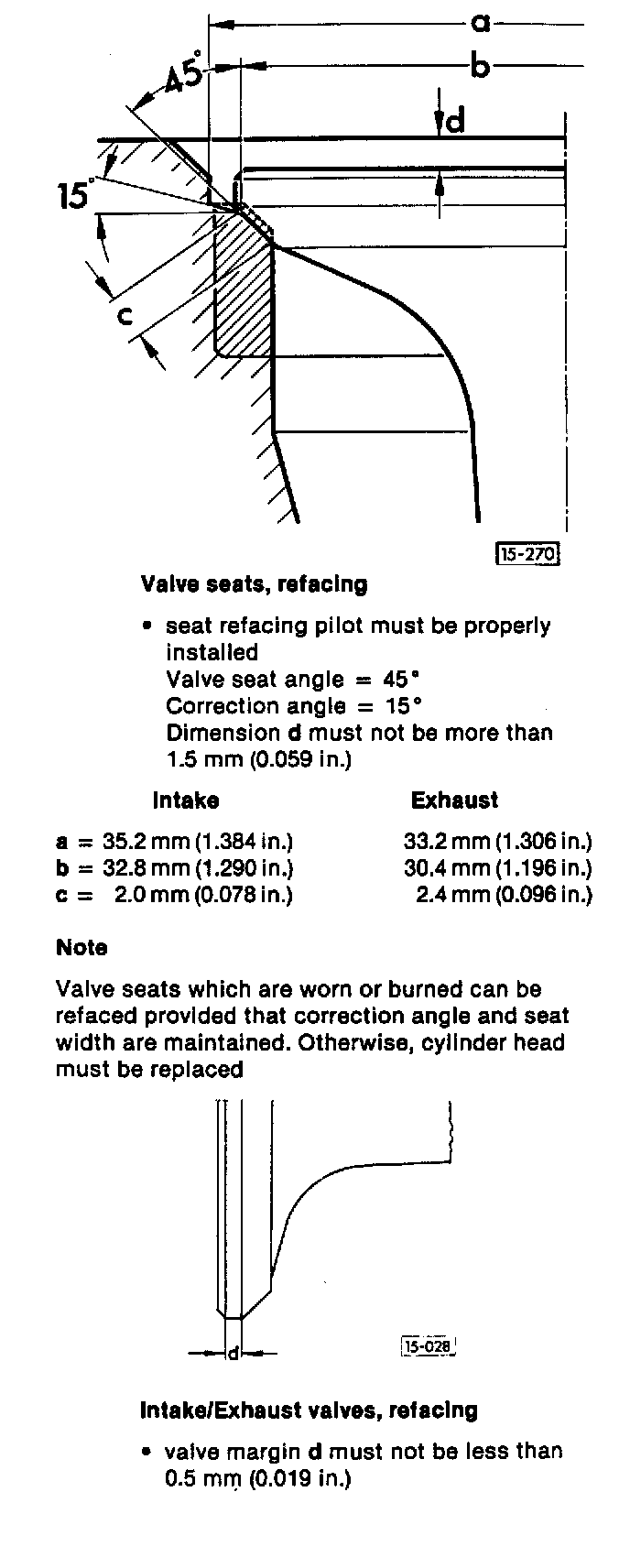

Valve Specifications:





Valve Specifications Continued:
