Engine Torque Specifications

Desiel engine torque specifications

Torque Specifications:





Connecting Rod Bolt Torque Specifications:

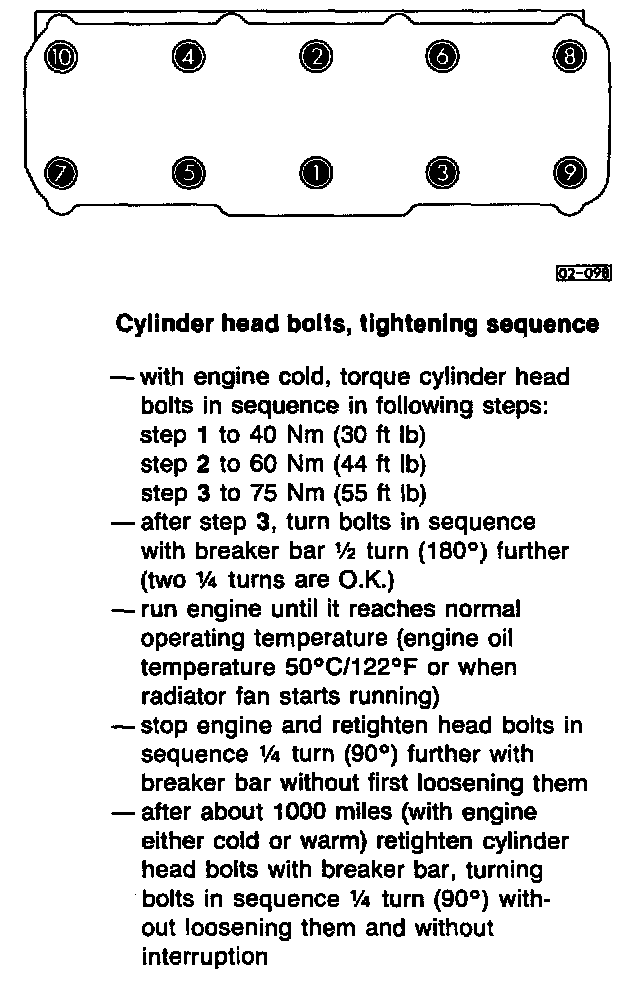

Cylinder Head Torque Specifications:
