EGR Valve, Checking

EGR valve, checking

Work sequence

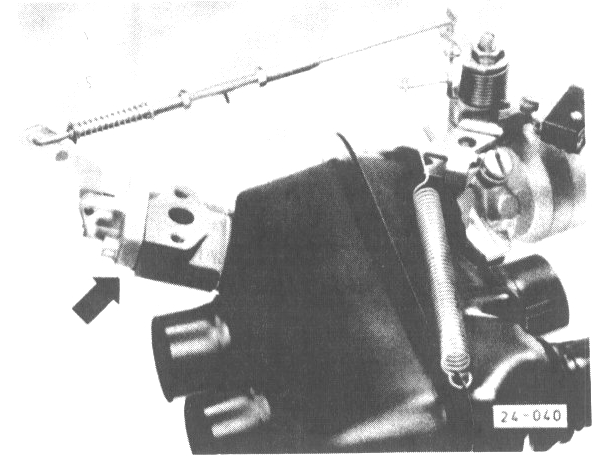

Note: EGR valve (arrow) is operated mechanically by throttle valve lever

Checking in Idle speed position

- run engine at idle
- check pipe to EGR valve
pipe should not warm up

Checking In full throttle position

- disconnect rod for EGR valve
- run engine at idle
- push lever on EGR valve to full throttle position
- check pipe to EGR valve
pipe should not warm up
