Heater/Ventilation System Components

Heater/Ventilation system

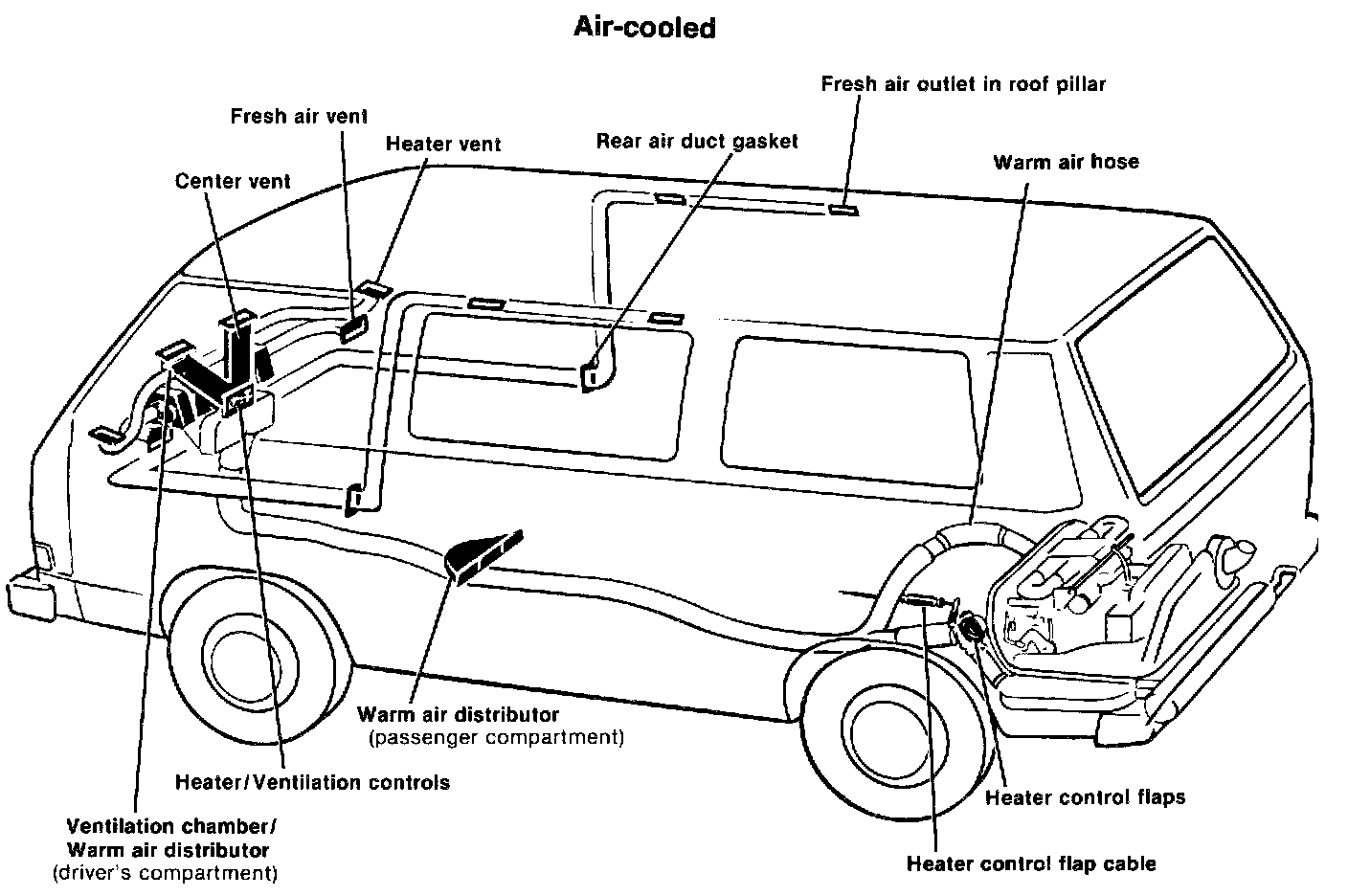

System Components






Procedures

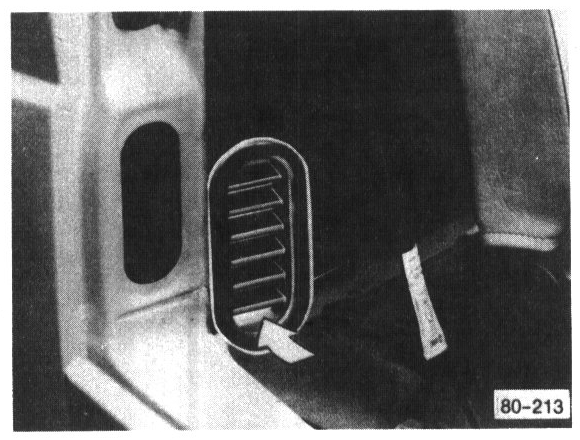

Fig. 1 Rear air duct gasket, installing
- install gasket with louvers pointed down (arrow)

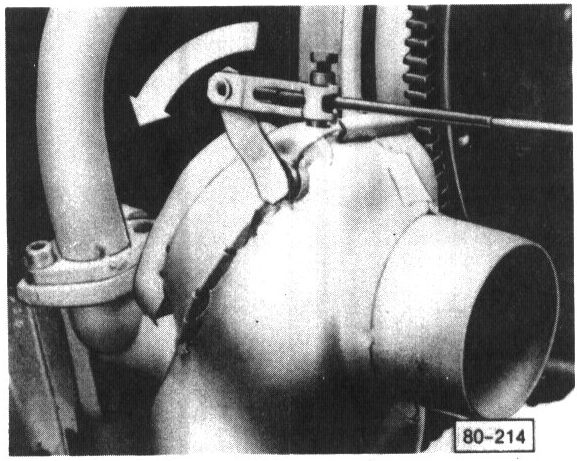

Fig. 2 Heater control flaps, adjusting
- move center heater/ventilation control lever to left side to stop
- check that spring-loaded heater control flap is at end position (arrow)
- tighten clamping bolt on cable in end position

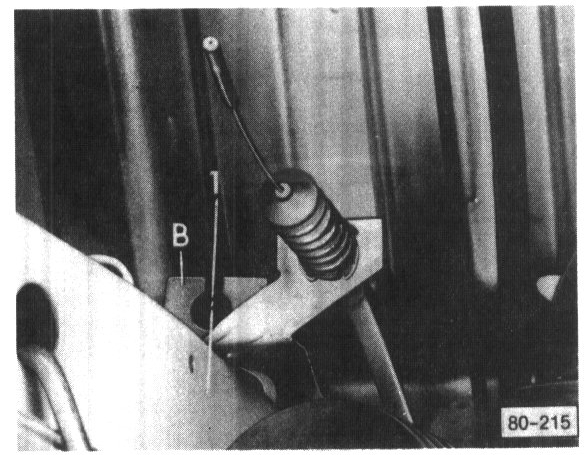

Fig. 3 Heater control flap cables, installing
- install sleeve with cable on bracket B in hole 1 (long end of cable to outside of vehicle)

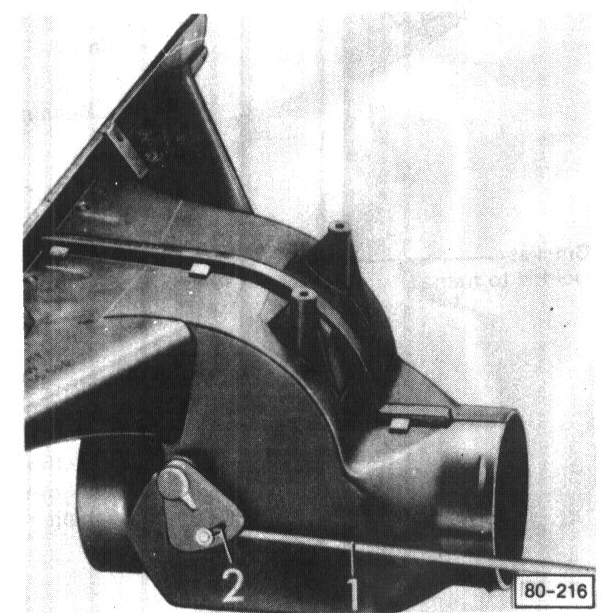

Fig. 4 Warm air distributor for passenger compartment, installing
- first, install connecting rod 1 for cable in slot 2 of lever and secure with circlip
