Engine Compartment

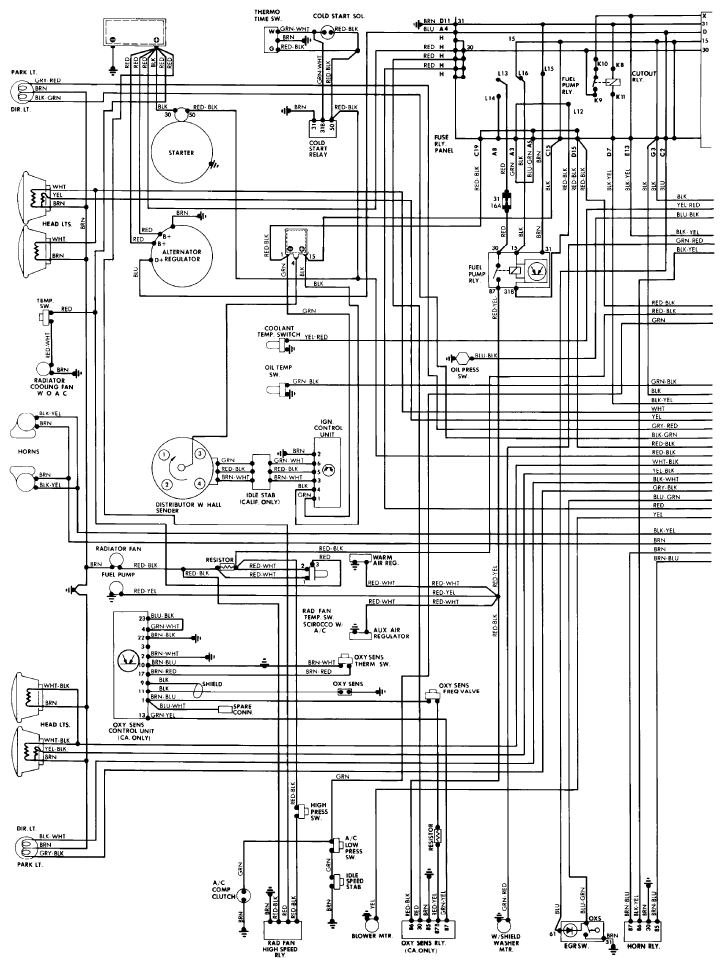

Fig 1: Wiring Diagram - Volkswagen SCIROCCO (1 of 4)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
