A/T - Technical Data

86VW2

Applies To RABBIT, JETTA, SCIROCCO,

CONVERTIBLE, PICKUP
up to Model Year 1984
Group


37
Subject

Automatic Transmission 010

Part Identifier N/A
Key Points

Technical data
^ code letters ^ number of splined plates and springs ^ application ^ gear ratios B018
Number


86-02

April 25, 1986

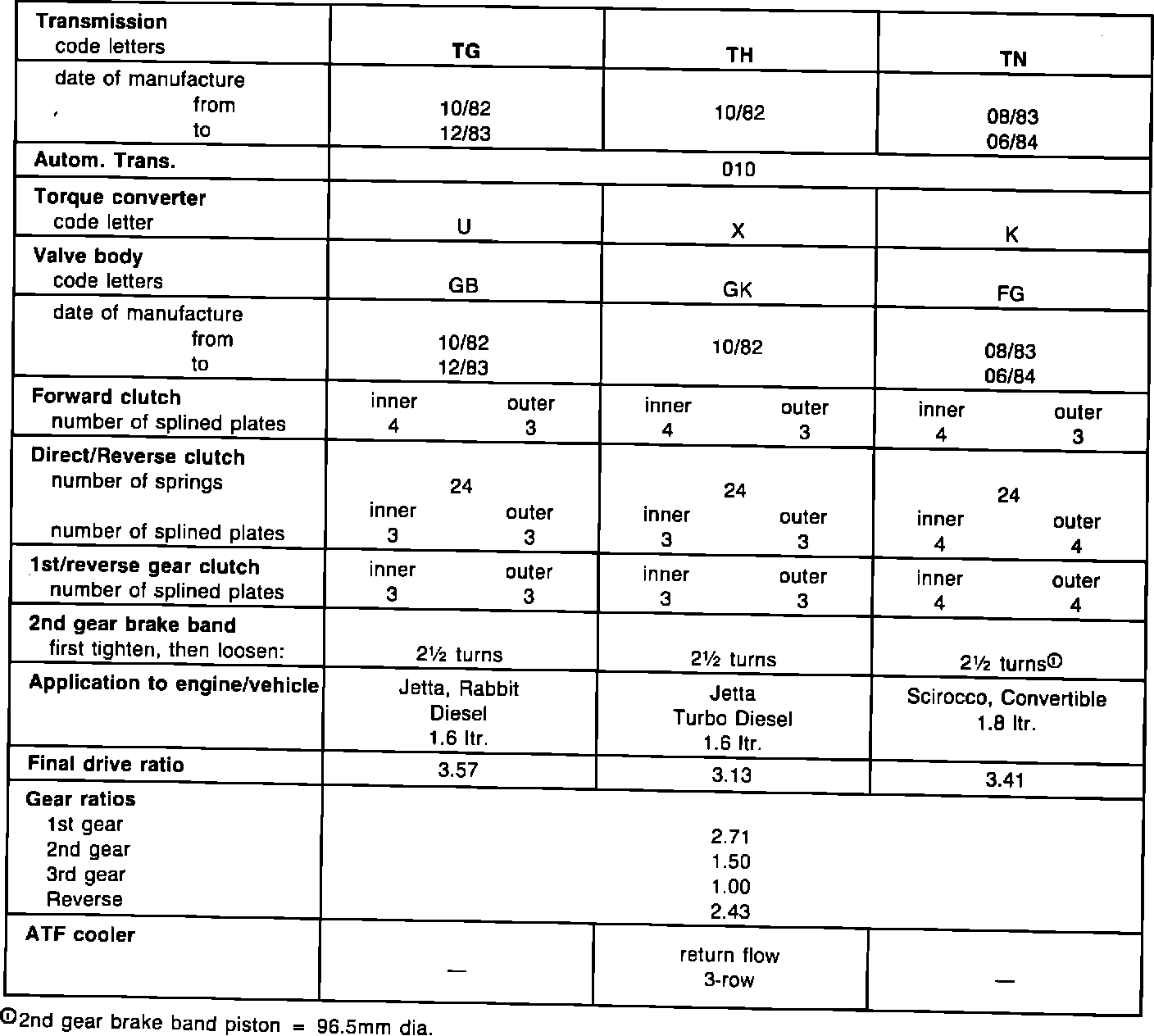

Technical Data

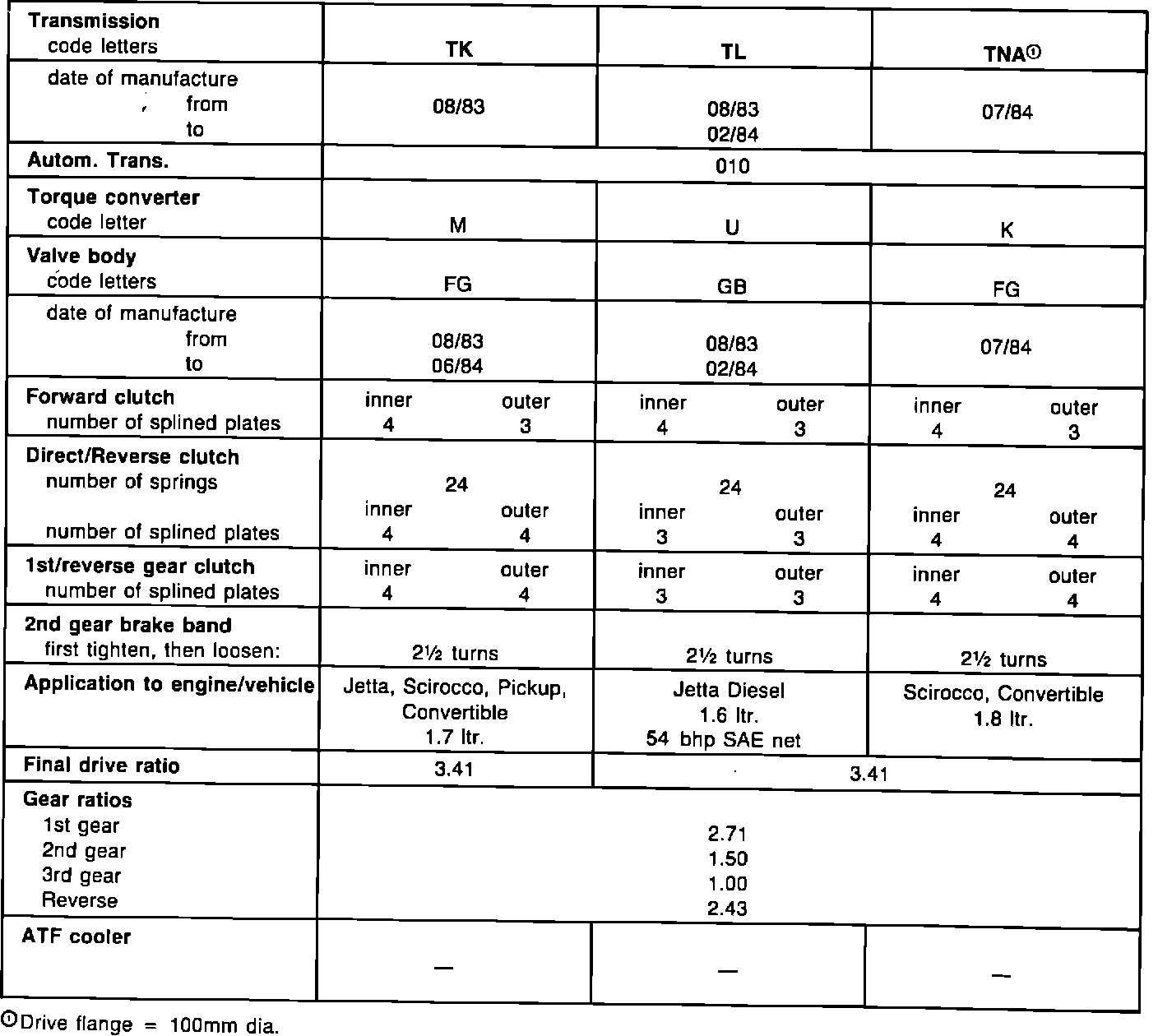

Technical Data

^ code letters
^ application
^ number of splined plates and springs
^ gear ratios

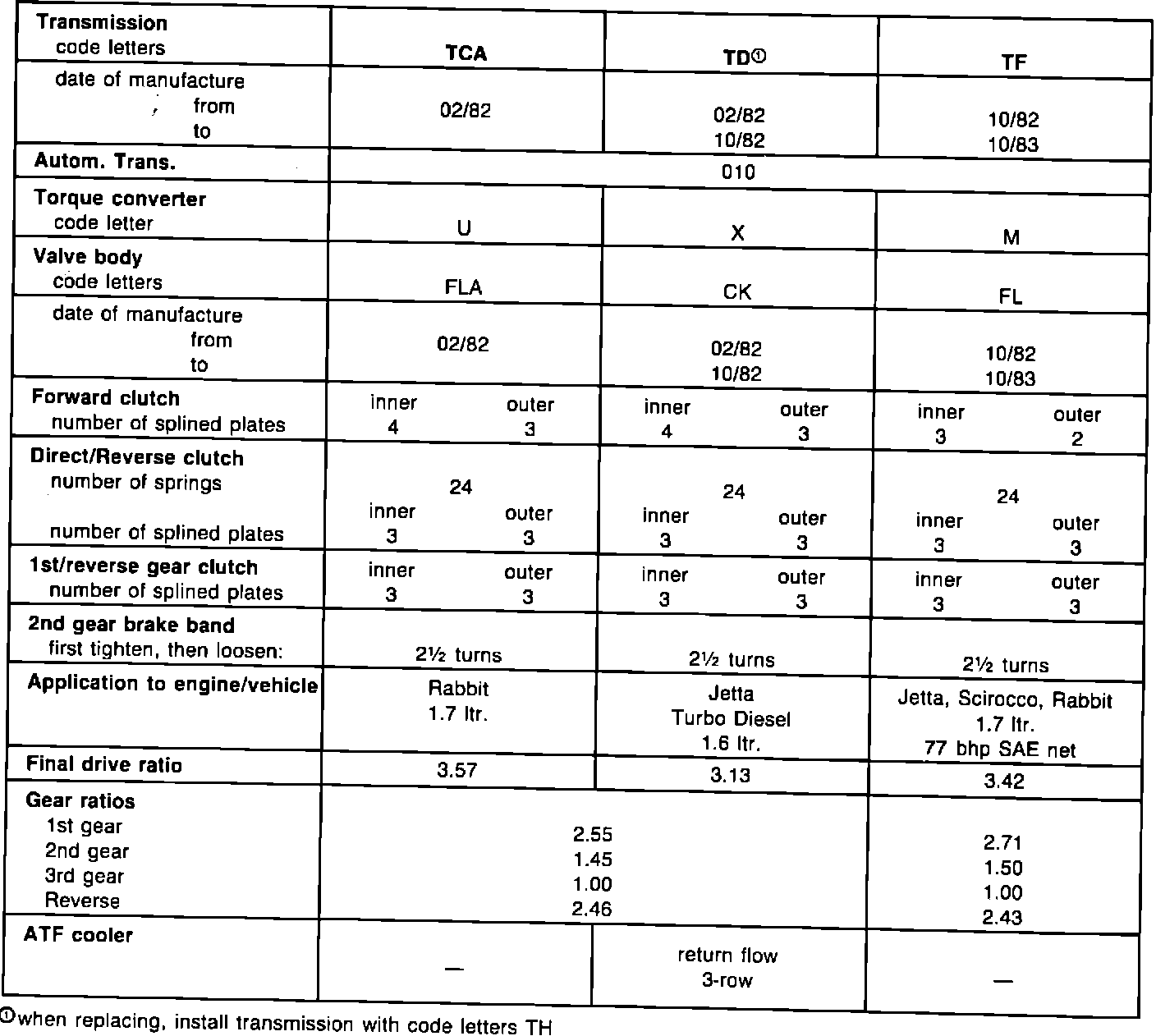

Technical Data

^ code letters
^ application
^ number of splined plates and springs
^ gear ratios

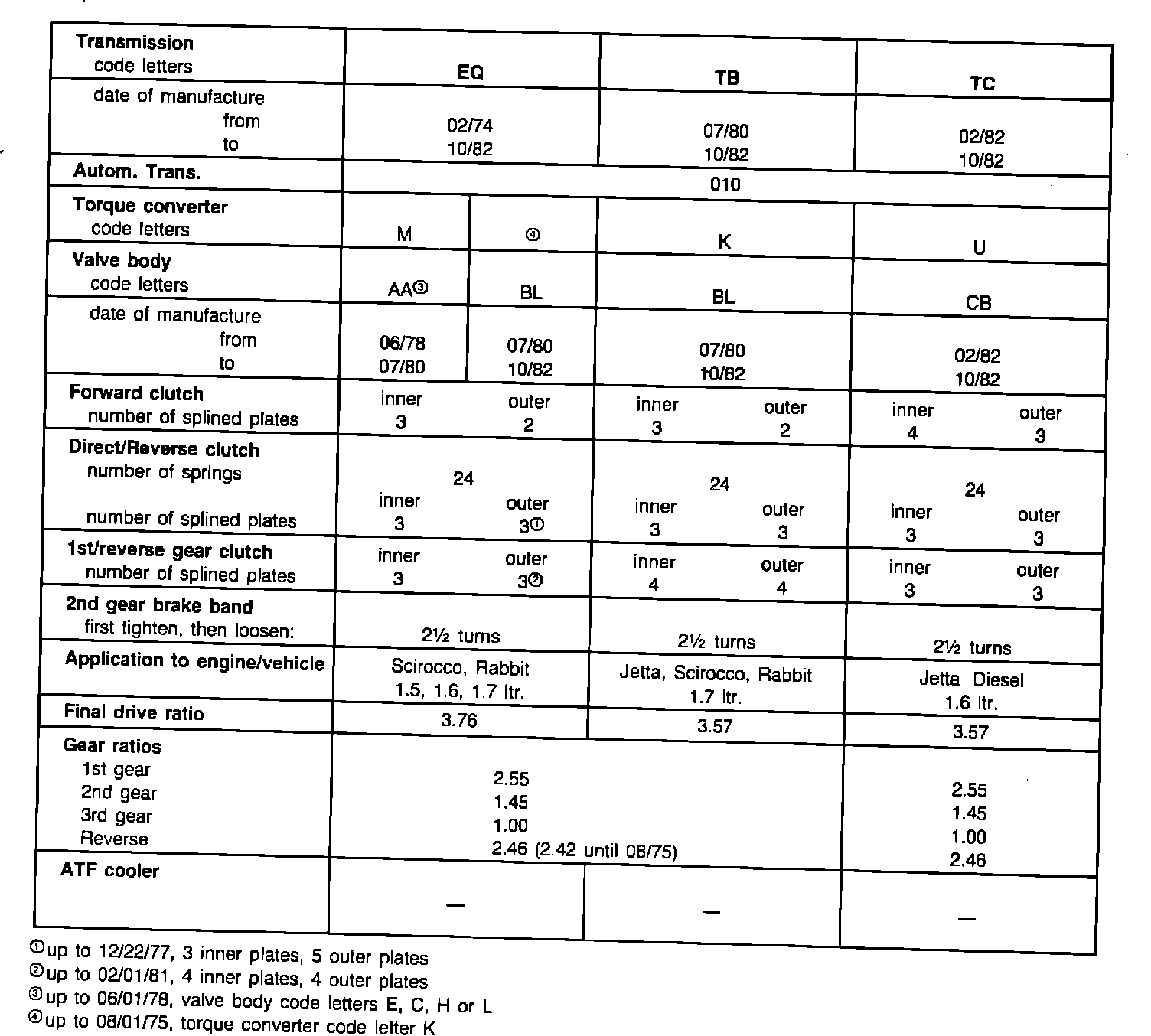

Technical Data

^ code letters
^ application
^ number of splined plates and springs
^ gear ratios
