Rabbit/Scirocco/Cabriolet

Manual Transmission Specifications

Four Speed Manual Transmission Specifications:





Final Drive Specifications:





Designations And Specifications:





Five Speed Transmissions:





Four Speed Gear Ratio Specifications:

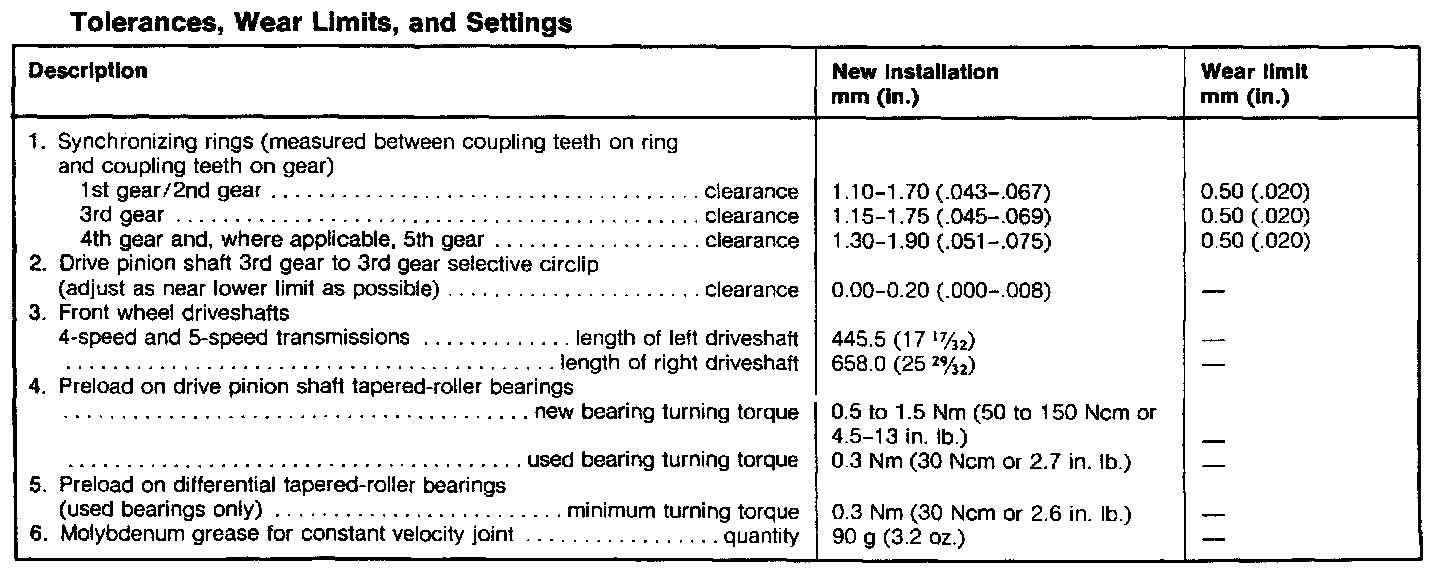

Tolerance And Wear Limit Specifications:
