Transmission Specifications and Clearances


AUTOMATIC TRANSMISSION

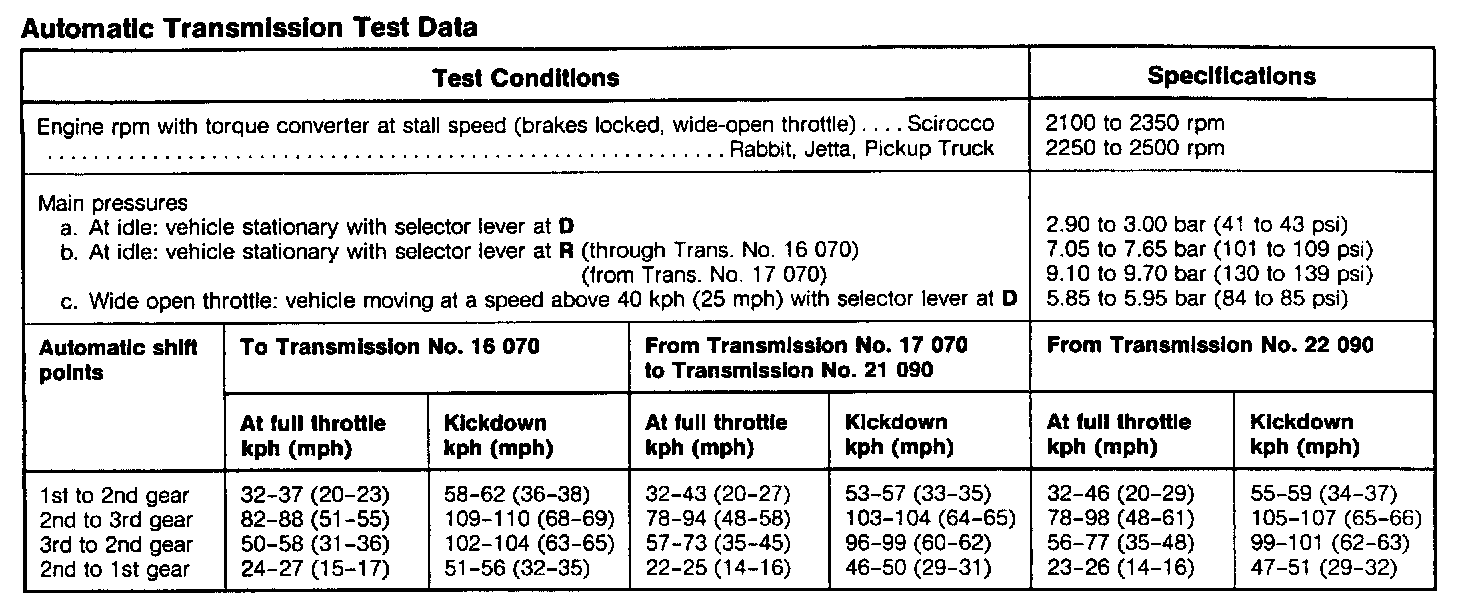

Automatic Transmission Specifications:

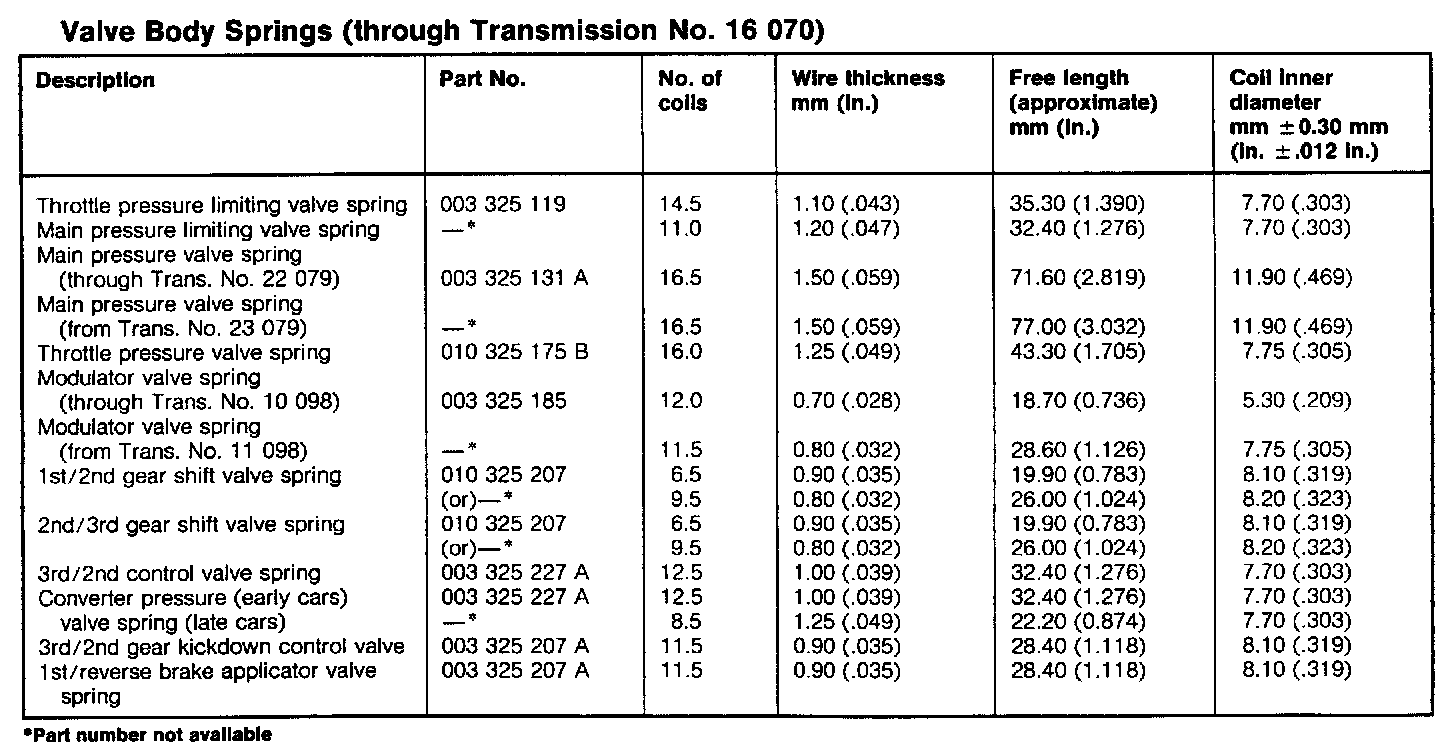

Valve Body Spring Specifications:





CAUTION - Although several springs used In the valve body are identical when new, used springs should not be interchanged.

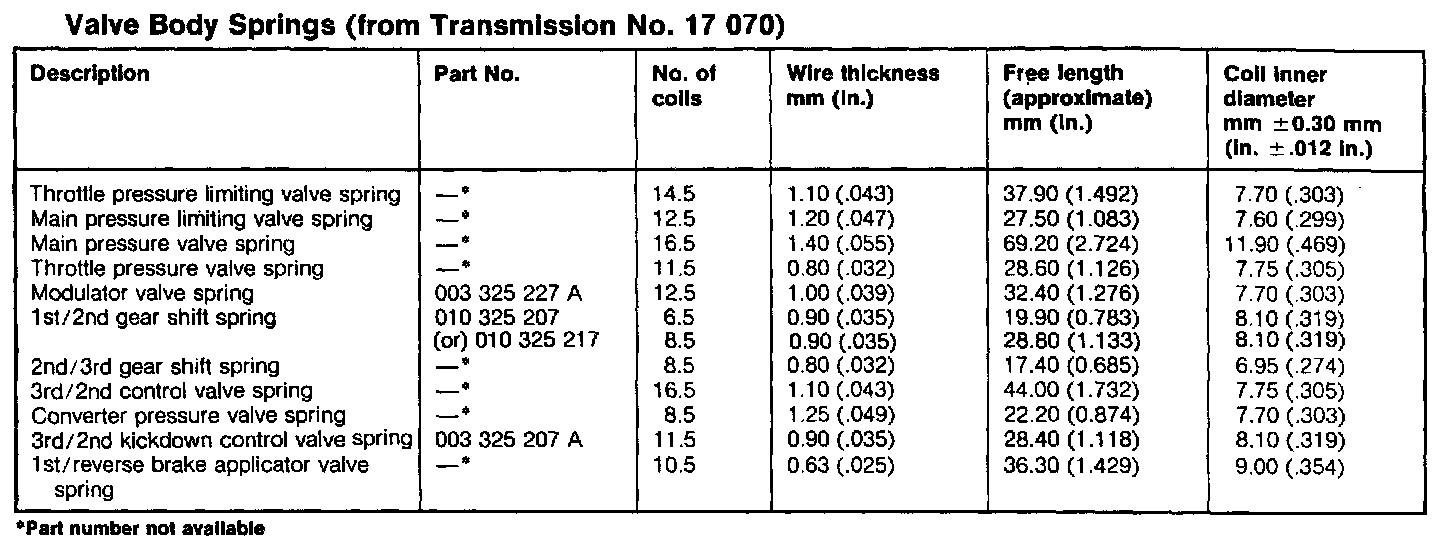

Valve Body Springs:





Final Drive Specifications:





Gear Ratio Specifications:
