Relay Box: Locations

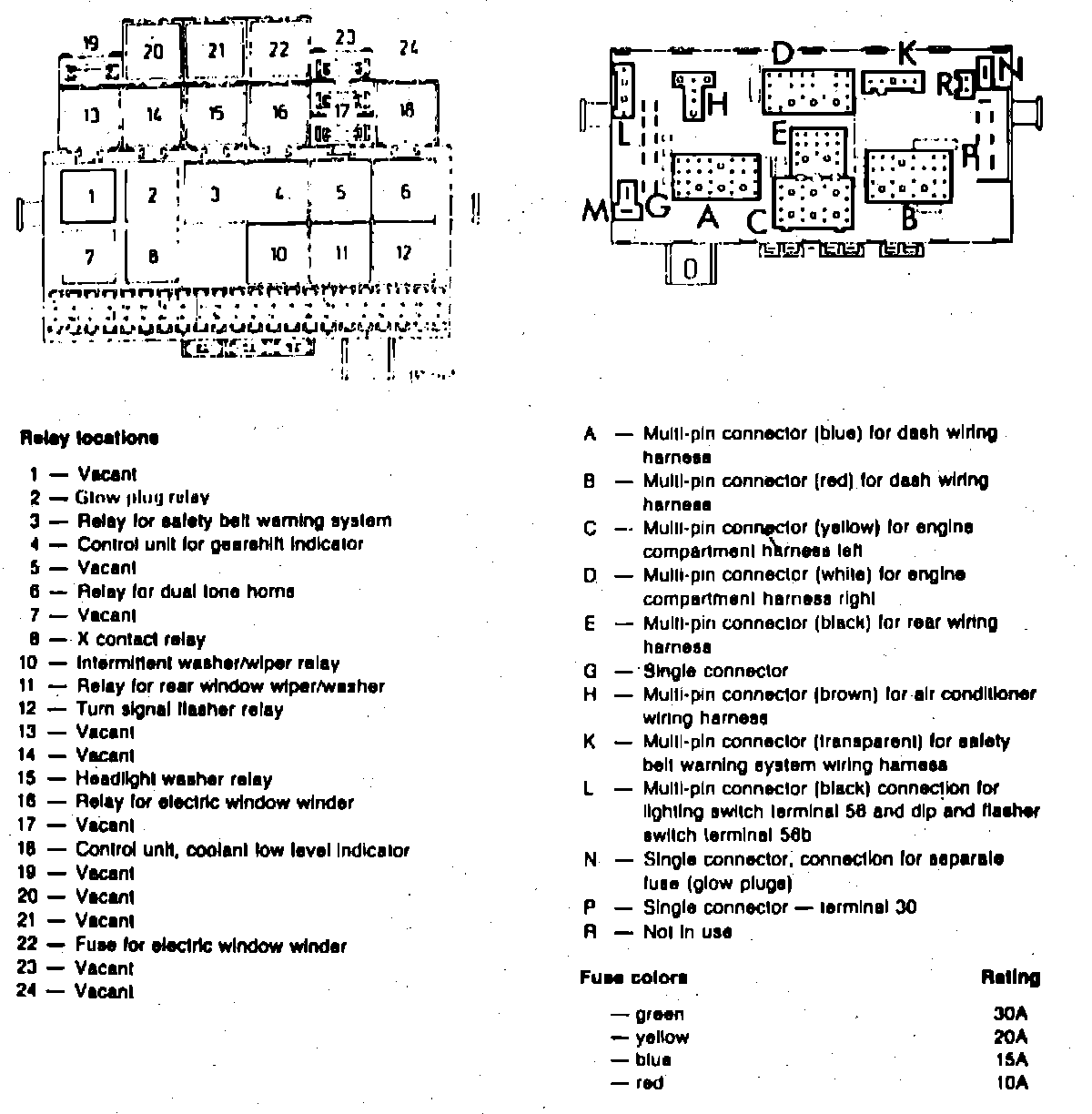

Fuse & Relay Panel.:
Under LH Side Of Dash Panel
Applicable to: 1982-86 Quantum W/Turbo Diesel Engine
