Engine Torque Specifications



Engine Torque Specifications

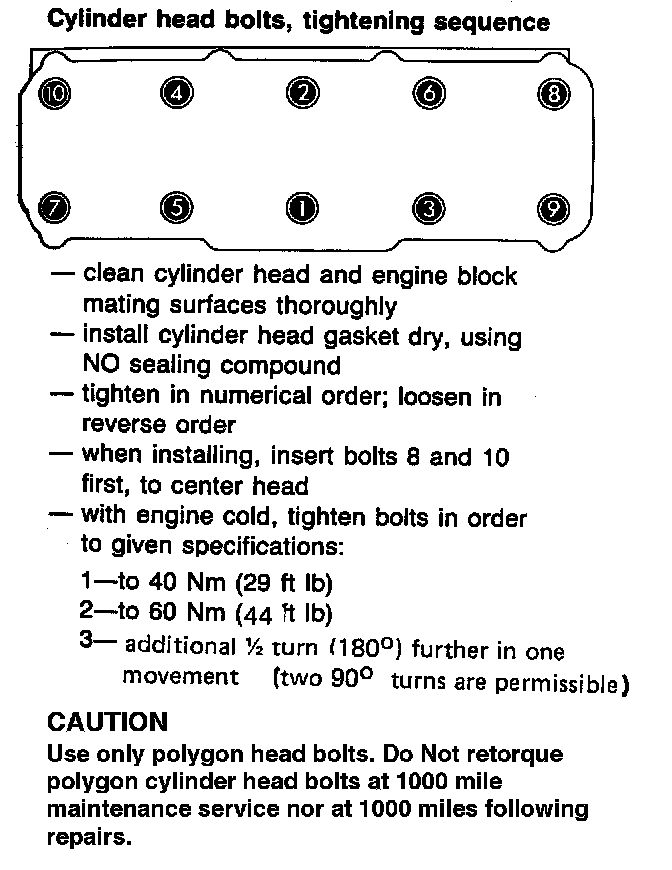

Cylinder Head Bolt Specifications:





Connecting Rod Bolt Specifications:





Torque Specifications:




Turbo Diesel
