Front Compartment & Fuse Block

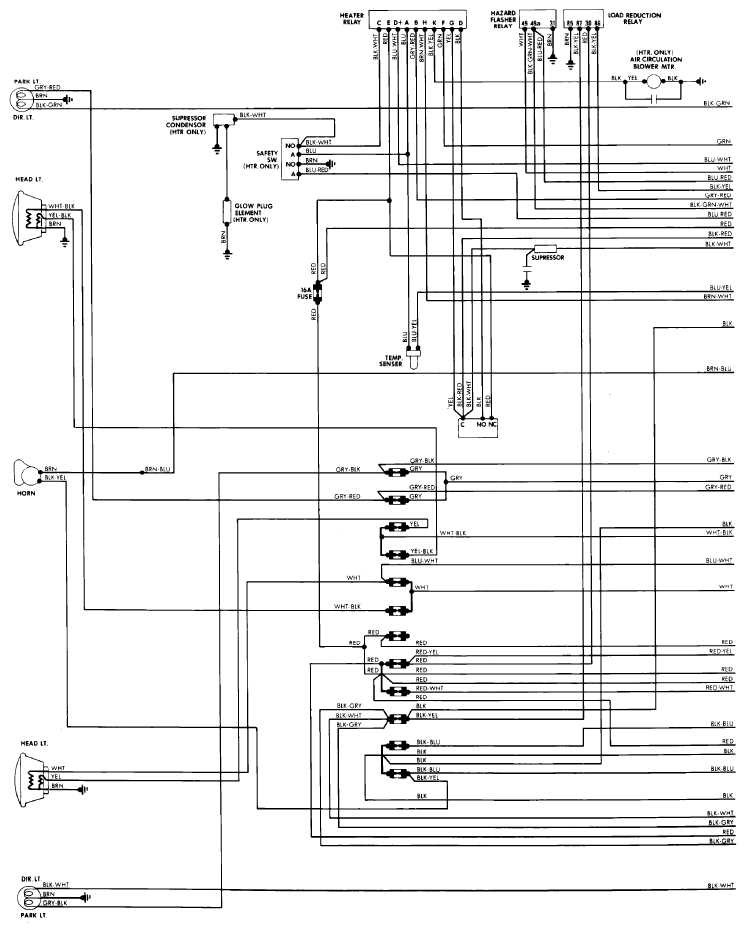

Fig 1: Wiring Diagram - Vanagon (1 of 4)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
