VOLKSWAGEN Vacuum Diagrams

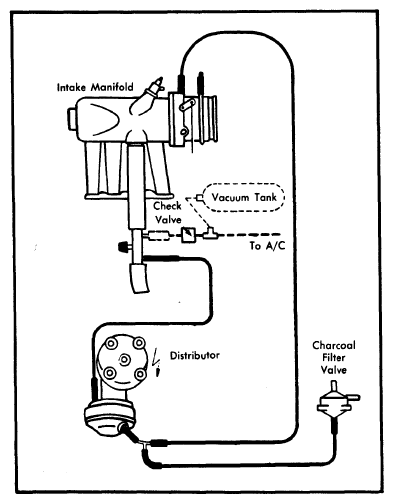

Fig 1: Volkswagen Vacuum Diagram (Dasher, Jetta, Rabbit & Scirocco)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

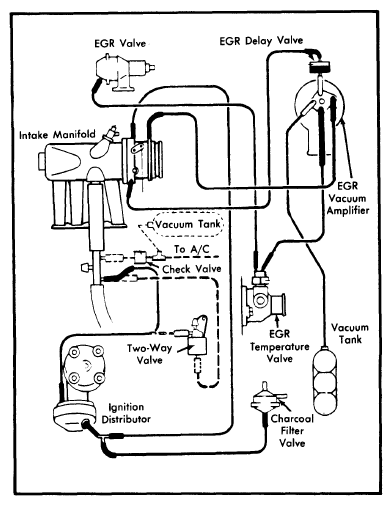

Fig 2: Volkswagen Vacuum Diagram (Rabbit Pickup)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
