Solenoid Pull-In Coil

Connect jumper wires between a 12 volt battery and the solenoid as shown in Fig 1. Armature should pull in suddenly and return when electrical connection is broken.

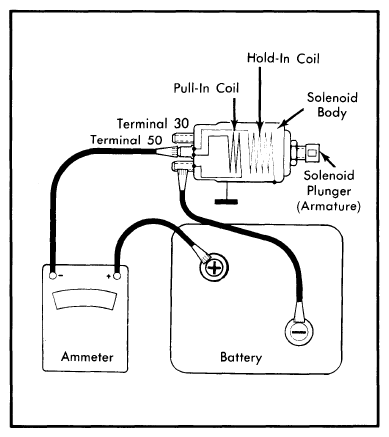

Fig 1: Typical Connections for Pull-In Test
