Rear Wiper Motor: Installation

Check crank arm alignment by running motor and allowing it to park. Install crank arm in correct position. See  Fig 2  . Reverse removal procedure to complete installation.

Fig 1: Aligning Front Motor Crank Arm During Installation. Motor Must Be in Park Position.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 2: Aligning Rear Motor Crank Arm During Installation. Motor Must Be in Park Position.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

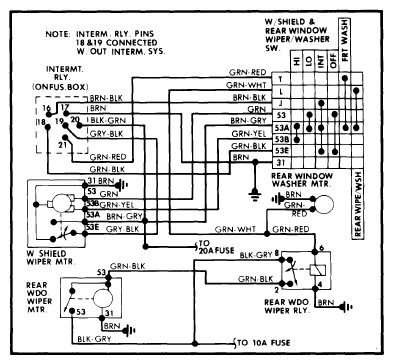

Fig 3: Dasher, Jetta & Rabbit Convertible Wiper System Wiring Diagram

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

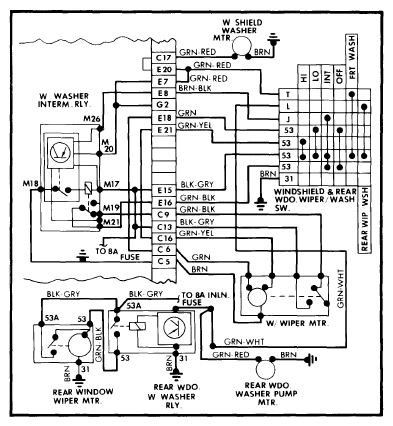

Fig 4: Rabbit & Rabbit Pickup Wiper System Wiring Diagram

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

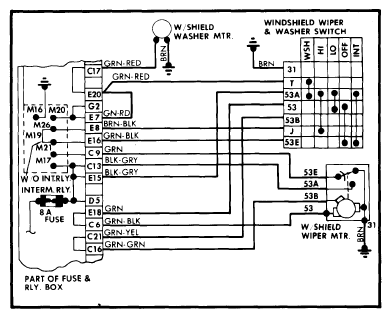

Fig 5: Scirocco Wiper System Wiring Diagram

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

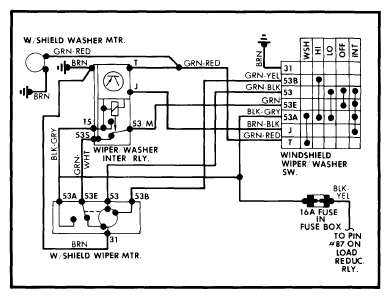

Fig 6: Vanagon Wiper System Wiring Diagram

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
