Repair and Diagnosis: Transmission: Clutch: Clutches: Description

Clutch is single plate dry disc type, using a diaphragm type pressure plate and a pre-lubricated clutch release bearing. Clutch is cable actuated.

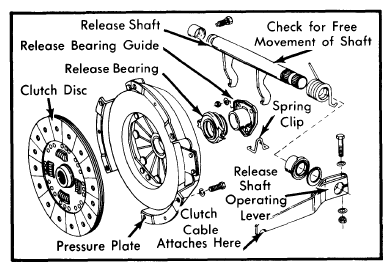

Fig 1: Exploded View of Clutch Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
