Rabbit Base, 2D Hatchback, Eng CD FX, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Wiring Diagrams
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagrams: Wiring Diagram

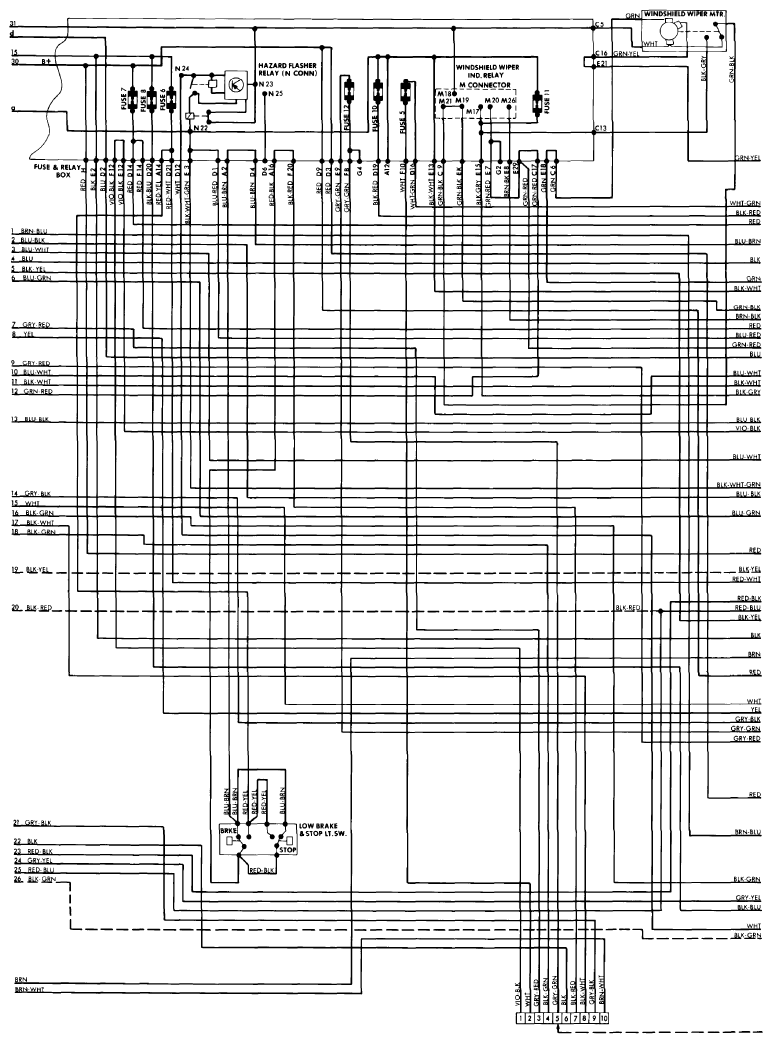

Fig 1: Wiring Diagram - Fox, Dasher Rabbit & Scirocco (1 of 4)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

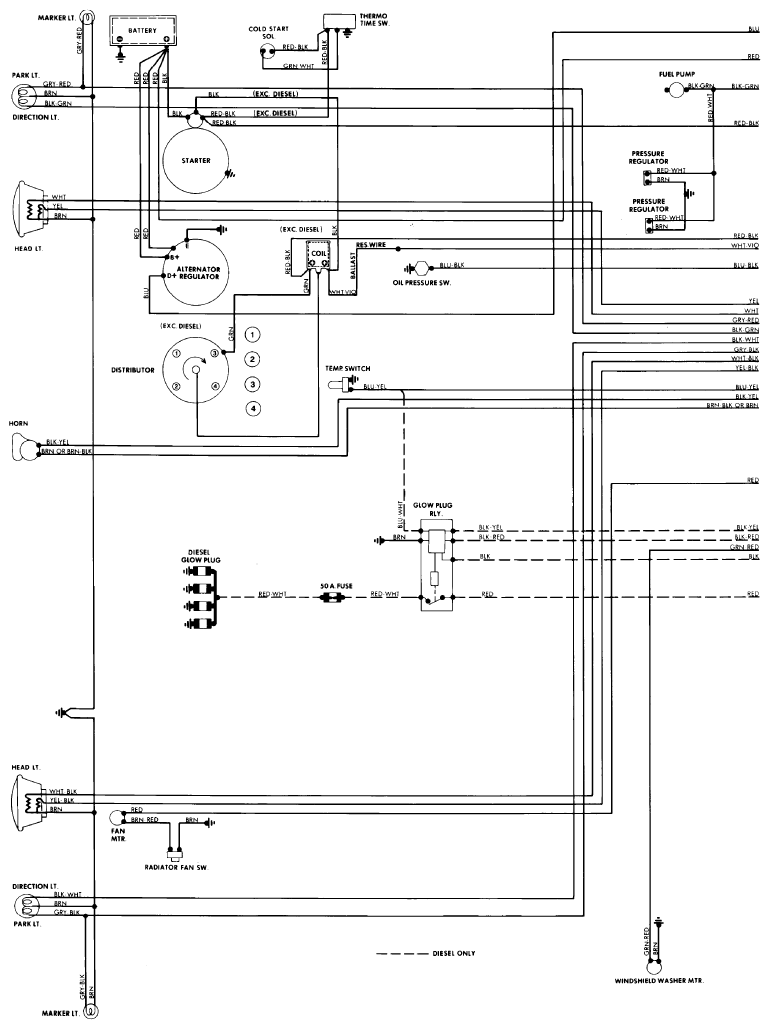

Fig 2: Wiring Diagram - Fox, Dasher Rabbit & Scirocco (2 of 4)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

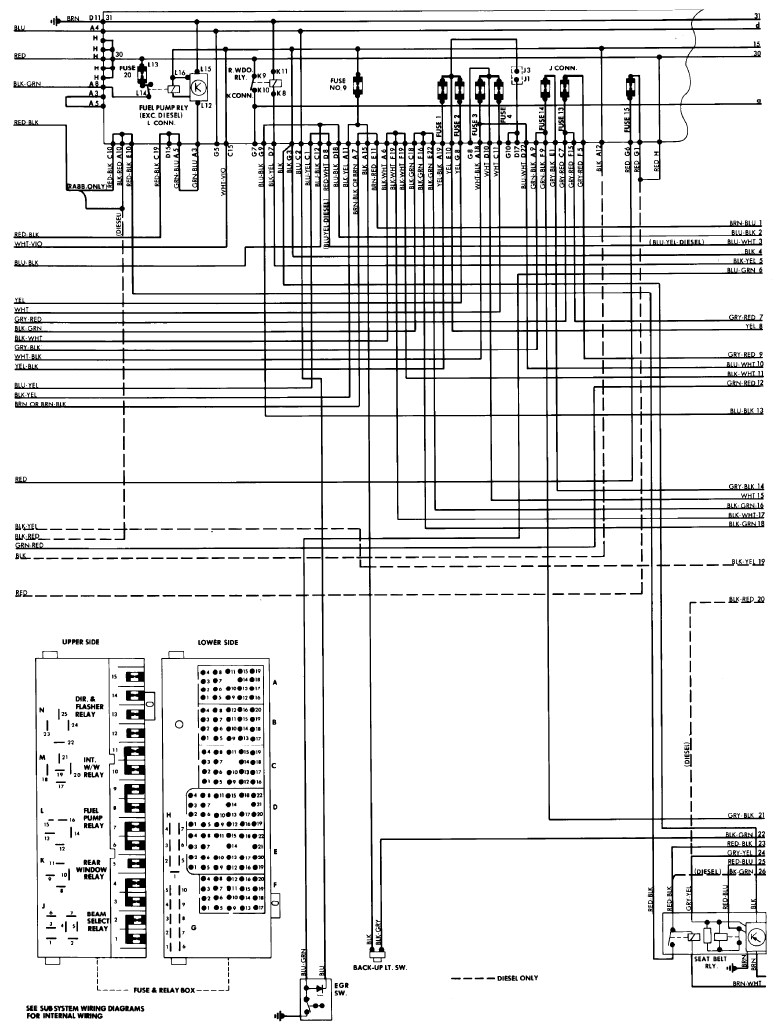

Fig 3: Wiring Diagram - Fox, Dasher Rabbit & Scirocco (3 of 4)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

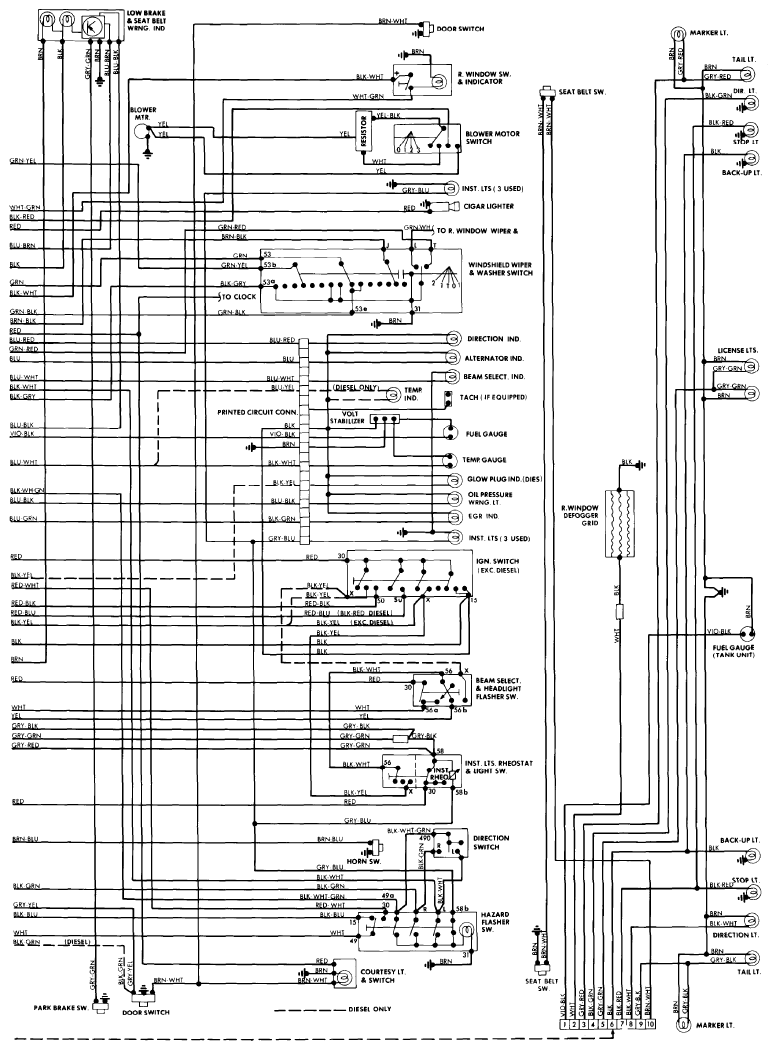

Fig 4: Wiring Diagram - Fox, Dasher Rabbit & Scirocco (4 of 4)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
