SEV MOTOROLA Alternators: Overhaul: Reassembly

Alternator is reassembled by reversing disassembly procedures while noting the following: Rotor must be pressed into drive end shield. Connect a test lamp between "B +" terminal and alternator frame, then reverse connections. Lamp should light only in one direction. After completion of reassembly, test run alternator on bench, using same procedure as described for On Car Testing.

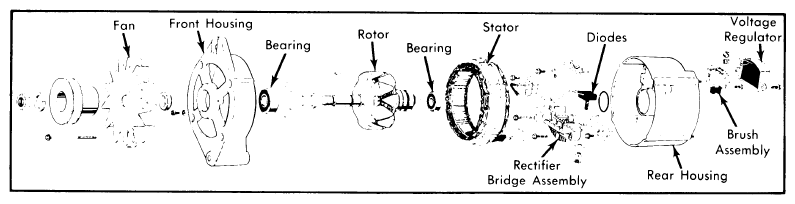

Fig 1: 4 Disassembled View of S.E.V. Motorola Alternator (Volkswagen Shown)
