Wiring Diagrams

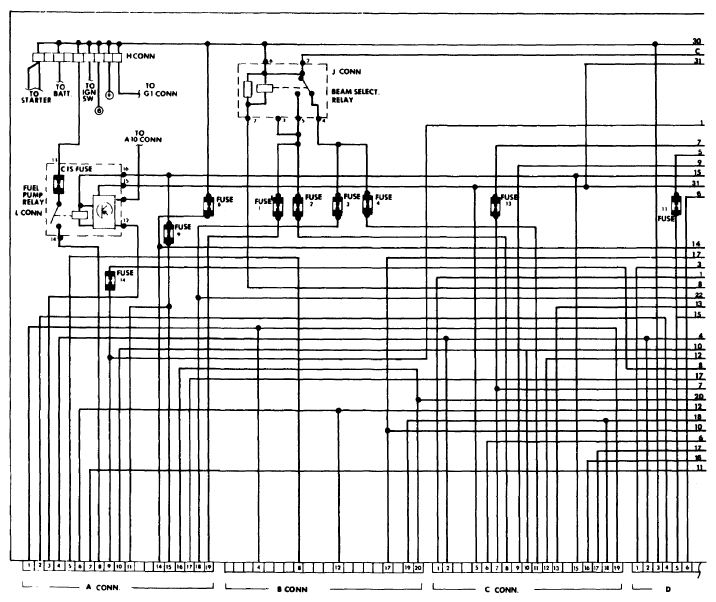

Fig 1: Fuse and Relay Control Box (Audi Fox, Volkswagen Dasher, Rabbit and Scirocco)
Courtesy of AUDI OF AMERICA, LLC

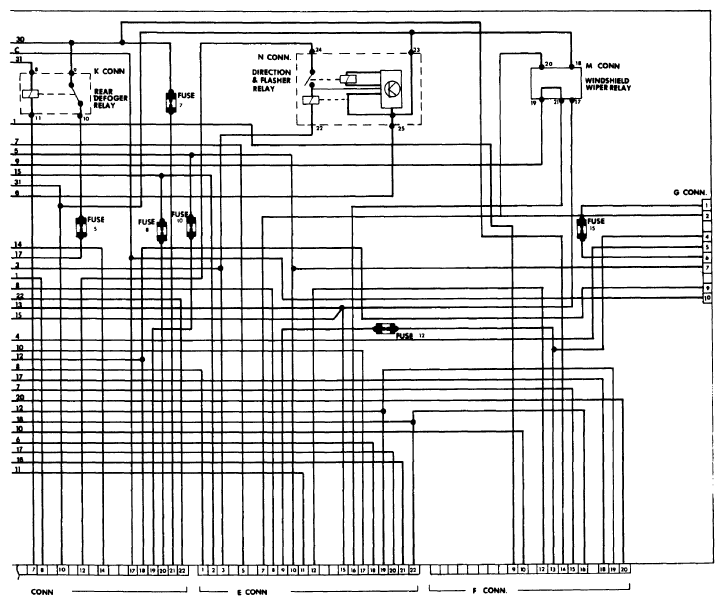

Fig 2: Fuse and Relay Control Box (Audi Fox, Volkswagen Dasher, Rabbit and Scirocco)
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
