Wiring Diagrams

Fig 1: Windshield Wiper System Wiring Diagram (Volkswagen Type 1 and Type 2)
G09303090Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

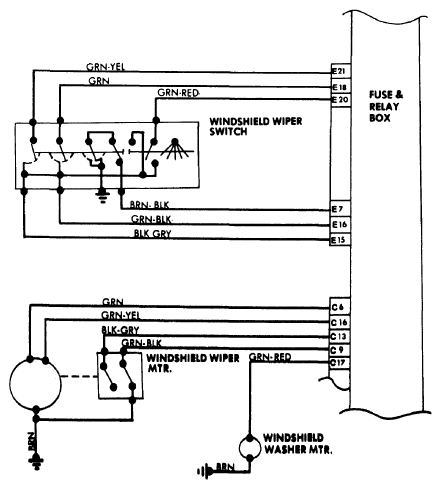

Fig 2: Windshield Wiper System Wiring Diagram (Volkswagen Rabbit and Scirocco)
G09303091Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
