Carburetor Disassembly
- Remove carburetor and unscrew the 5 top cover screws. Lift off the top cover and remove float. Unscrew float needle valve from top cover.
- Remove 3 screws in automatic choke and take off retaining ring and spacers. Take off ceramic plate, bi-metal spring, heater element, and plastic cap.
- Unscrew air correction jet with emulsion tube and idle jet. Unscrew main jet carrier with main jet and mixture screw.

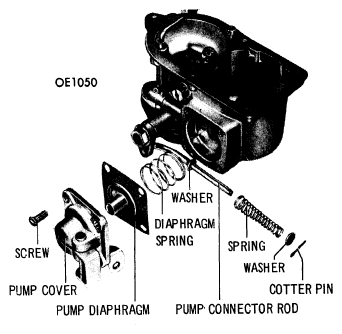

- Remove pump lever cotter pin from connector rod and remove 4 pump cover retaining screws. Take off cover, diaphragm and spring.
