Components [03/2019 - ]

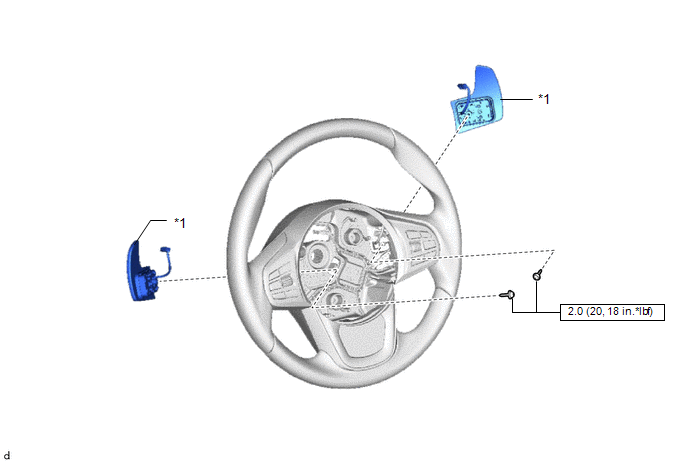

Fig 1: Shift Paddle Switch Replacement Components With Torque Specifications
GTY846967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION SHIFT SWITCH ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
