Removal [09/2022 - ]: Procedure
- REMOVE FRONT WHEEL
Refer to REMOVAL [09/2022 - ]
- REMOVE FRONT FENDER APRON TRIM PACKING D
Refer to PROCEDURE - Step 11
- REMOVE FRONT FENDER APRON TRIM PACKING C
Refer to PROCEDURE - Step 10

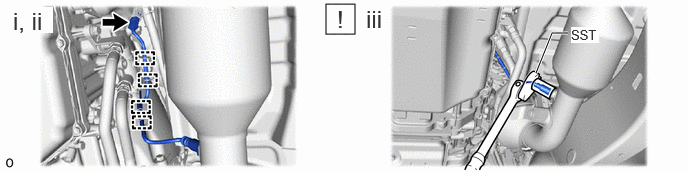

- REMOVE AIR FUEL RATIO SENSOR
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the air fuel ratio sensor connector.
- Detach the wire harness clamp.
- Using SST, remove the air fuel ratio sensor from the converter with catalyst assembly LH.

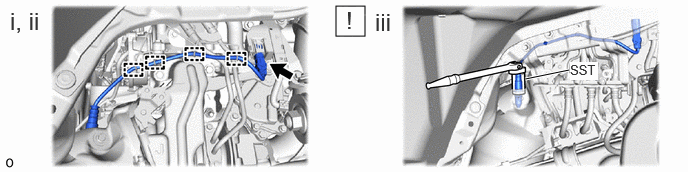

- REMOVE NO. 2 AIR FUEL RATIO SENSOR
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the No. 2 air fuel ratio sensor connector.
- Detach the 4 wire harness clamps.
- Using SST, remove the No. 2 air fuel ratio sensor from the converter with catalyst assembly RH.

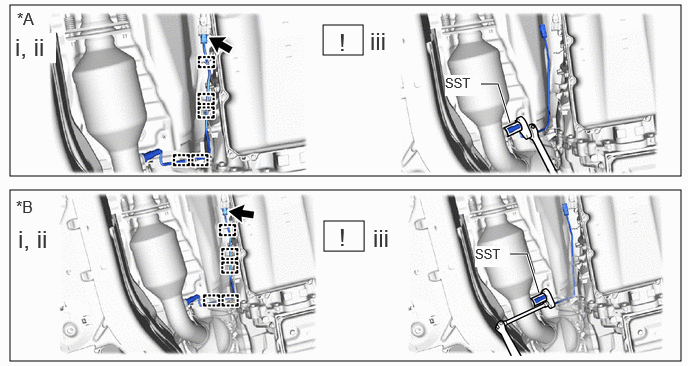

- REMOVE NO. 3 AIR FUEL RATIO SENSOR
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the No. 3 air fuel ratio sensor connector.
- Detach the 5 wire harness clamps.
- Using SST, remove the No. 3 air fuel ratio sensor from the converter with catalyst assembly LH.

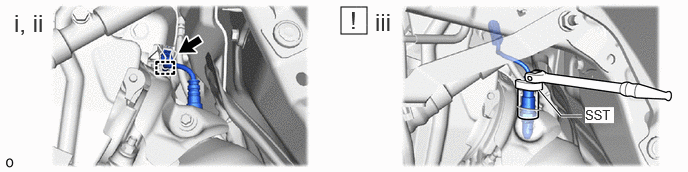

- REMOVE NO. 4 AIR FUEL RATIO SENSOR
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the No. 4 air fuel ratio sensor connector.
- Detach the 4 wire harness clamps.
- Using SST, remove the No. 4 air fuel ratio sensor from the converter with catalyst assembly RH.
