Components [06/2020 - ]

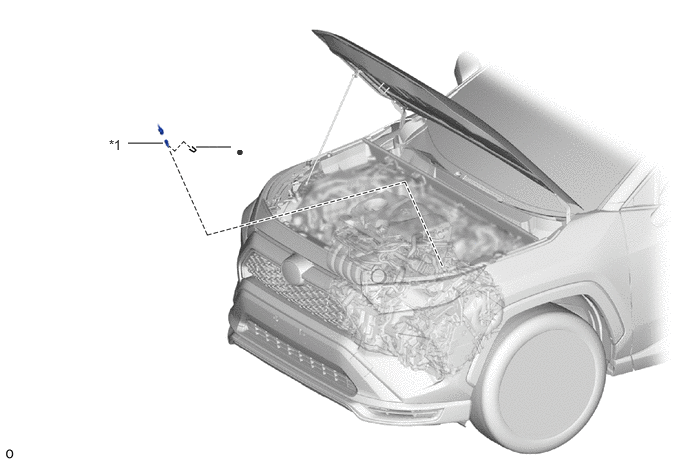

Fig 1: Engine Coolant Temperature Sensor Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
ENGINE COOLANT TEMPERATURE SENSOR
-
-
•
Non-reusable part
-
-
