Caution / Notice / Hint

COMPONENTS (INSTALLATION)

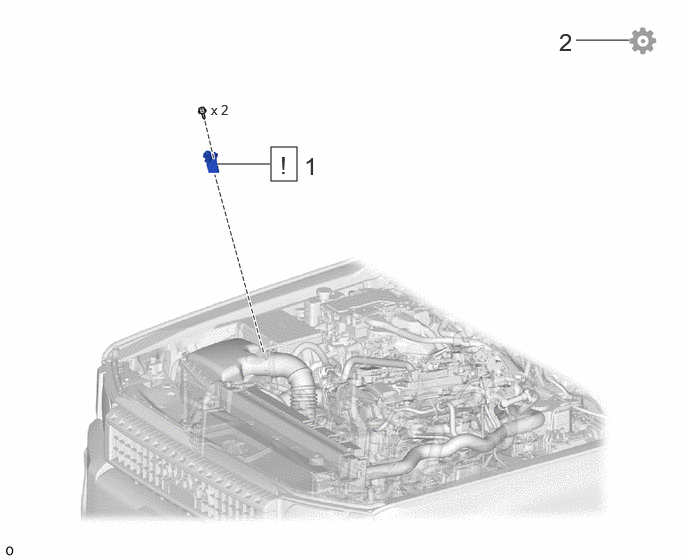

Fig 1: Mass Air Flow Meter Installation Components
GTY1220791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 INTAKE MASS AIR FLOW METER SUB-ASSEMBLY 22204 See step  1 - -
2 PERFORM INITIALIZATION - - - See step  2
