Components [12/2019 - 11/2023]

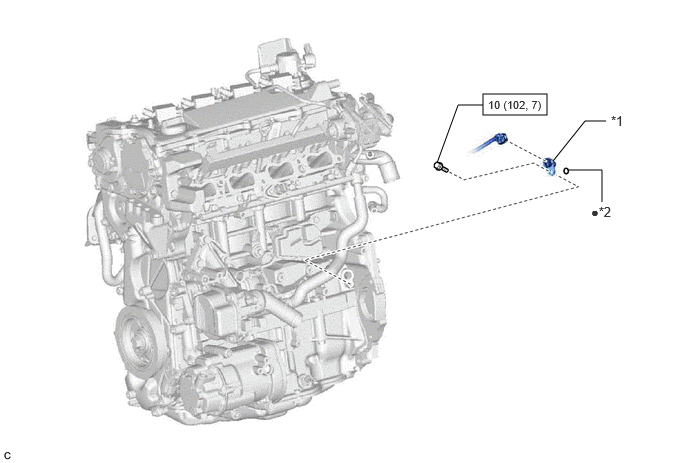

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications [12/2019 - 11/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
CRANKSHAFT POSITION SENSOR
*2
O-RING
N.m (kgf/cm, ft.lbf): Specified torque
•
Non-reusable part
