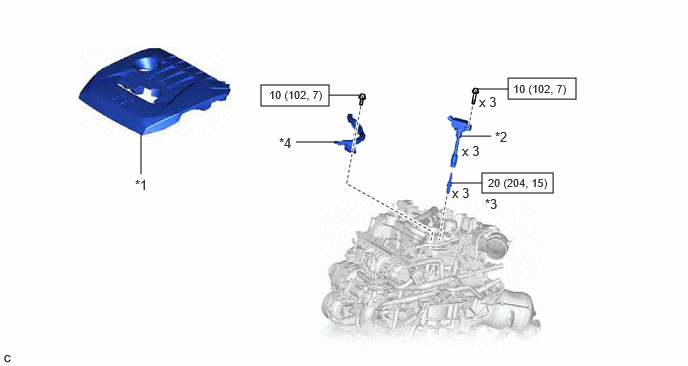

Components [09/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*2 |
IGNITION COIL ASSEMBLY |
| *3 |
SPARK PLUG |
*4 |
ENGINE WIRE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
