Removal [12/2024 - ]: Procedure
- REMOVE FRONT FENDER LINER RH
Refer to DISASSEMBLY [12/2024 - ]
- REMOVE ECO RUN VEHICLE CONVERTER ASSEMBLY
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

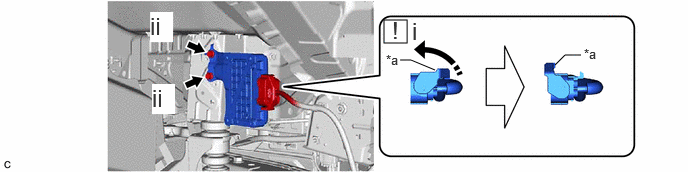

| *a |
Lock Lever |
- |
- |
 |
Pull Up the Lock Lever |
- |
- |
- Move the lock lever as shown in the illustration and disconnect the eco run vehicle converter assembly connector.
- Remove the 2 bolts and eco run vehicle converter assembly.
