Caution / Notice / Hint
NOTE:
- After replacing the ECM, make sure to perform vehicle identification number (vin) registration, ECU configuration and update ECU security key.
- After performing the vehicle identification number (vin) registration, ECU configuration procedure and update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.

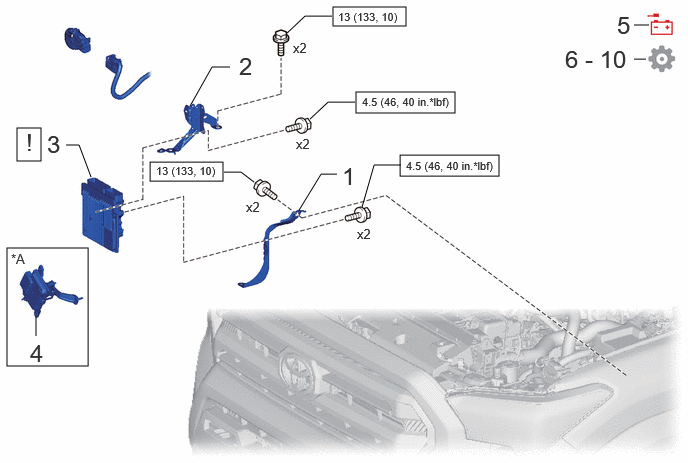

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | ECM BRACKET | 89667 | - | - | - |
| 2 | NO. 2 ECM BRACKET | 89668 | - | - | - |
| 3 | ECM | 89661 | See step 3 | - | - |
| 4 | TCM | 89530C | - | - | - |
| 5 | CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 6 | VEHICLE IDENTIFICATION NUMBER (VIN) REGISTRATION | - | - | - | See step 6 |
| 7 | ECU CONFIGURATION | - | - | - | See step 7 |
| 8 | UPDATE ECU SECURITY KEY | - | - | - | See step 8 |
| 9 | PERFORM INITIALIZATION | - | - | - | See step 9 |
| 10 | INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL | - | - | - | Refer to INSTALLATION [12/2023 - 03/2024] |
| *A | for Automatic Transmission | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
