Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during throttle body with motor assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Throttle body with motor assembly Cleaning the deposits from the throttle body with motor assembly	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [02/2024 - ]

COMPONENTS (REMOVAL)

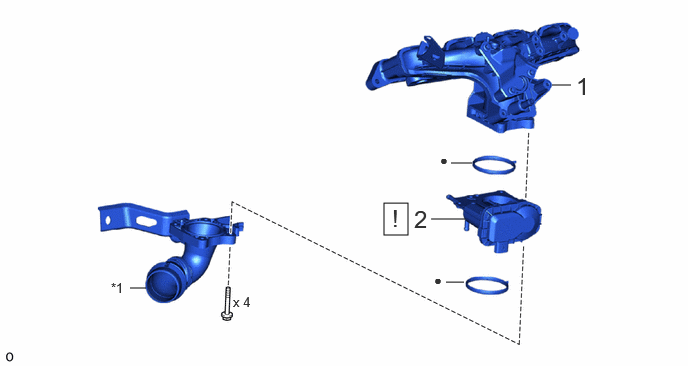

Fig 1: Throttle Body Removal Components

Procedure		Part Name Code
1	INTAKE MANIFOLD	17111	-	-	-
2	THROTTLE BODY WITH MOTOR ASSEMBLY	22030	See step 2	-	-

*1	NO. 2 AIR TUBE	-	-
•	Non-reusable part	-	-
