Engine Control System (T24A-FTS) - Service Information
>>
Throttle Body
>>
Components [10/2022 - ]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components [10/2022 - ]

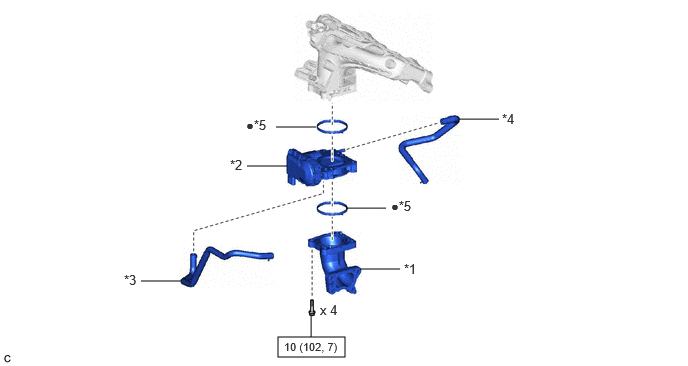

Fig 1: Throttle Body Replacement Components With Torque Specifications [10/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
NO. 2 AIR TUBE
*2
THROTTLE BODY WITH MOTOR ASSEMBLY
*3
NO. 4 WATER BY-PASS HOSE
*4
NO. 5 WATER BY-PASS HOSE
*5
THROTTLE BODY GASKET
-
-
N.m (kgf/cm, ft.lbf): Specified torque
•
Non-reusable part
