Removal [07/2020 - ]: Procedure

  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

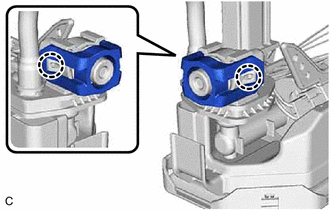

    1. GTY852083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 2 claws and remove the fuel pressure regulator holder from the fuel suction tube with pump and gauge assembly.

    2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel pressure regulator assembly from the fuel suction tube with pump and gauge assembly.

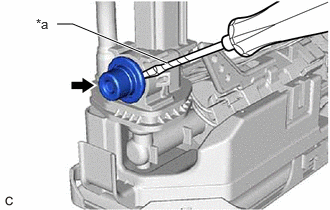

      GTY887213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:
      • Pull out the fuel pressure regulator assembly carefully because the O-rings are firmly installed between the fuel pressure regulator assembly and fuel suction tube with pump and gauge assembly.
      • Do not damage the fuel suction tube with pump and gauge assembly.
    3. Remove the 2 O-rings from the fuel pressure regulator assembly.

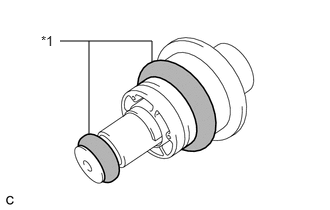

      GTY429371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
